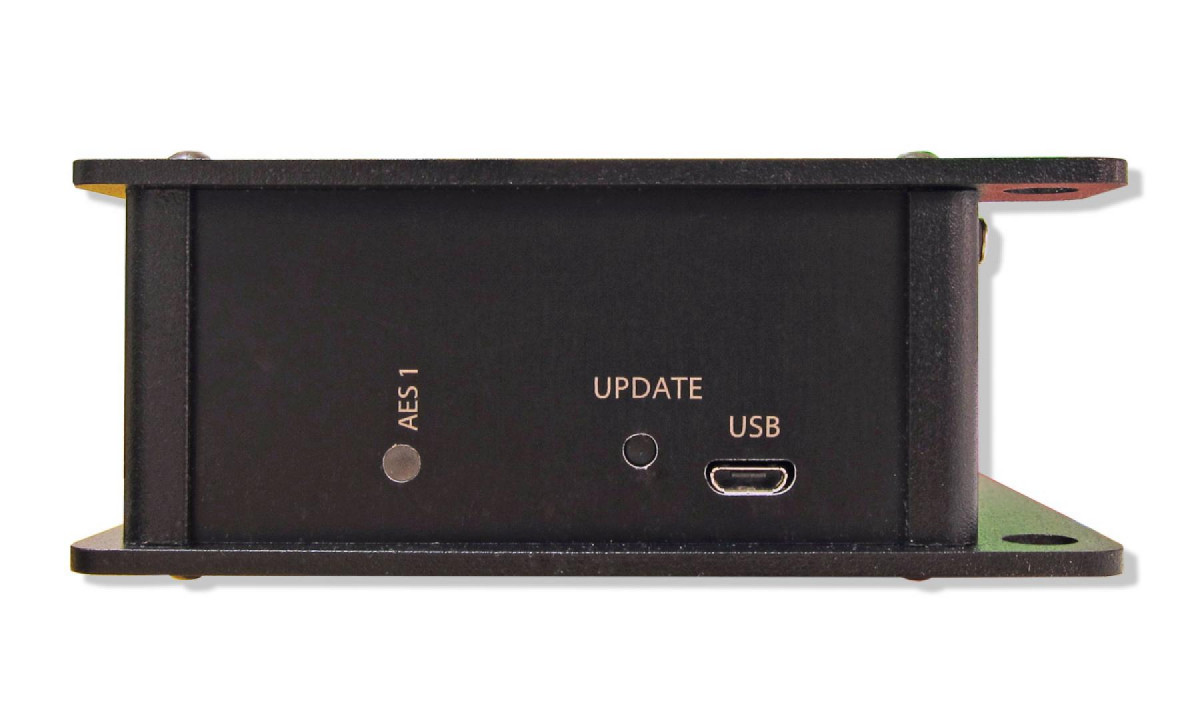

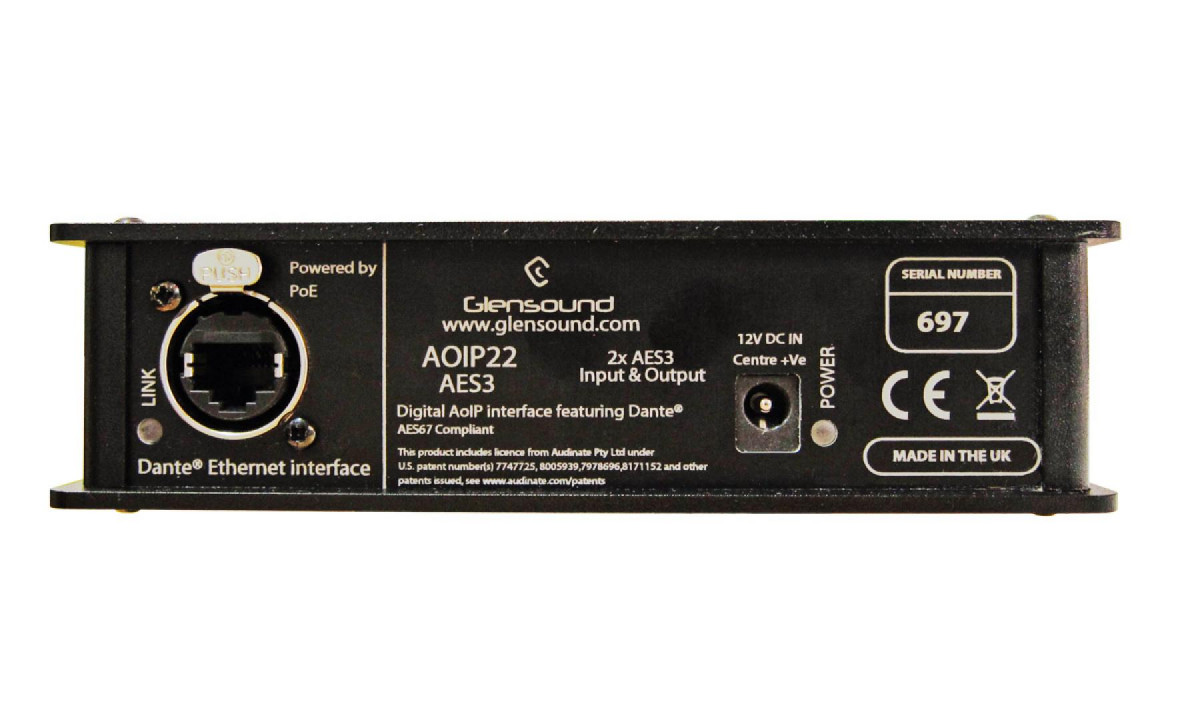

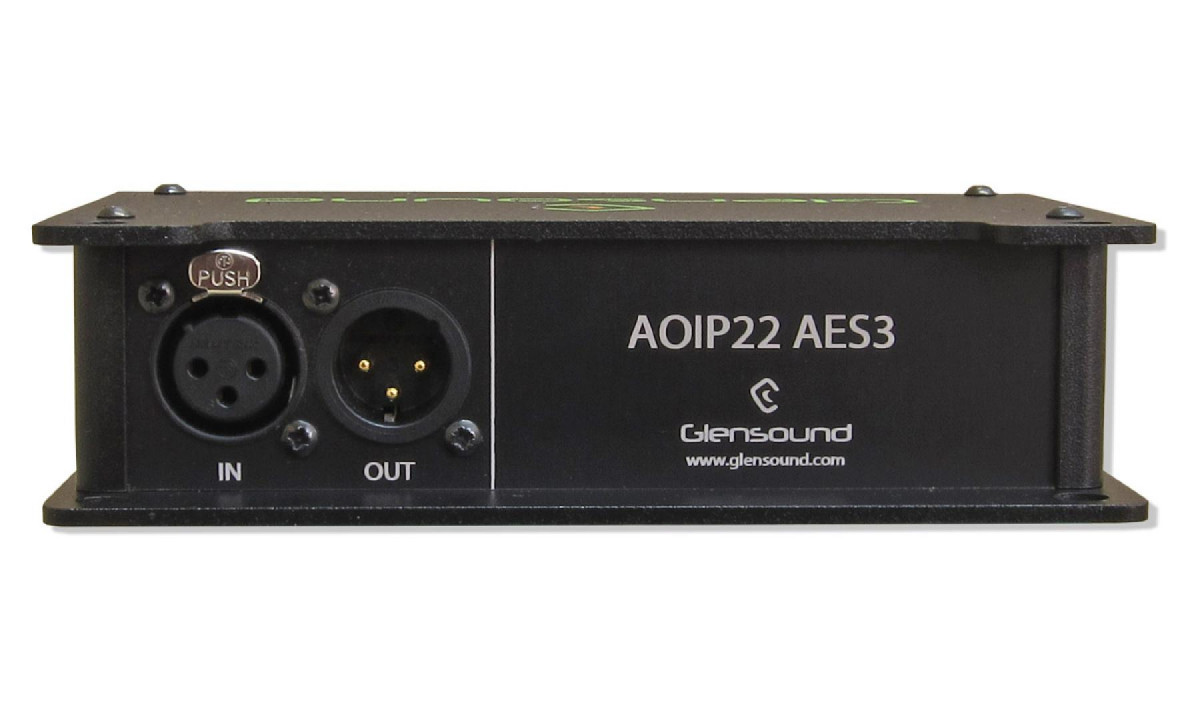

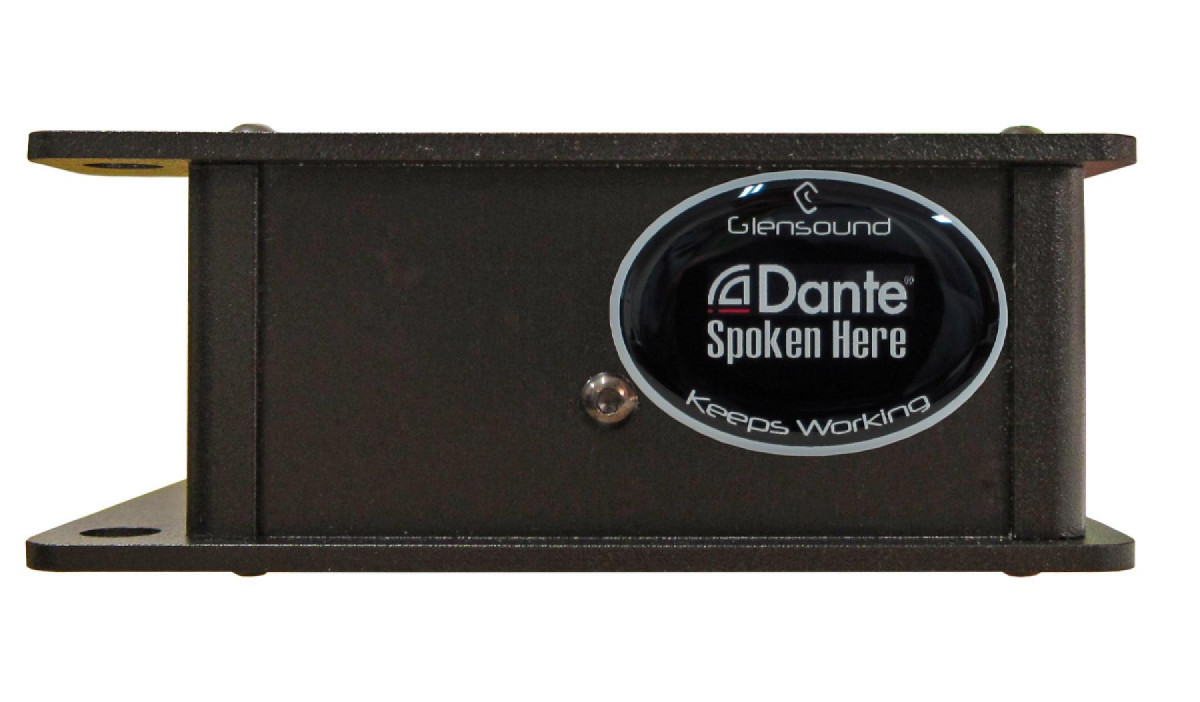

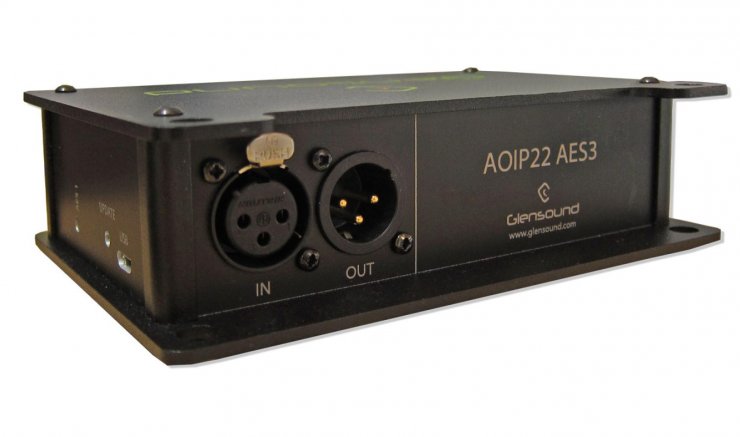

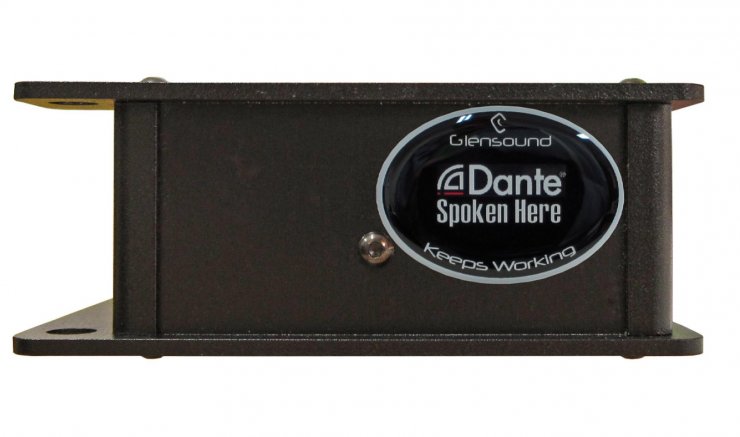

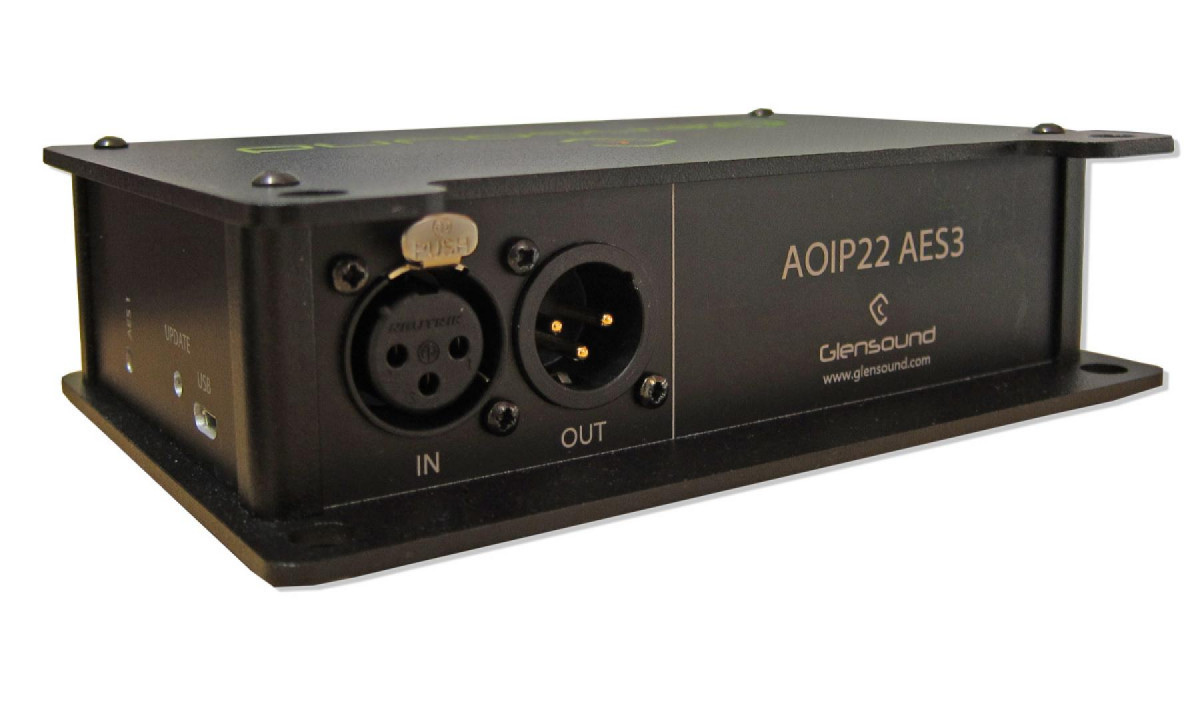

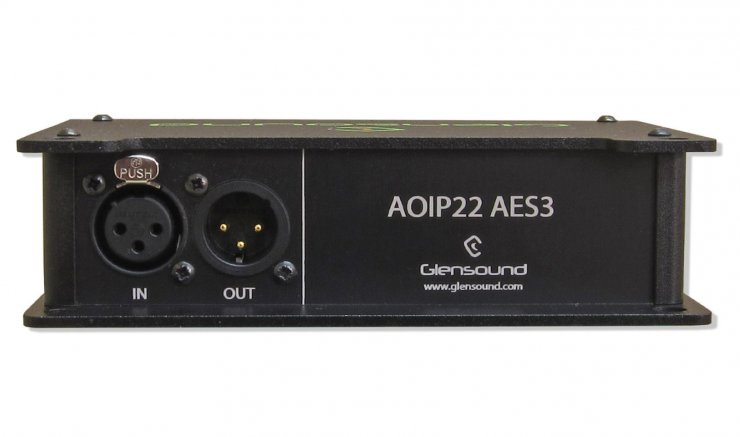

AOIP22 AES3 Front BAN AOIP22 AES3 Plain Side BAN AOIP22 AES3 Rear BAN AOIP22 AES3 USB Side BAN AOIP22 AES3 Angle BAN

AoIP22 AES3
AES3 interface for Dante/ AES67

Features Description Video Specifications Downloads Ask a Question
  • AoIP22 AES3: 1 x AES3 I/O
  • AES3 audio interface for Dante / AES67 networks
  • Simple AoIP audio interface for professional location work
  • Robust, Reliable & Lightweight
  • Powered by PoE

Packaged in a small & rugged format, and designed for outside broadcast, theatre and location applications.

The AoIP22 AES3 is designed to easily and quickly interface existing AES3 equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation.

Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.

AoIP22 AES3

The AoIP22 AES3 provides 1 balanced AES3 audio circuit on and off the Dante®/ AES67 audio network.

Up to 192kHz Input Sample Frequency
AES 3 inputs can accept sample frequencies from 32 to 192kHz.

Up to 96kHz Output Sample Frequency
When operating 1 x AES3 output then either unit can support sampling up to 96kHz*** See note under "Specification/Audio".

Sample Rate Converters on Inputs
To synchronise the incoming AES3 stream to the Dante®/ AES67 clock rate, sample rate converters are provided on each input.

Network Synchronised Outputs
The AES3 outputs are synchronised to the network audio sample rate and as such their clocks follow the Dante®/ AES67 circuits.

Powered by PoE
To make installation a single cable affair, the AoIP AES3 units are powered by Power over Ethernet and can be powered from PoE enabled switches or Mid Span PoE Injectors.

Transformer Balanced AES3 Inputs
AES3 transformers provide isolation of the audio inputs.

Rubber Feet
If the AoIP22/44 AES3 is to be sat on a desk or the back of a workbench, then the fitted rubber feet will stop it sliding around.

Cable Tie Holes
All four front corners of the AoIP22 AES3 feature large extremely strong holes that are ideal for threading cable ties through. This makes temporarily installing the unit in out of the way locations very easy.

Audio
Frequency Response: Flat to 22kHz
Maximum Input before clip: 0dBFs
Maximum Output Level: 0dBFs
Input Impedance: 110 Ohms
Output impedance: 110 Ohms
Distortion: 0.00006% THD+N @ 1kHz Reference to +18dBu output
Input Type: Transformer balanced on Neutrik 3 pin XLR socket
Noise: >-123dBu (Residual)
Dynamic Range: 141dBs
Input Frequency 32 – 192kHz
Output Frequency **Note: 44.1,48,88.2,96kHz 1 x AES3 Channel driven 44.1 & 48kHz 2 x AES3 driven locked to DANTE

Power
PoE: 1.2 Watts
Source: PoE Enabled switch or mid-span PoE Injection

Network Audio
Compatible Audio Networks: DANTE uncompressed, low latency audio. AES67
Network Connection: Neutrik RJ45 EtherCON
DANTE Network Sample Rate: 44.1k,48k,88.2k,96k,192k
AES67 Network Sample Rate: 48k

Physical
Size: 153 x 105 x 41mm (WxDxH) Excluding belt-clip
Weight: 405g
Mechanics: All aluminium construction, anodized and laser etched

Environmental
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity:  0 to 95% non-condensing
