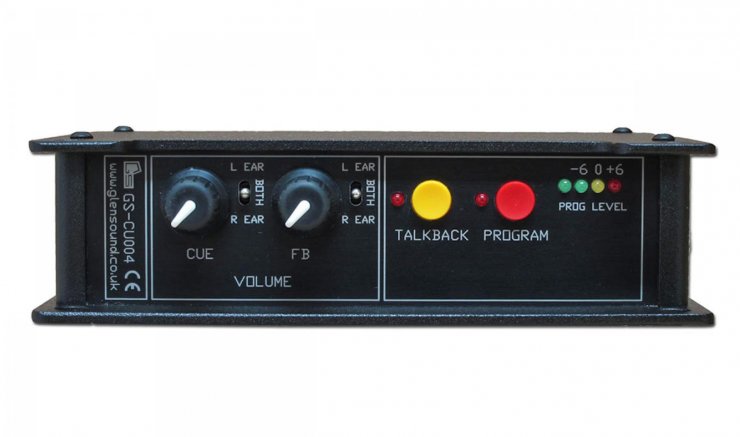

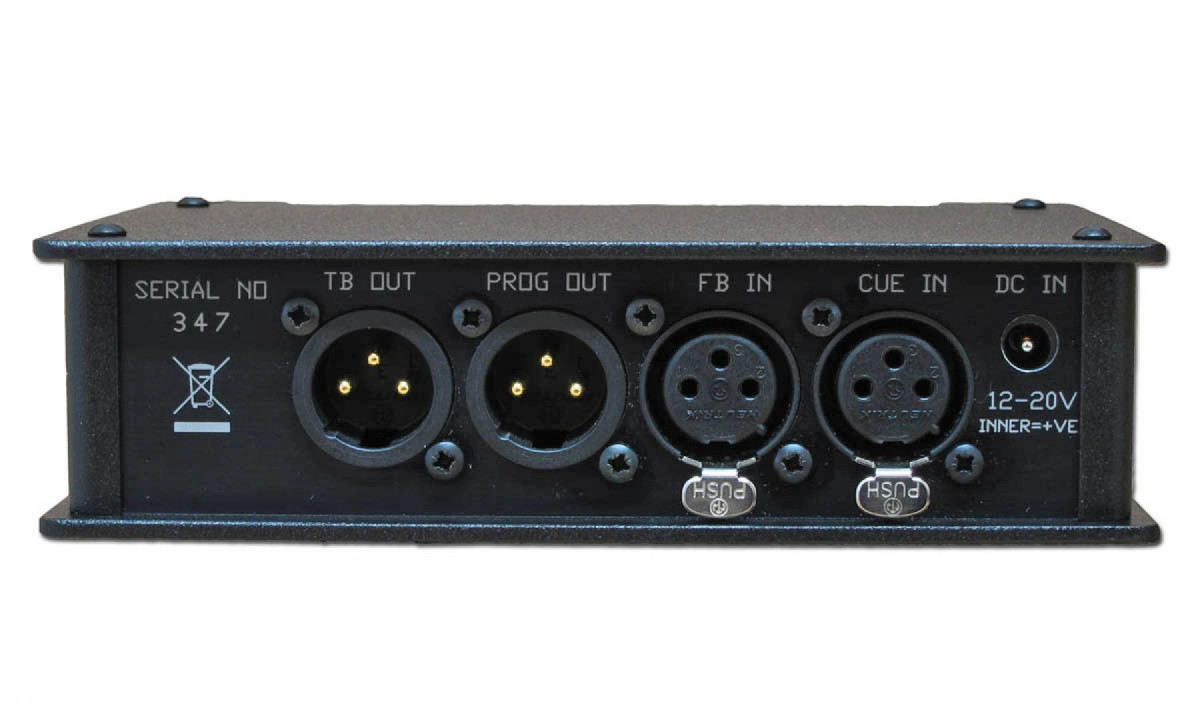

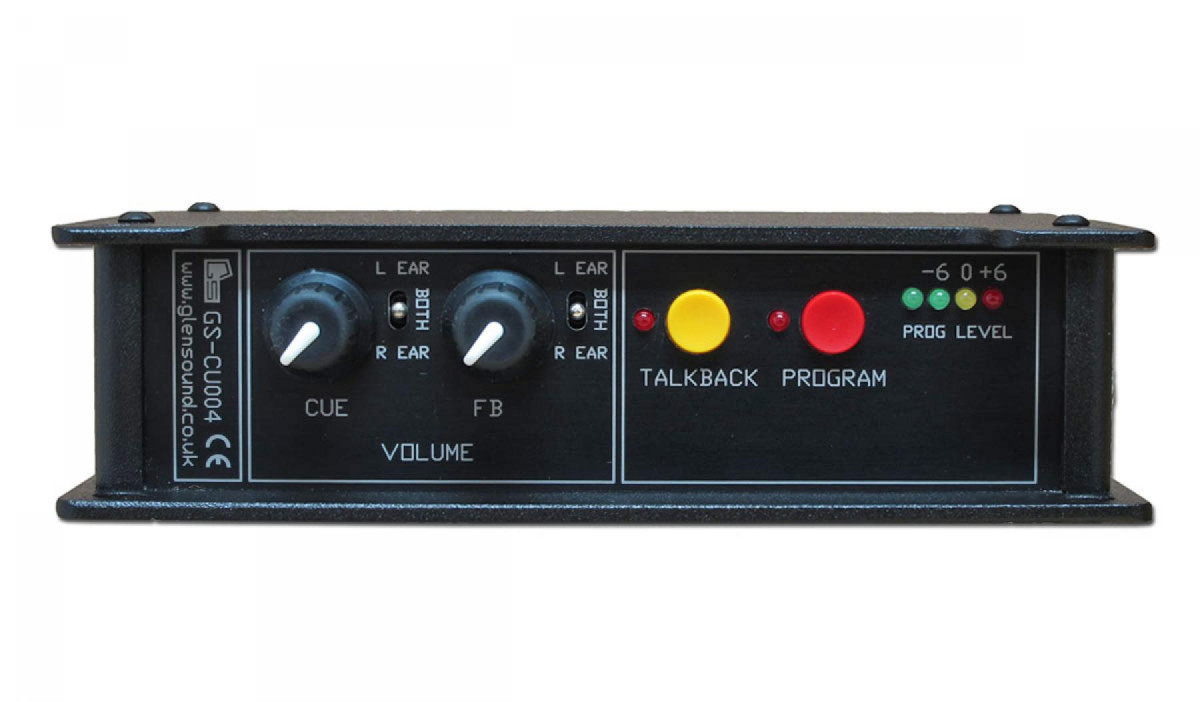

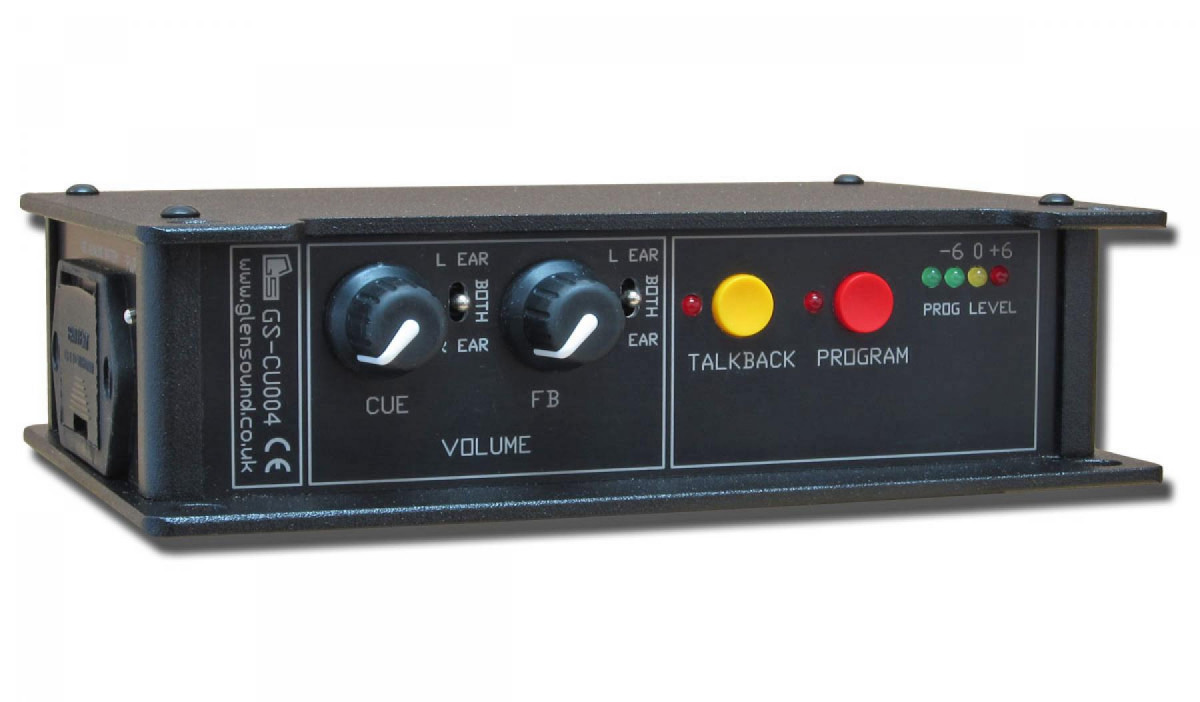

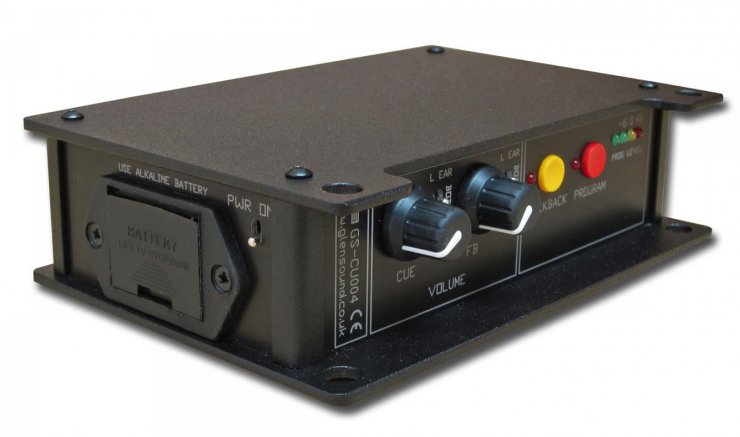

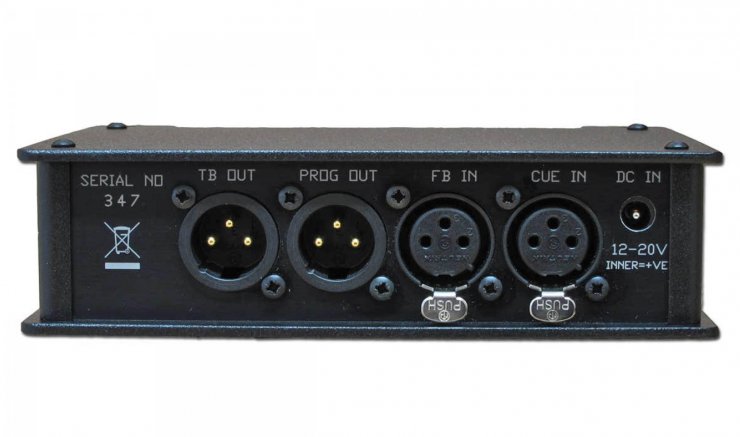

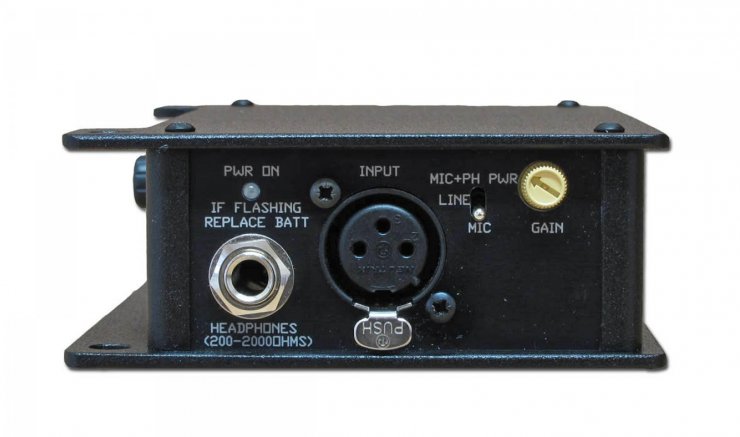

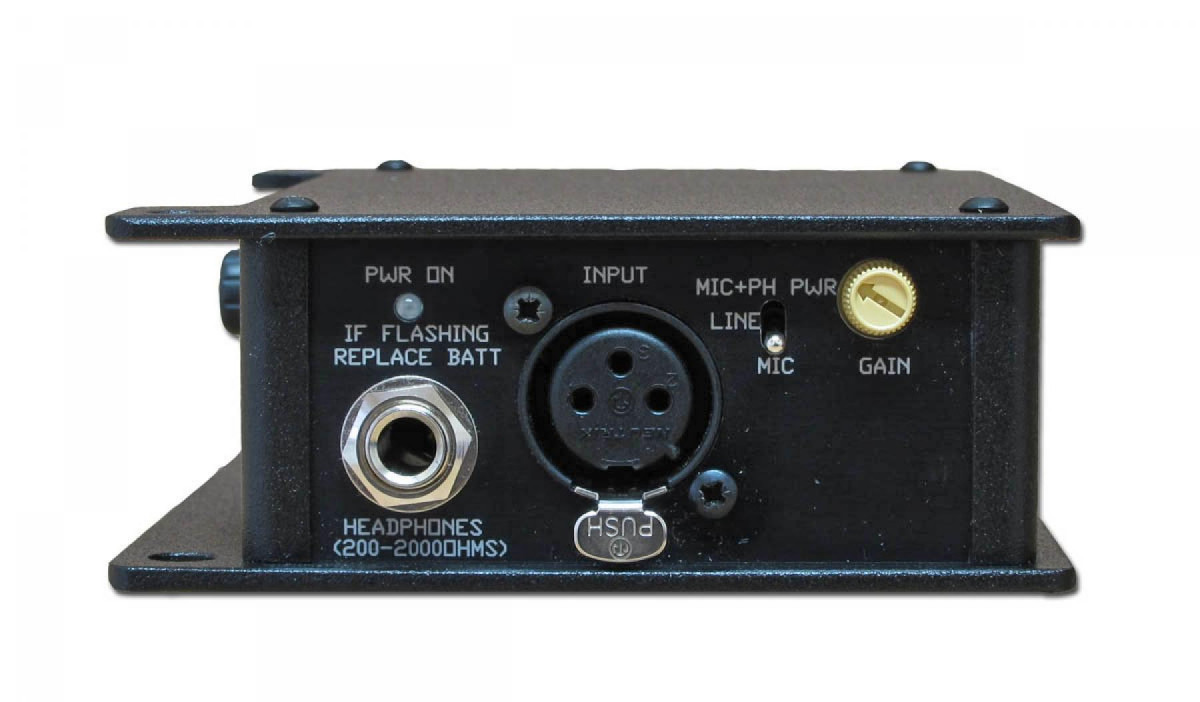

CU004 Angle BAN CU004 Rear BAN CU004 Right BAN CU004 Left BAN CU004 Front BAN CU004 Angle Above BAN
  • Complete commentary functionality in a small belt pack format
  • Main mic/line input is electronically balanced on XLR with adjustable gain control
  • Input is switchable from line, mic, or mic + 12v phantom power
  • Headphone output on 6.35mm jack socket
  • Two outputs: one for main programme audio, one for talk back circuit; both are transformer balanced
  • Independently configurable buttons for both outputs using Config+: latching, momentary or lazy
  • Two inputs for headphone monitoring on XLR, both with adjustable level
  • Headphone inputs have left/both/right switching
  • Belt clip

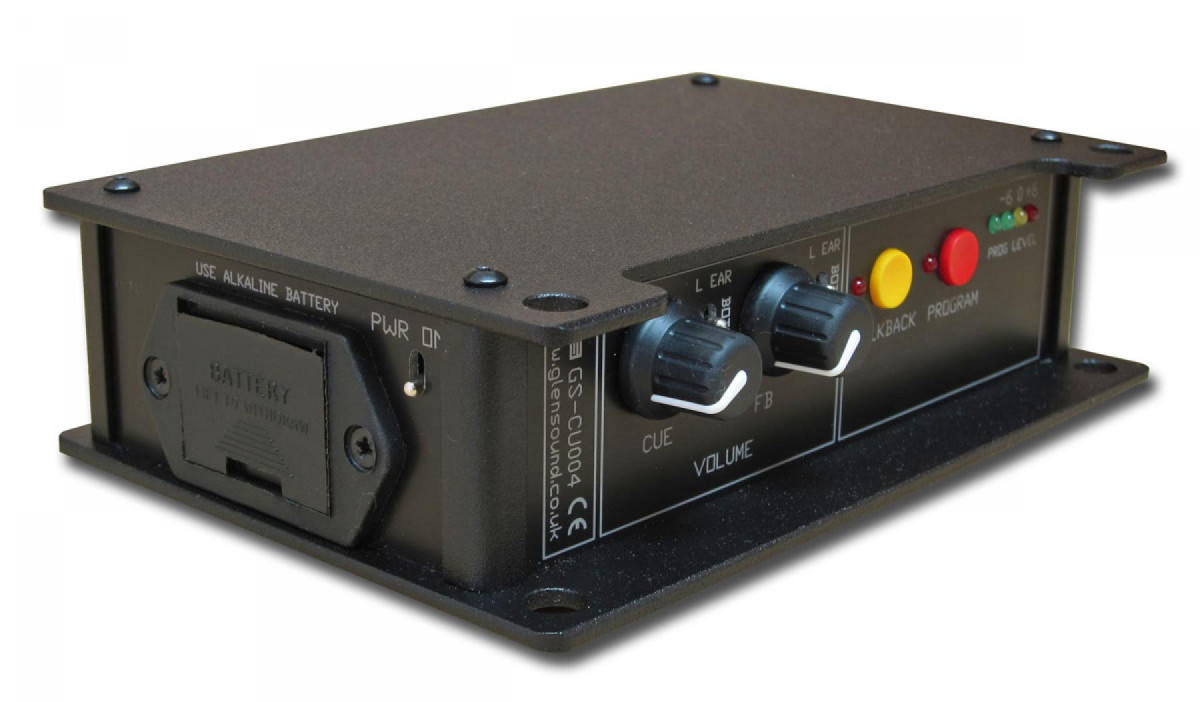

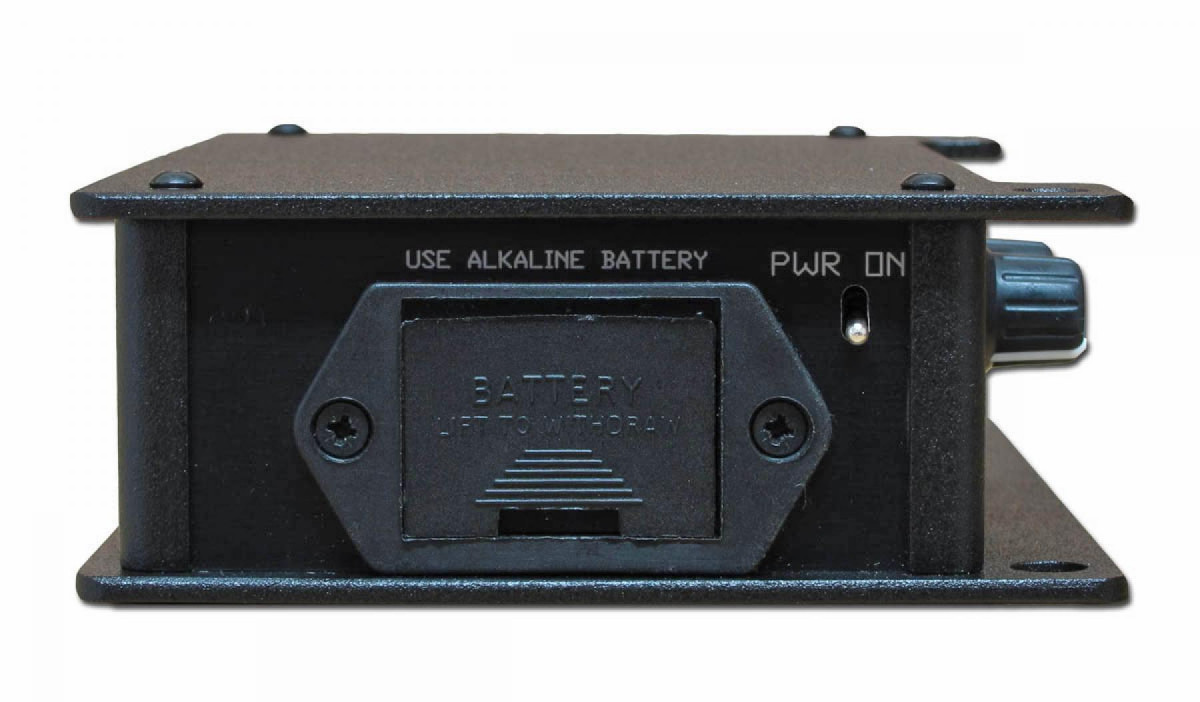

  • Battery powered via 1 x 9v PP3, or via external 12v DC
  • Maximum Dimensions (excluding belt clip): 153 mm x 104 mm x 43mm
  • Weight (excluding battery): 355g

Inputs
The main input is switchable between mic, mic+12v phantom power, and line. The input has an adjustable gain control to meet a wide range of dynamic, condenser, and ribbon microphones. The input passes through a broadcast quality compressor/limiter circuit designed to manage the peaks of excited commentary.

Outputs/Talkback
There are two output circuits. One is used as the main programme audio, the other as a talkback circuit. There are separate button controls for each of these using Config+. They can each be independently configured for latching or momentary, with the programme button also having a 'cough' feature. Both outputs are transformer balanced.

Monitoring
There are two monitoring inputs each with independent level control. Each of these inputs can be switched from the left ear, right ear, or both ears. There is a 4 LED level meter from -6 to +6 dB.

Power
Battery power is from 1 x 9v PP3, or an external DC power supply.The GS-CU004 is often used as a remote link to the main commentary unit. It is favoured by pitch side interviewers, and is popular in combination with wireless systems.

MIC INPUT GAIN
-44dBu to –67dBu

MIC+ PHANTOM PWR GAIN
-36dBu to –59dBu

LINE GAIN
-1dBu to –24dBu

EQUIVALENT INPUT NOISE
119dBu (22-22KHz RMS gain @ max) Input terminated with 300 Ohms

FREQUENCY REPONSE (Mic-Line)
50Hz to 20KHz <-1dBu

PHANTOM POWER
12 Volt Phantom power (P12L)

COMPRESSOR/LIMITER
Threshold approx Line up Compressor 3:1 ratio (approx)

THD+NOISE
< 0.25% (50Hz to 20KHz)

PPM METER
4 x LEDS (–12,-6,0,+6 dBu with reference to prog out)

PGM & TB OUTPUT IMPEDANCE
50 OHMS Transfomer balanced

FB & CUE INPUT IMPEDANCE
> 80K Ohms Electronically balanced

FB & CUE INPUT GAINS
-20dBu to +10dBu

HEADPHONE ROUTING FB & CUE
inputs switchable to either or both ears

HEADPHONE LEVELS
Max +18dBu with 600 Ohms *****Warning high headphone levels can be harmful to your hearing *****

OPERATOR SIDE TONE
Fixed @ -10dBu with reference to output send level

HEADPHONE CONNECTOR
A or B gauge jack

HEADPHONE IMPEDANCE
200 to 2000 ohms

POWER
Internal: 1 x PP3 9 volt battery
External: 12 to 20V @ < 80Ma 2.5 mm Jack (inner positive)

BATTERY LIFE
BATTERY INDICATOR Steady blue LED indicates good battery
Flashing blue LED indicates low battery

OVERALL SIZE
43 x 153 x 103 mm (H x W x D)

UNIT WEIGHT
355 Grams (including battery)
