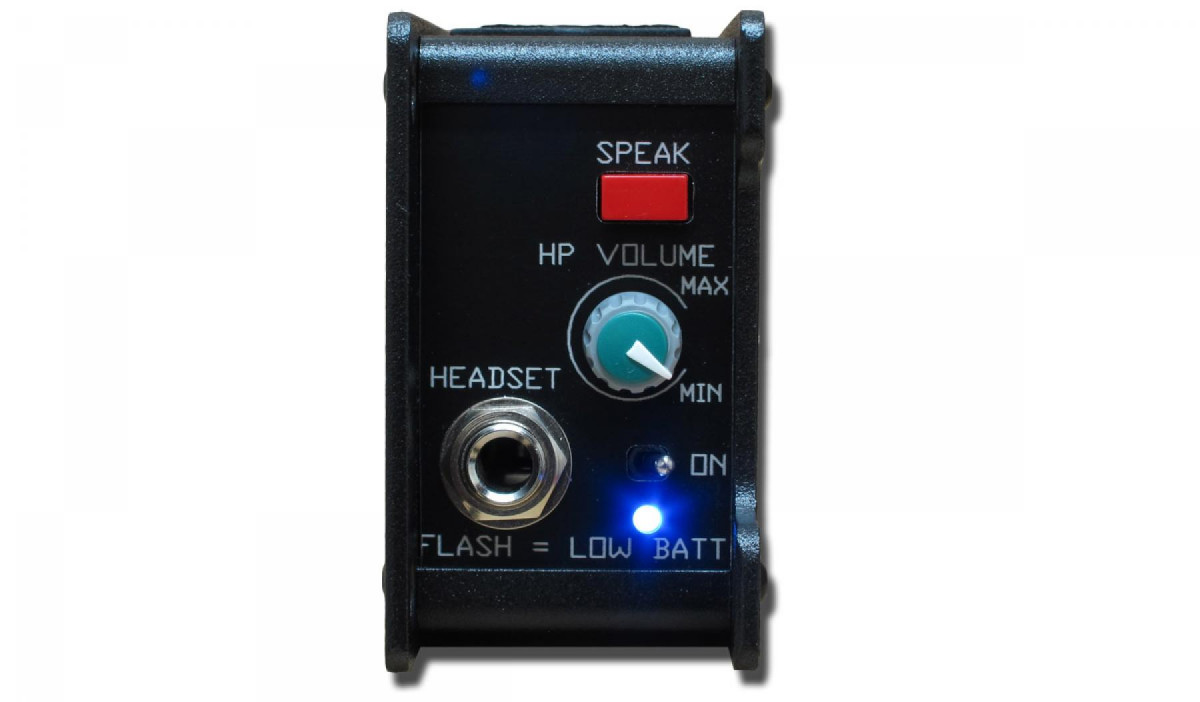

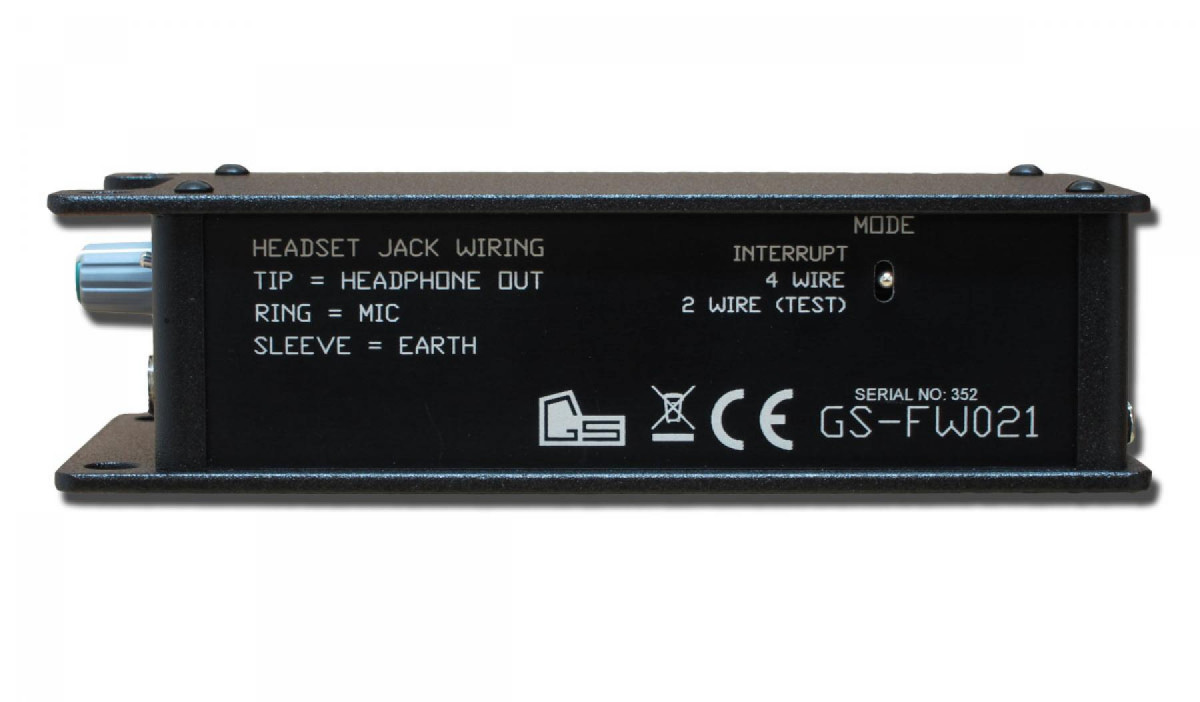

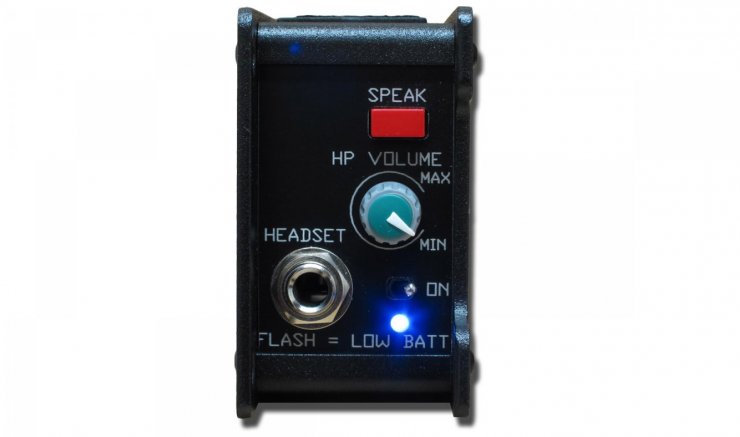

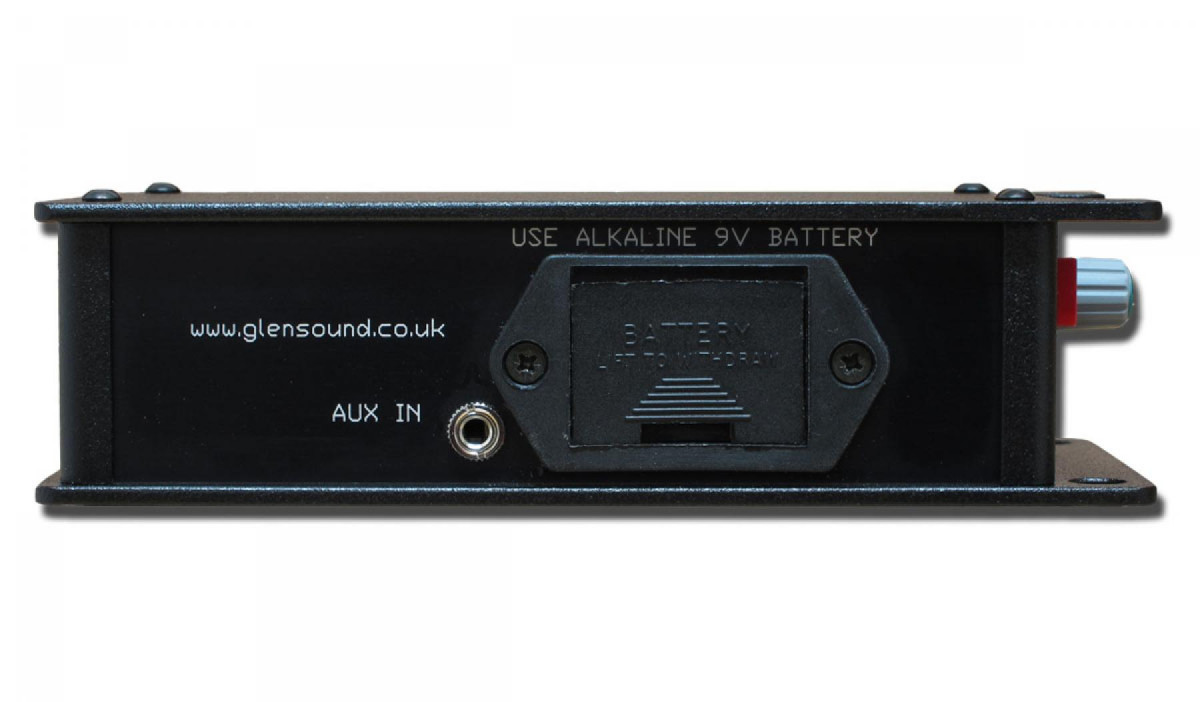

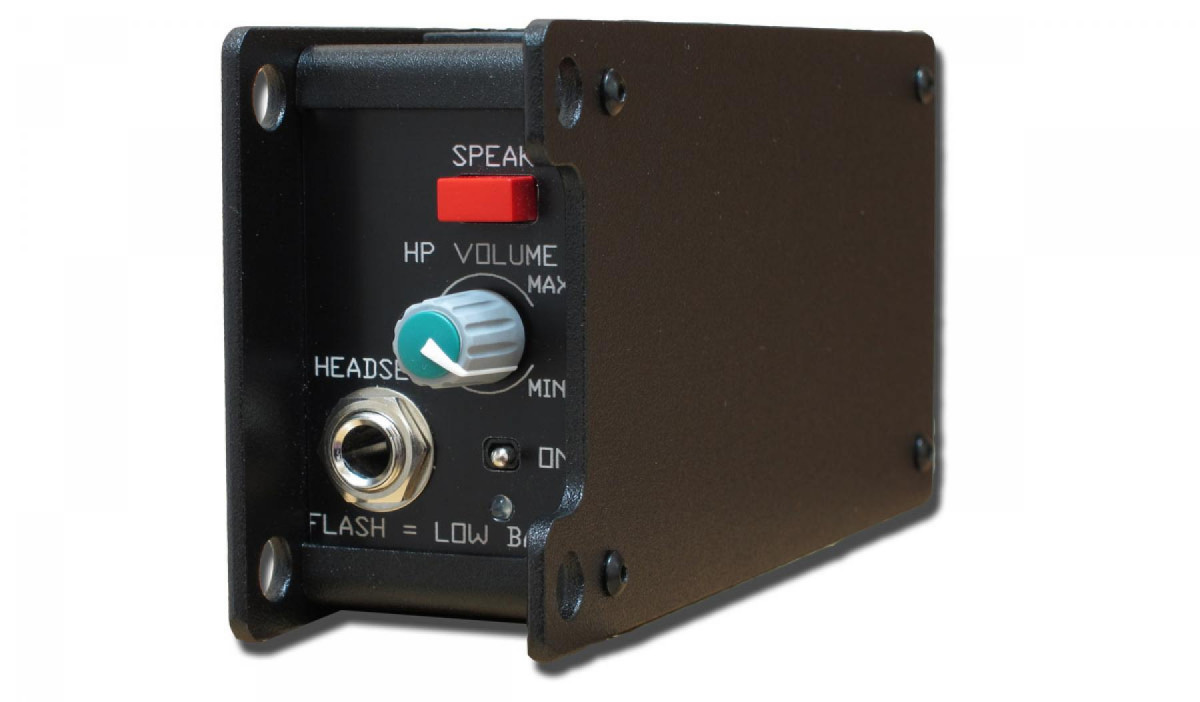

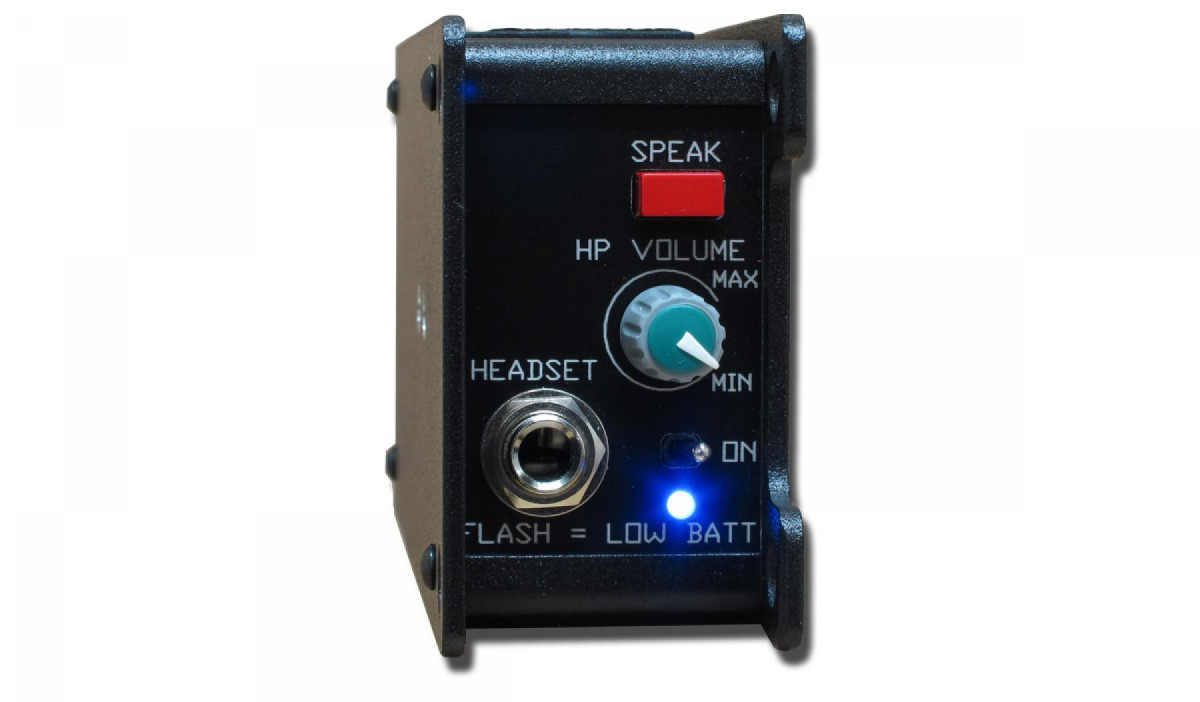

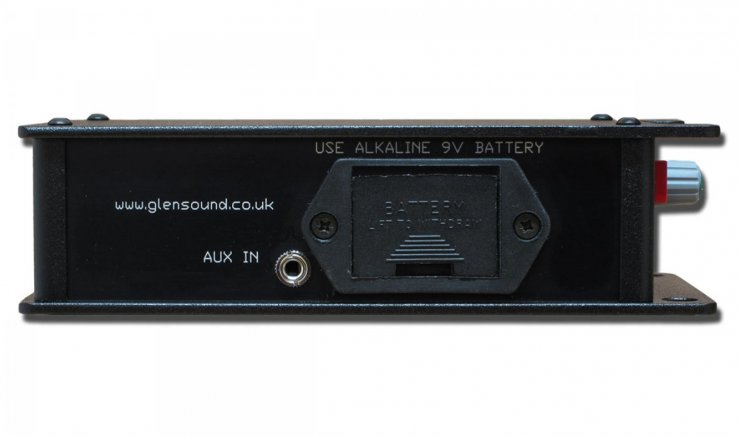

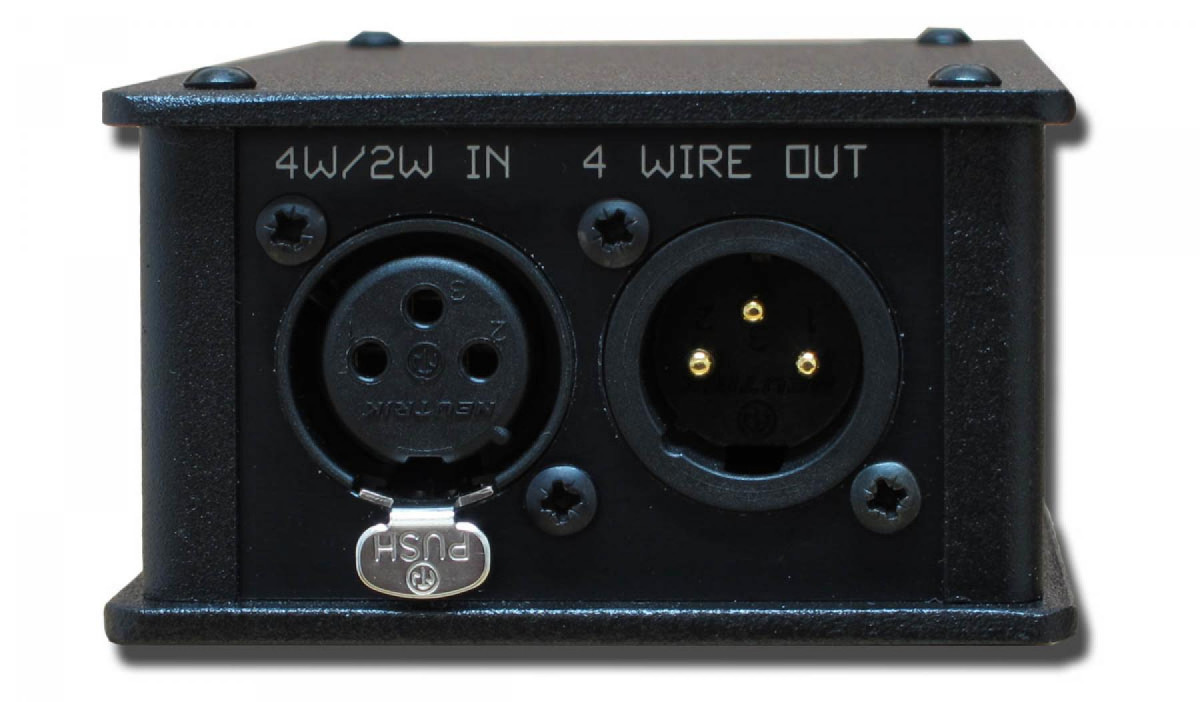

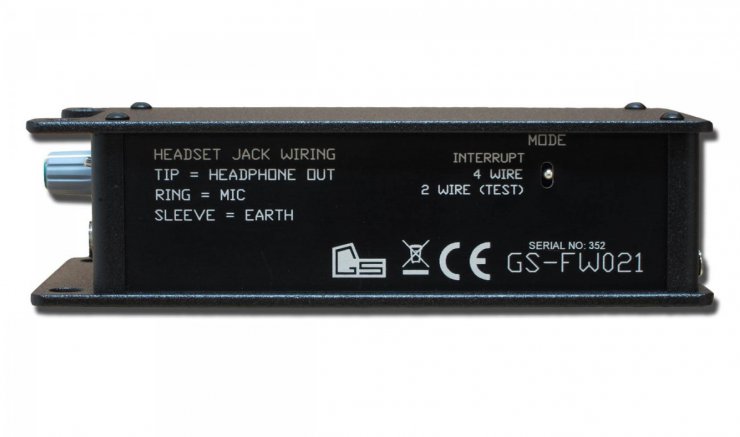

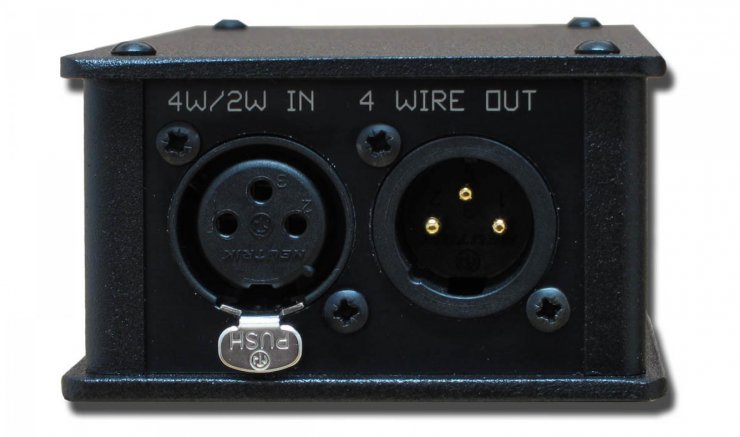

FW021 Angle BAN FW021 Front BAN FW021 Left BAN FW021 Rear BAN FW021 Right BAN FW021 Left Angle BAN

GS-FW021
Four Wire Box For Use With Headsets

Features Downloads Ask a Question
  • Battery powered from 9volt PP3
  • Long battery life (in excess of 100 hours)
  • Power on switch
  • Power on LED
  • Low battery indication
  • 3 user selectable modes: 4 wire (for standard connection to other broadcast equipment) Interrupt loop through (IFB) for monitoring & adding talkback over incoming audio 2 wire conference mode for connecting multiple GS-FW021 together 2 wire mode compatible with prospect C1B
  • Headset connection on 3 pole 6.35mm (A/B gauge)
  • Push to talk button for mic input
  • Limiter circuit for mic input
  • Headphone volume control
  • Auxiliary audio input (on 3.5mm jack) fed to headphone circuit
  • Transformer balanced 4 wire input/ output
  • Maximum dimensions just 152 x 42 x 72mm (l x w x d)
  • Includes belt clip (not pictured)
