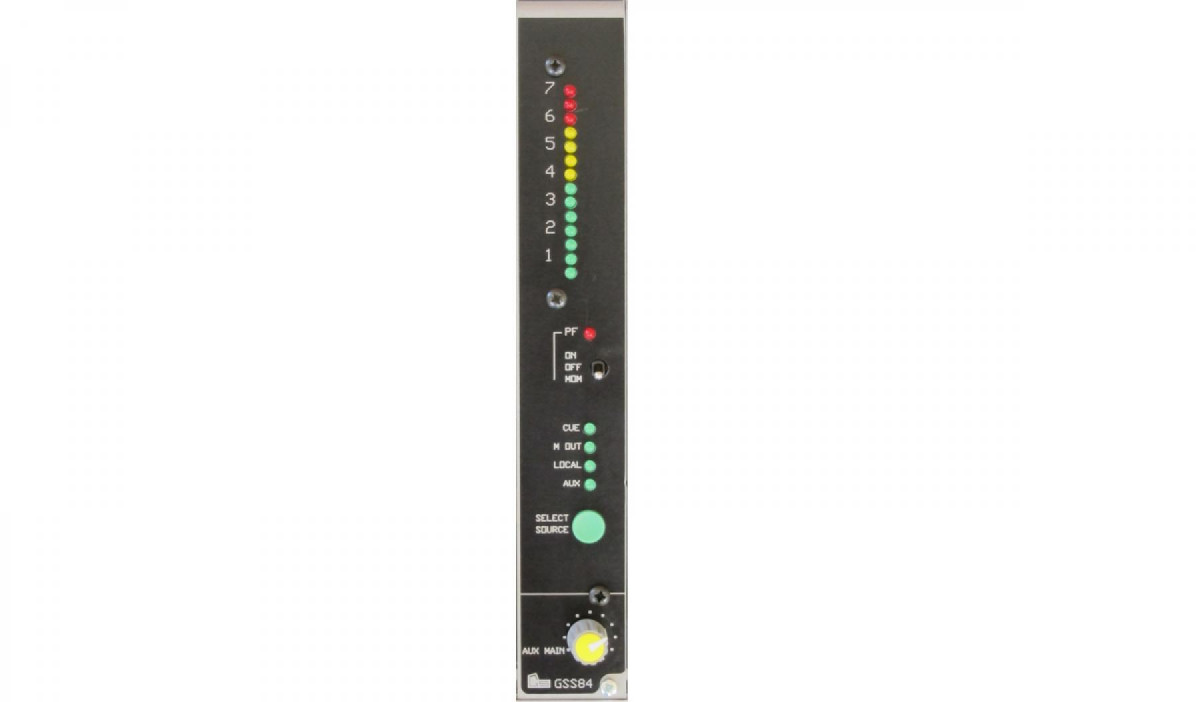

FRONT OF MODULE
Aux Peak Program Meter
1 x 14 LED PPM.
Aux Pre-Fader Switch
ON Set to ON, the selected PFL will latch on and be routed to the PPM.
OFF Set to ‘OFF’, no PFL will appear on the meter.
MOM Set to ‘MOM’, the selected PFL will appear on the PPM while the PFL button is being pressed.
Aux PPM follows 5 sources
1. Aux Output
2. Local Input
3. M Output
4. Cue Input (Either return feed of first channel of ISDN or can be over-plugged locally)
5. Pre Fade
Output Level
Aux output level is controlled by a rotary fader.

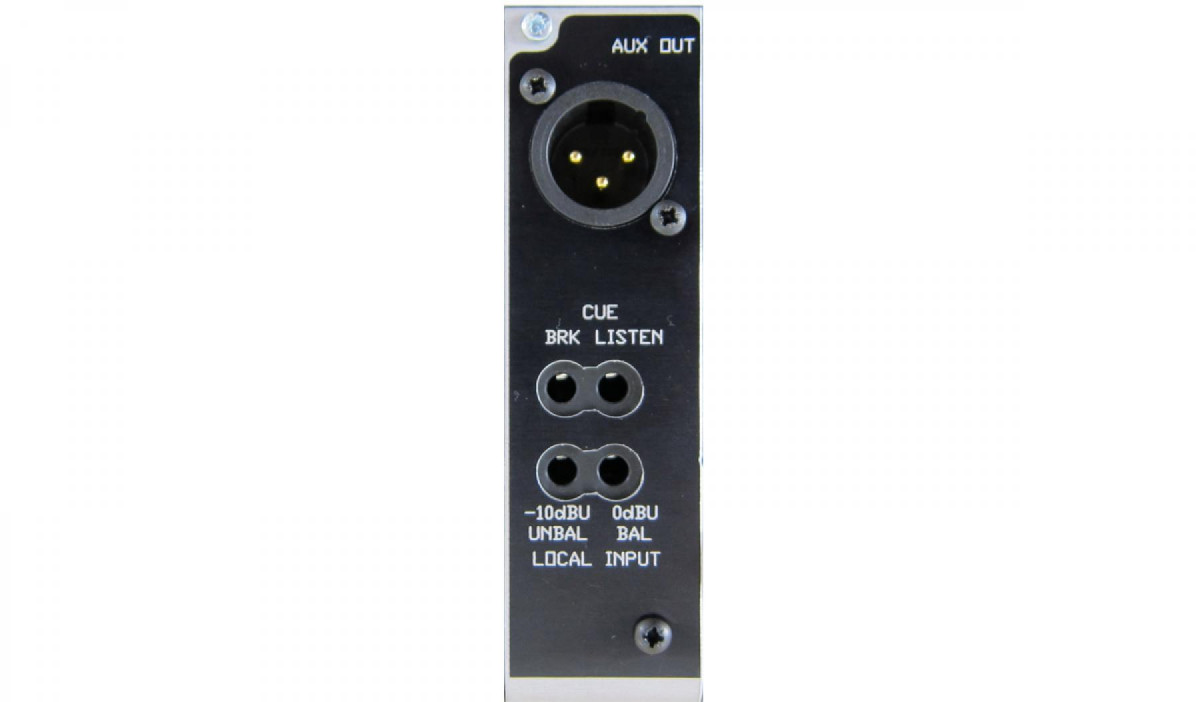

REAR OF MODULE
Output
The mono aux mix output is electronically balanced on XLR.
CUE IN / OUT
Input (BRK)
Cue input for distributing to headphone feeds of channels.
Output (LISTEN)
Cue output (If ISDN module fitted).
Local Input
Two inputs (one balanced 0dB and one unbalanced -10dB) which are mixed together internally and then distributed across the mixer to the local feeds on modules.
GENERAL SPECIFICATIONS
HEIGHT 150mm
WIDTH 150mm x 30mm per channel
DEPTH (Excluding Connectors) 380mm
MAINS CONSUMPTION
FOR A TYPICAL 10 MONO CHANNEL, 2 STEREO CHANNEL, 240V, CURRENT = 148mA, WATTS = 20W
WITH COMPRESSORS, STEREO PPM, MON PPM, AND HEADPHONE MODULE 110V, CURRENT = 245mA, WATTS = 20W
12V, CURRENT = 1.4A
48V, PHANTOM POWER 5.68mA
MONO MIC CHANNEL
GAIN -70dB TO +10dB
FREQUENCY RESPONSE 25Hz TO 20KHz (-1dB)
DISTORTION @ +8dB >0.15% (100Hz, 1KHz, 10KHz)
NOISE @ LINE UP >-53dB @ MAX GAIN (22Hz-22KHz)
NOISE ON CHANNEL @ MAX GAIN >-55dB (22Hz - 22KHz)
STEREO LINE CHANNEL
GAIN -10dB TO +10dB
FREQUENCY RESPONSE 25Hz TO 20KHz (-2Db)
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)
NOISE @ LINE UP >-75dB (22Hz - 22KHz)
CHANNEL EQ +-12dB CUT/BOOST @ 1K6 - 3K2 WITH AN AVERAGE Q
CHANNEL MEASUREMENTS
MAX INPUT GAIN BEFORE CLIPPING
MIC INPUT -24dB
LINE INPUT +16dB
MAX OUTPUT +25dB
A/B OUTPUT
CROSS TALK
1KHZ TONE FADER @ 0dB >-61dB (22HZ - 22KHZ)
NOISE ON CHANNEL AT LINE UP >-67dB (22HZ - 22KHZ)
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)
LSA LSB
GAIN 30dB
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)
NOISE @ LINE UP >-63dB (22Hz - 22KHz)
MONO OUTPUT
NOISE ON CHANNEL AT LINE UP >60dB (22HZ - 22KHZ)
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)
AUX OUTPUT
NOISE ON CHANNEL AT LINE UP >-61dB (22HZ - 22KHZ)
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)
OPS HEADPHONES
FREQUENCY RESPONSE 25Hz TO 20KHz (-1dB)
DISTORTION @ +8dB >0.09% (100Hz, 1KHz, 10KHz)
NOISE ON CHANNEL AT LINE UP >-55dB (22HZ - 22KHZ)
COMMS HEADPHONES
FREQUENCY RESPONSE 25Hz TO 20KHz (-1dB)
DISTORTION @ +8dB >0.06% (100Hz, 1KHz, 10KHz)
NOISE ON CHANNEL AT LINE UP >-56dB (22HZ - 22KHZ)
ALL HEADPHONES OUTPUTS ARE WIRED LEFT EAR PHASE
RIGHT EAR PHASE REV
