GS-GX3 Main Monitoring And Output Module

Features Description GS-GX3 Specifications Downloads Ask a Question
  • Main Output
  • Main PPM
  • Loudspeaker Outputs

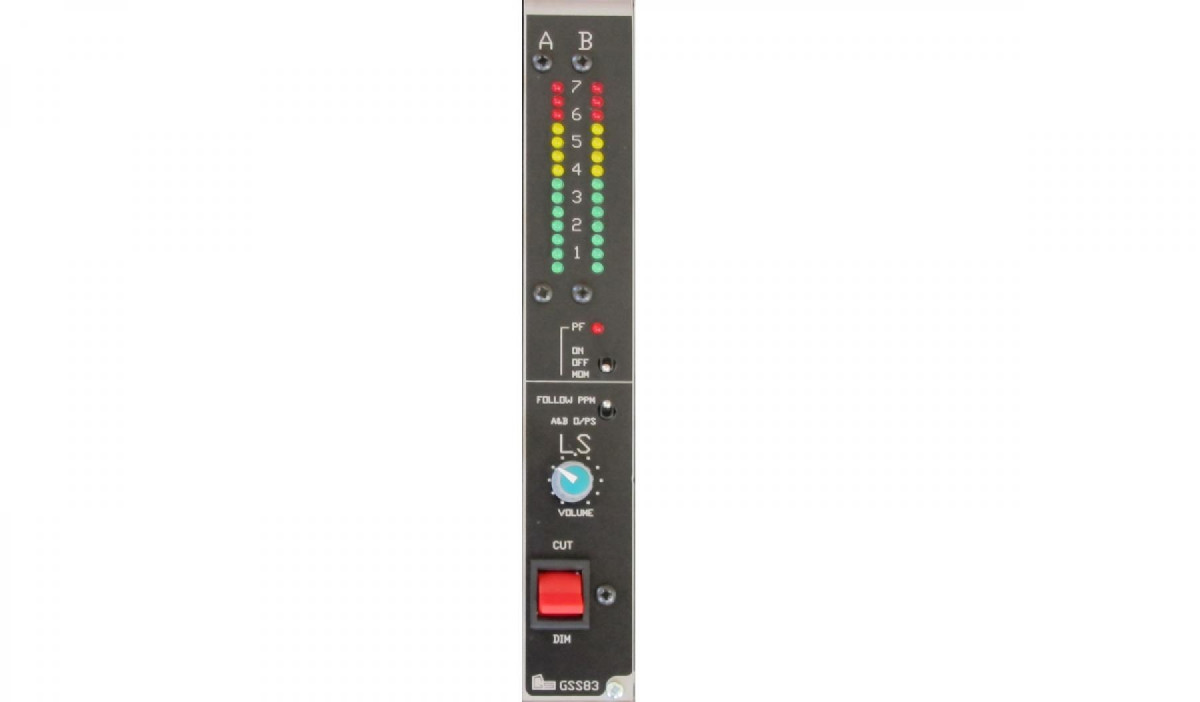

FRONT OF MODULE

Main Peak Program Meters
2 x 14 LED PPM’s.
PPMs follow the main output or is switched to follow pre fade.

Pre-Fader Switch
ON Set to ON, the selected PFL will latch on and be routed to the PPM.
OFF Set to ‘OFF’, no PFL will appear on the meter.
MOM Set to ‘MOM’, the selected PFL will appear on the PPM while the PFL button is being pressed.

Level Control
Loudspeaker output level control.

Cut/Dim Switch
Loudspeaker output Cut/Dim switch.

Main Output Level
Master fader for output level.

Fader Option
Faders can be either 60 or 100mm and comes with a Penny & Giles option.


REAR OF MODULE

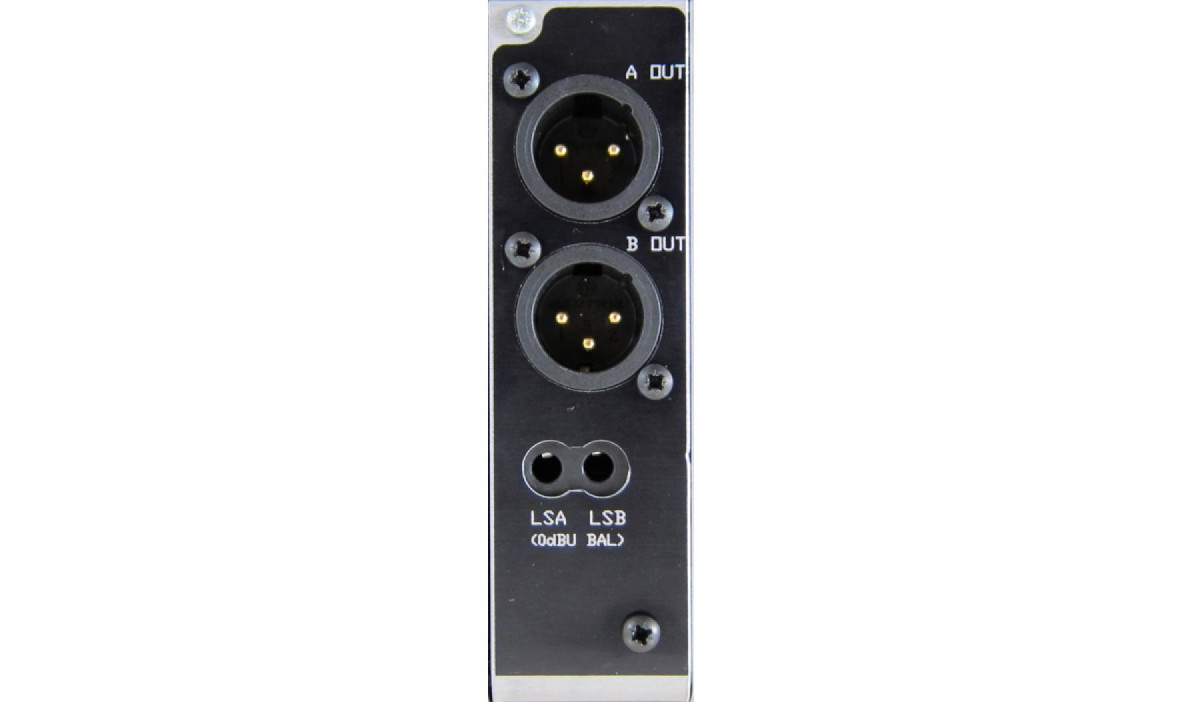

Main Outputs
A and B main electronically balanced outputs on XLRs.

Loudspeaker Outputs
A and B are electronically balanced outputs (0dB). The loudspeaker can follow PPM or main outputs. Loudspeakers can be set to dim as either CLS or SLS when input channels are faded up.

GENERAL SPECIFICATIONS
HEIGHT 150mm
WIDTH 150mm x 30mm per channel
DEPTH (Excluding Connectors) 380mm

MAINS CONSUMPTION
FOR A TYPICAL 10 MONO CHANNEL, 2 STEREO CHANNEL, 240V, CURRENT = 148mA, WATTS = 20W
WITH COMPRESSORS, STEREO PPM, MON PPM, AND HEADPHONE MODULE 110V, CURRENT = 245mA, WATTS = 20W
12V, CURRENT = 1.4A
48V, PHANTOM POWER 5.68mA

MONO MIC CHANNEL
GAIN -70dB TO +10dB
FREQUENCY RESPONSE 25Hz TO 20KHz (-1dB)
DISTORTION @ +8dB >0.15% (100Hz, 1KHz, 10KHz)
NOISE @ LINE UP >-53dB @ MAX GAIN (22Hz-22KHz)
NOISE ON CHANNEL @ MAX GAIN >-55dB (22Hz - 22KHz)

STEREO LINE CHANNEL
GAIN -10dB TO +10dB
FREQUENCY RESPONSE 25Hz TO 20KHz (-2Db)
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)
NOISE @ LINE UP >-75dB (22Hz - 22KHz)

CHANNEL EQ +-12dB CUT/BOOST @ 1K6 - 3K2 WITH AN AVERAGE Q

CHANNEL MEASUREMENTS

MAX INPUT GAIN BEFORE CLIPPING
MIC INPUT -24dB
LINE INPUT +16dB
MAX OUTPUT +25dB

A/B OUTPUT
CROSS TALK
1KHZ TONE FADER @ 0dB >-61dB (22HZ - 22KHZ)
NOISE ON CHANNEL AT LINE UP >-67dB (22HZ - 22KHZ)
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)

LSA LSB
GAIN 30dB
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)
NOISE @ LINE UP >-63dB (22Hz - 22KHz)

MONO OUTPUT
NOISE ON CHANNEL AT LINE UP >60dB (22HZ - 22KHZ)
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)

AUX OUTPUT
NOISE ON CHANNEL AT LINE UP >-61dB (22HZ - 22KHZ)
DISTORTION @ +8dB >0.02% (100Hz, 1KHz, 10KHz)

OPS HEADPHONES
FREQUENCY RESPONSE 25Hz TO 20KHz (-1dB)
DISTORTION @ +8dB >0.09% (100Hz, 1KHz, 10KHz)
NOISE ON CHANNEL AT LINE UP >-55dB (22HZ - 22KHZ)

COMMS HEADPHONES
FREQUENCY RESPONSE 25Hz TO 20KHz (-1dB)
DISTORTION @ +8dB >0.06% (100Hz, 1KHz, 10KHz)
NOISE ON CHANNEL AT LINE UP >-56dB (22HZ - 22KHZ)
ALL HEADPHONES OUTPUTS ARE WIRED LEFT EAR PHASE
RIGHT EAR PHASE REV
