• Adds USB audio option to a new or existing GS-GC 5 ISDN codec
• Allows use of software based IP codecs (cost option)
• Gives digital 2 channel input and 2 channel across the USB link
• Connect to PC, MAC, iPhone, iPad
• Can be retro fitted to your existing GS-GC5

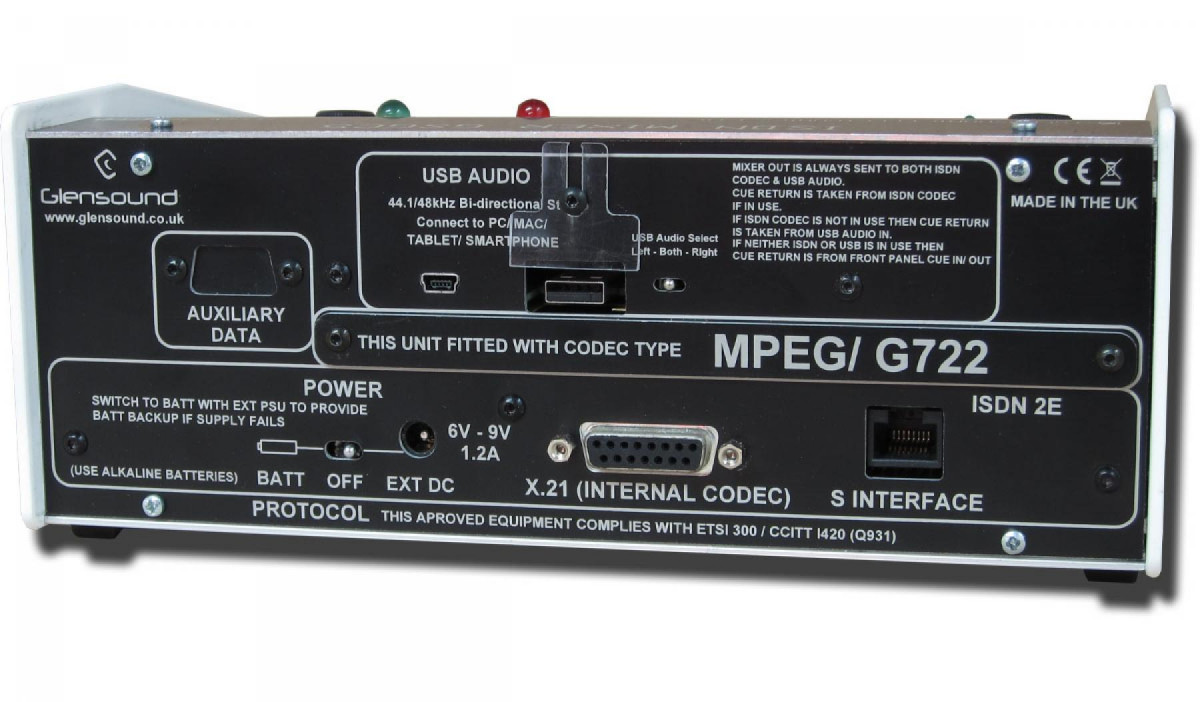

The GSGC5U1 is a retro fit upgrade to existing GS-GC5 codecs or an upgrade option on new units, that adds a bi-directional 2 channel digital interface.  It is a hardware upgrade and does not include any IP or recording software.

Many Glensound customers have our GS-GC5 ISDN codecs and have been using them for years.  As technology has moved on and the demand for IP solutions has increased, broadcasters have been considering 2 points:

• I would prefer a unit that offers more than just IP
• What do I do with all my existing ISDN units?

This simple upgrade means that your units' audio is paralleled to the ISDN I/O and the USB I/O, so you can operate both together if required.  It also means that your ISDN GS-GC5 is your ISDN codec and now also the hardware interface for your IP codec, keeping it simple for the operators.

How Is Audio Now Routed?

With the USB upgrade, your output programme mix is paralleled to the USB audio and the ISDN outputs.  The cue return monitor will now operate a priority system:

-        If audio is present on the ISDN return this will take priority

-        If there is no ISDN, it will take the cue audio from the USB audio input.

-        If neither of these options are present, it will take the cue audio from the front panel cue input.

What can I connect to?

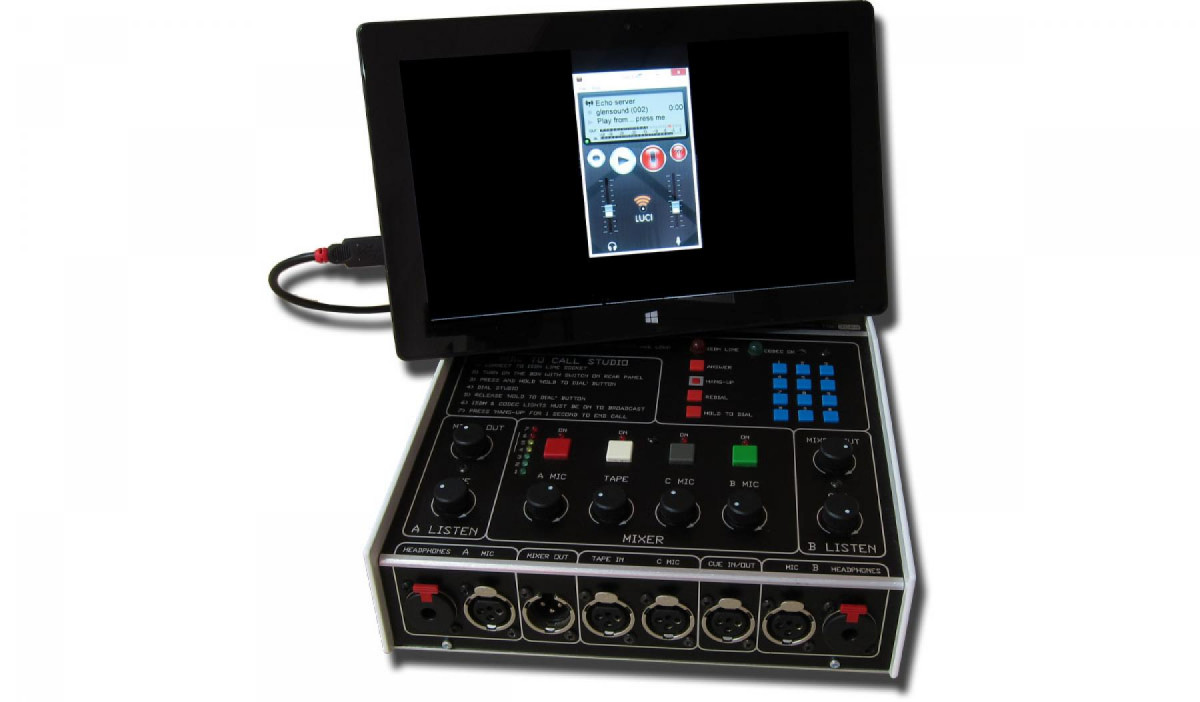

With the USB audio upgrade you can now connect to other USB devices with a 2 channel input, and a 2 channel output.  Examples would be:

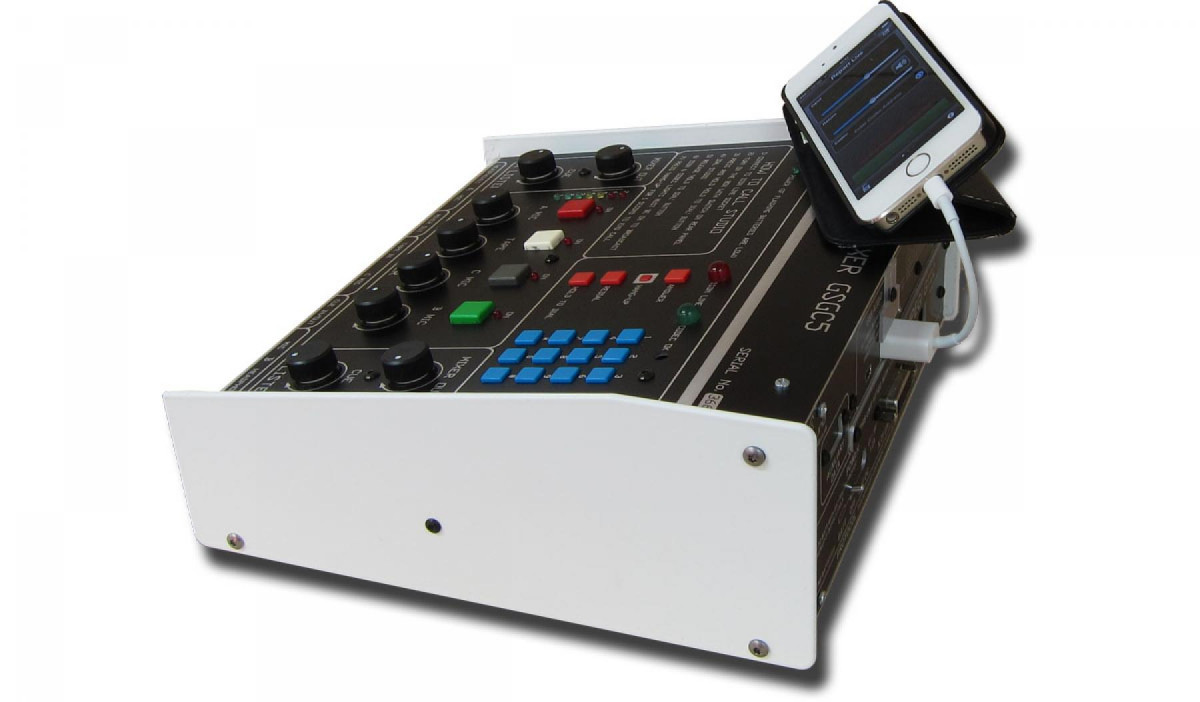

-        Smart phones, such as the iPhone (all versions), Samsung S3 and above, and Sony Xperia.

-        Tablets such as the iPad and the various PC based units.

-        Laptop PCs and Macs

-        Desktop PCs and Macs

What Can I Now do With The Audio On My PC or Phone?

Now you have a 24bit, 48kHz audio interface to your device, you can use the audio however you like.  Please note that no software is included with the GS-GC5U1.  Popular options include (but are not limited to):

IP CODECS

Luci Live - IP Codec for iOS/OSX/Windows
Luci is available in 2 versions.  A Lite version that is G722 single channel only, and the full versions that is stereo and with multi format codec options (MPEG2, AAC, AAC HEv2 etc) allowing high quality audio links.

 Luci Studio is the main studio based version that can receive multiple connections.  All Luci software operates as a straight one time purchase.

Luci Website

ipDTL - IP Codec for OSX/Windows

Audio solution that operates on a PC or Mac using a Chrome browser.  High quality option that requires both ends to simply be using the Chrome browser.  Operates on monthly or annual subscriptions.
ipDTL Website

Tieline Report It – IP Codec for iOS/Android smart phones

15kHz live IP codec.  Three purchasing options including the Lite version with 1 hour free.

Tieline web site

Source Elements - IP Codec for OSX/Windows
Audio solution that operates on a computer
Source Elements Website

RECORDERS
Steinberg Cubasis - for iOS
A multi channel sequencer and recorder

And all the many other Digital Audio Workstations that you know for PC and Mac.

TEST & MEASUREMENT

Oscillator - for iOS
Audio generator with multiple frequencies and levels.
App Store Link

A USB audio interface may not sound sexy, but with this upgrade, the world of high quality PC and smart device software has been opened to you, while still using the Glensound broadcast specification commentary mixer and monitoring unit.

Also available

GS-GC5/U2 - Adds A USB Audio Interface To The Rear Panel And Includes A Full Mechanical Upgrade

This adds the Glensound USB audio interface to your existing ISDN unit.  You return the unit to us, and we modify the unit with a new rear panel with an A type and mini USB socket. We also change all of the metal work with new and replace all mechanical and moving parts including buttons, switches, pots, sockets and internal cabling.  This upgrade includes a new 12 month warranty.
