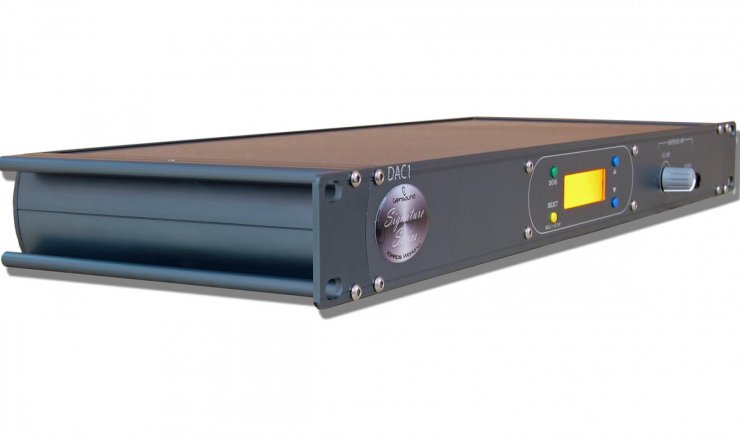

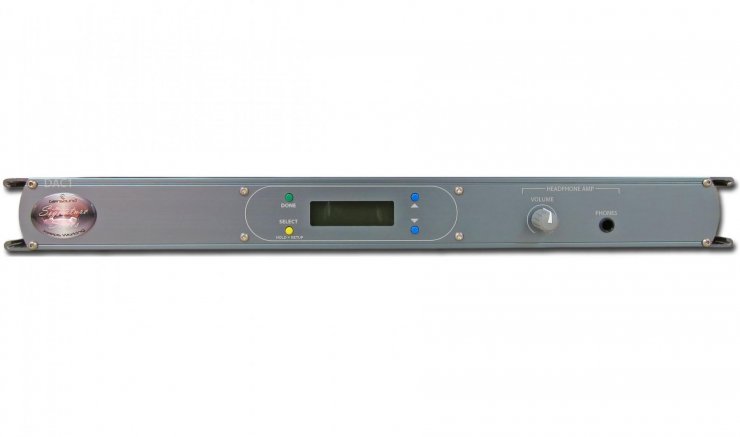

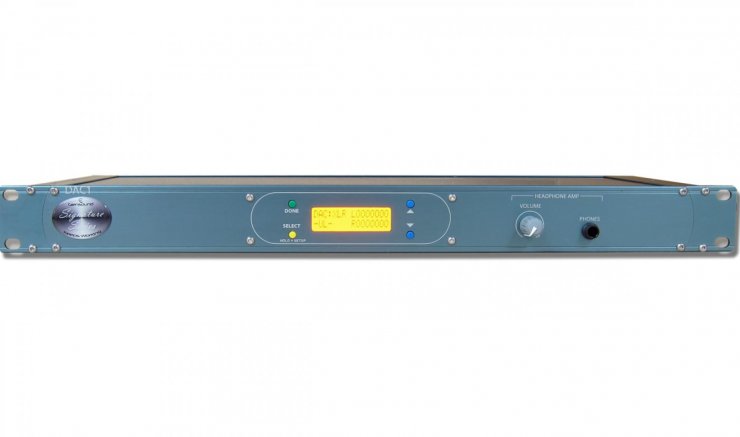

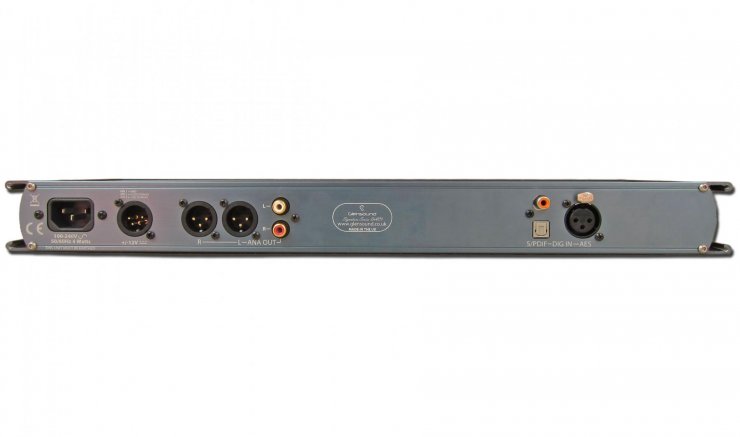

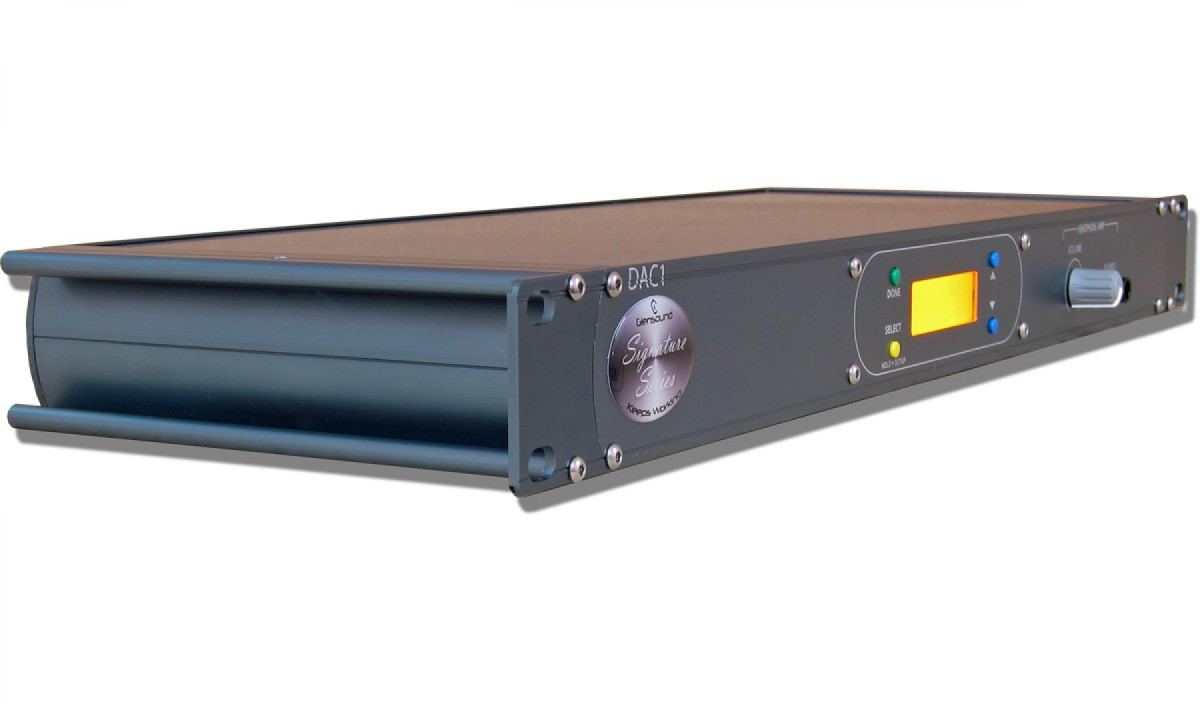

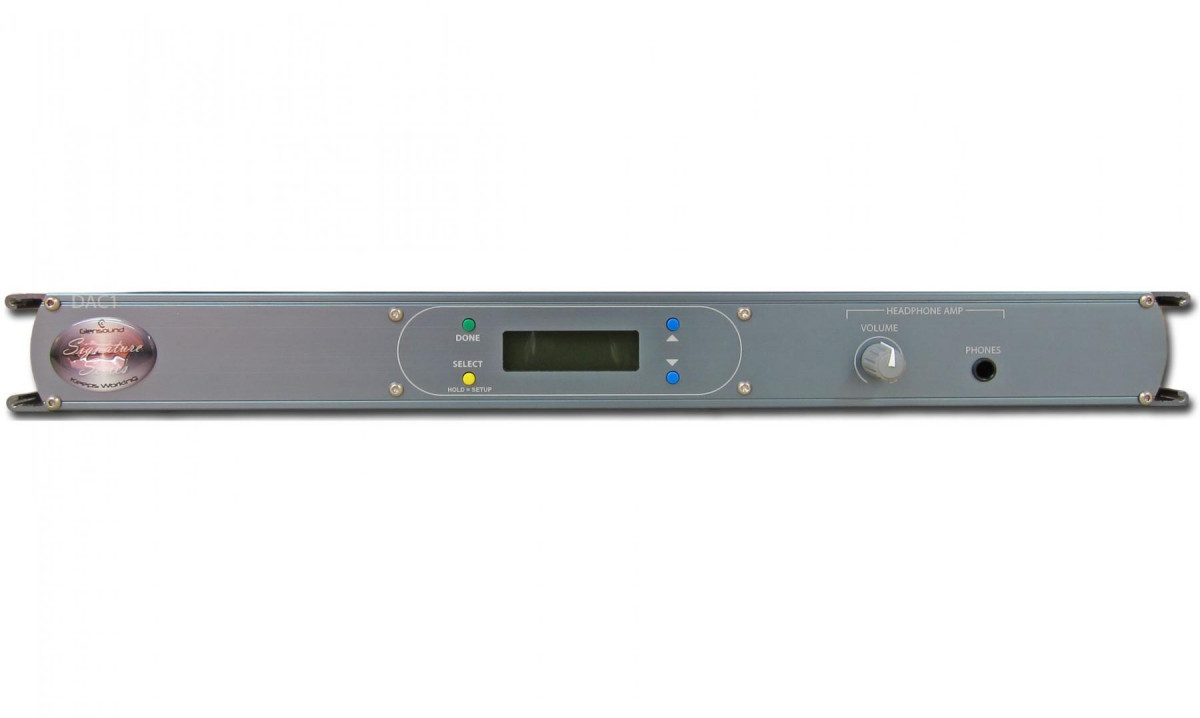

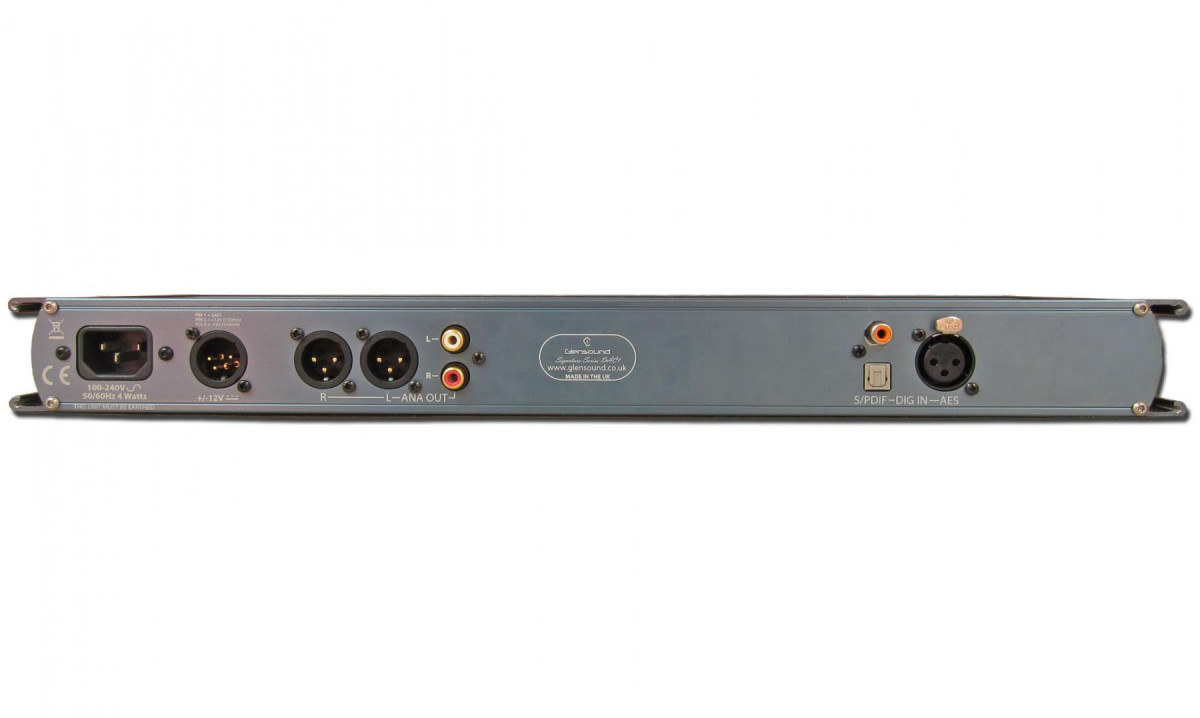

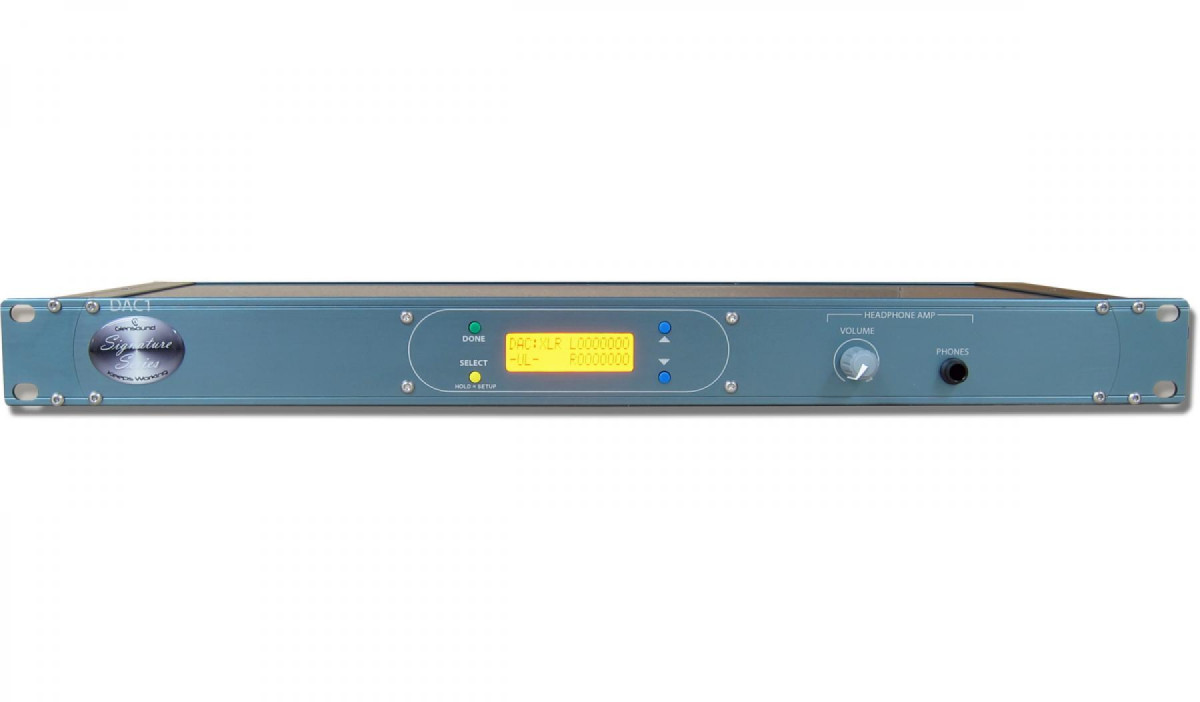

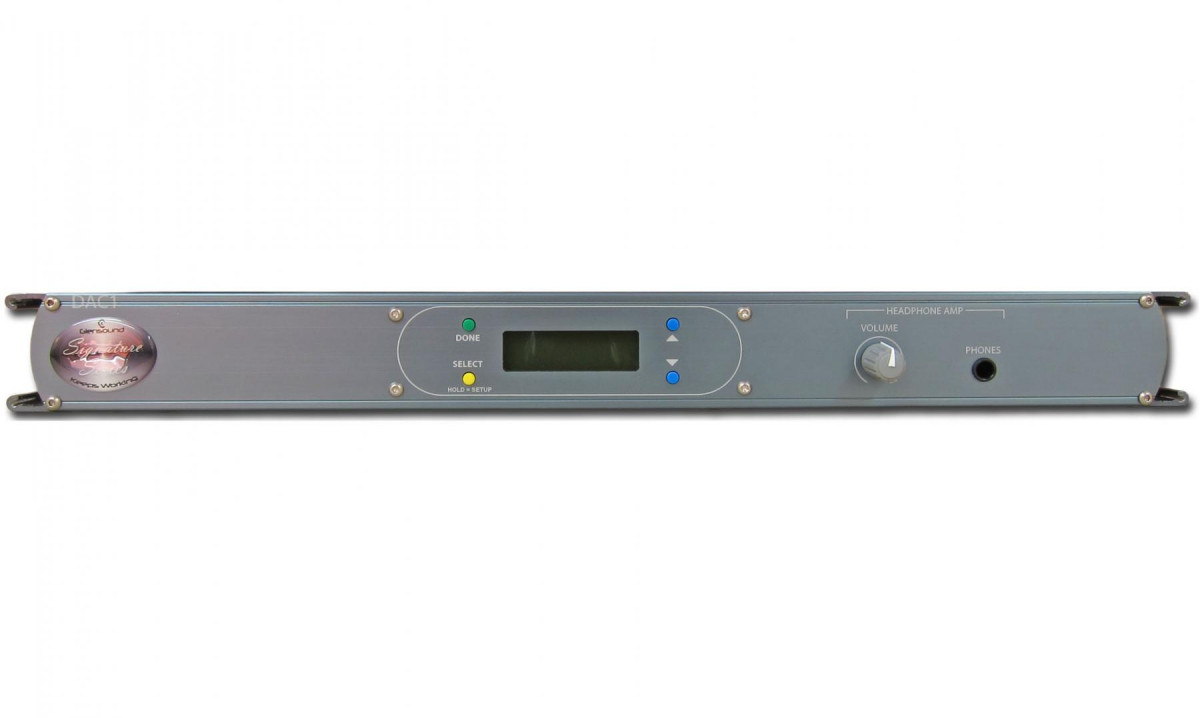

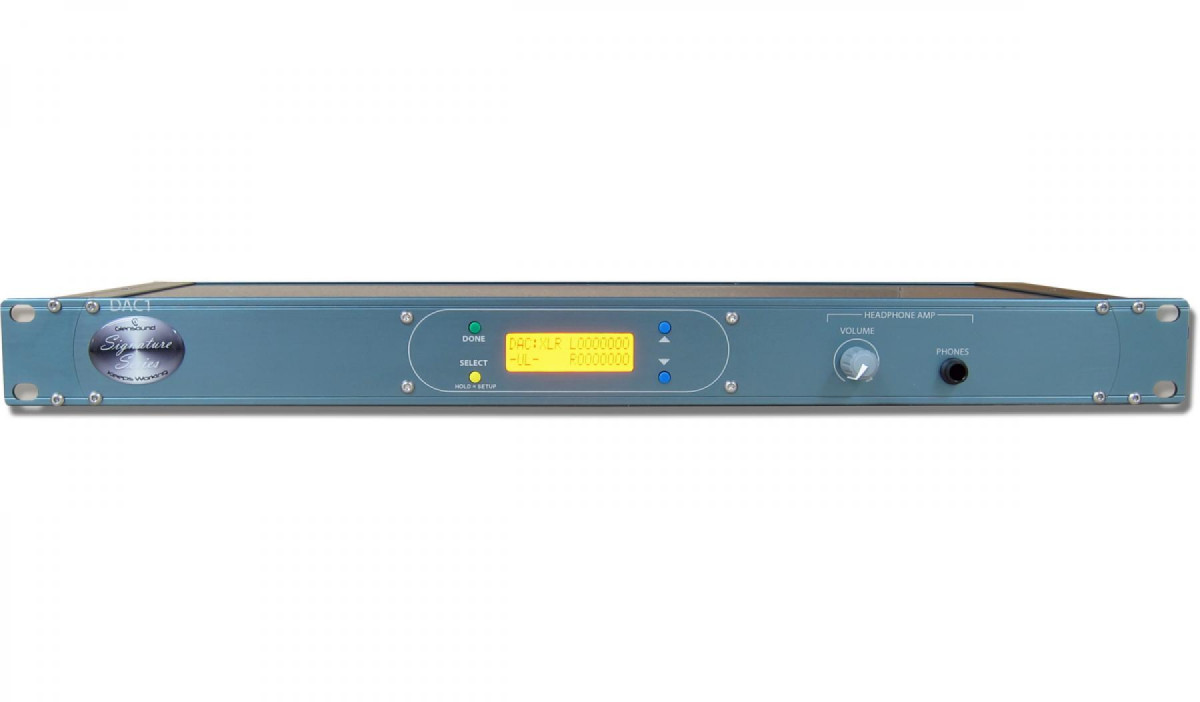

Signature DAC 1
Stereo Digital To Analogue Converter

Features Description General Specification Example Of Use Downloads Ask a Question
  • Modern high quality Digital to Analogue audio converter
  • Analogue output on 2 x 3 pin XLR plugs
  • Analogue output also available on 2 x RCA phono sockets
  • Digital input available on 1 x AES on 3 pin XLR socket
  • Digital input also available on 1 x S/PDIF on a phono socket
  • Digital input also available on optical TOSLINK
  • Front panel headphone connection for monitoring
  • Front panel display for easy setup
  • Mains powered and external DC
  • Sample frequency up to 192k

The Signature DAC 1 is a broadcast specification, stereo digital to analogue audio converter.

The digital inputs are available separately in three formats:
- 3 pin XLR using AES
- RCA phono plug using S/PDIF
- optical connectors using TOSLINK

The analogue outputs are available separately in two formats:
- balanced XLR connections
- unbalanced RCA phono connections

The front panel features a 6.35mm stereo jack socket for headphones monitoring, with a full size pot to adjust the volume level.
A front panel screen shows current operation mode and allows configuration of all unit parameters.

Power is provided by an internal switch mode power supply, with a wide input range.

There is also an input for external 12v DC power. The 12v DC input can be connected to the optional Signature PS1external DC Master Power Station, for situations where a redundant power supply is desirable.

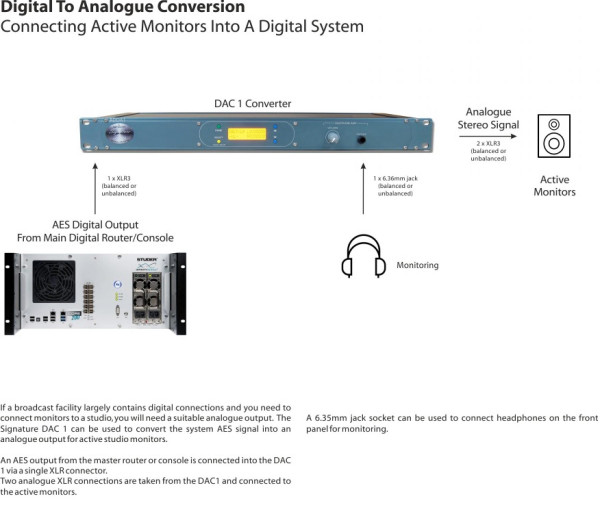

The Signature DAC1 converts a digital input signal into a stereo analogue output.

The single digital input is available on three different connections:

  • 1 x S/PDIF on a phono socket
  • 1 x optical TOSLINK
  • 1 x AES on 3 pin XLR socket

This is converted and made available as a stereo output via two different analogue connections:

  • 2 x 3 pin XLR sockets
  • 2 x RCA/phono sockets

System configuration is made available by a front panel LCD configuration screen.  The front panel also has a 6.35mm jack socket for connecting a pair of headphones for monitoring the audio signal.  There is a level adjust for the headphones.


Signature Series Standard Features

19" Rack Mount Ears
A Signature unit can rack mount in a 1U 19” rack, regardless of the size of the unit.  Rack ears are included as standard with every unit.

Front Or Rear Mounting
A Signature unit can be rack mounted via the front panel or if it is more convenient, via the rear panel by simply swapping the rack ears over.

Side Wings For Flat Surface Mounting
A Signature unit has side wings with mounting holes at the top and bottom, allowing flush fixing from above OR underneath.

Internal Switch Mode AC Power Supply
A Signature unit has an internal switch mode AC power supply, allowing worldwide power connections from 100-240v via an IEC socket.

12V DC Power Connection
All Signature units (except PS1) have a 4 pin XLR ±12V DC  socket for connection to the PS1 Power Station.  This can act as the primary or backup power source.

Quick Find Manual
A Signature unit has a QR code attached.  This can be scanned to simply and quickly locate the manual and technical information.

Other

  • Neutral colour scheme to compliment Equipment Scheme
  • Rack screws included
  • Modern design

AUDIO

Digital Inputs
Sample Frequency Rates: 44.1kHz to 192kHz
Resolution: up to 24 Bit
0dBFs equivalents: +18dBu, +12dBu, +6dBu, 0dBu
Physical Intputs: AES/EBU Balanced XLR
                         S/PDIF RCA Phono
                         TOSlink optical

Analogue Outputs
Output impedance: 110 Ohms
Balanced Output Connectors: Neutrik XLR 3 pin plugs
Unbalanced Output Connectors: Gold Plated RCA Phono sockets
Noise: -108dBFs
Frequency Response: >-0.5dB 15Hz to 22kHz @48k sampling
THD + Noise: 0.001% @ 1kHz

Headphone Output
Output Gain Range: +10dB to Off
Headphone Impedance: 100 - 1000 Ohms
Maximum Output Level: +18dB into 600 Ohms

POWER

Mains Input:  Filtered IEC, 100 to 240VAC 47 - 63Hz
Internal Mains Fuse:  20mm 1A Anti Surge
DC Input:  4 Pin Neutrik XLR plug +/- 12V
DC Consumption:  +12V 200mA, -12V 100mA
AC Consumption: 4 Watts

PHYSICAL

Size:  445 x 163 x 44mm (LxDxH) no rack ears, 482mm 19” (1RU) with rack ears
Weight:  1.35kg
Shipping Weight: 2.8kg
Shipping Carton:  Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
Mechanics:  All aluminium construction, anodized and laser etched

INCLUDED ITEMS

Mains Lead: 2 metre long (UK & Europe only)
Rack Bolts: 4 off Pozi head M6
Feet: 4 off rubber stick on feet
Handbook: Full A4 handbook available to download and linked by QR code on device
Quick Start Guide: Printed A4 double sided quick start guide
