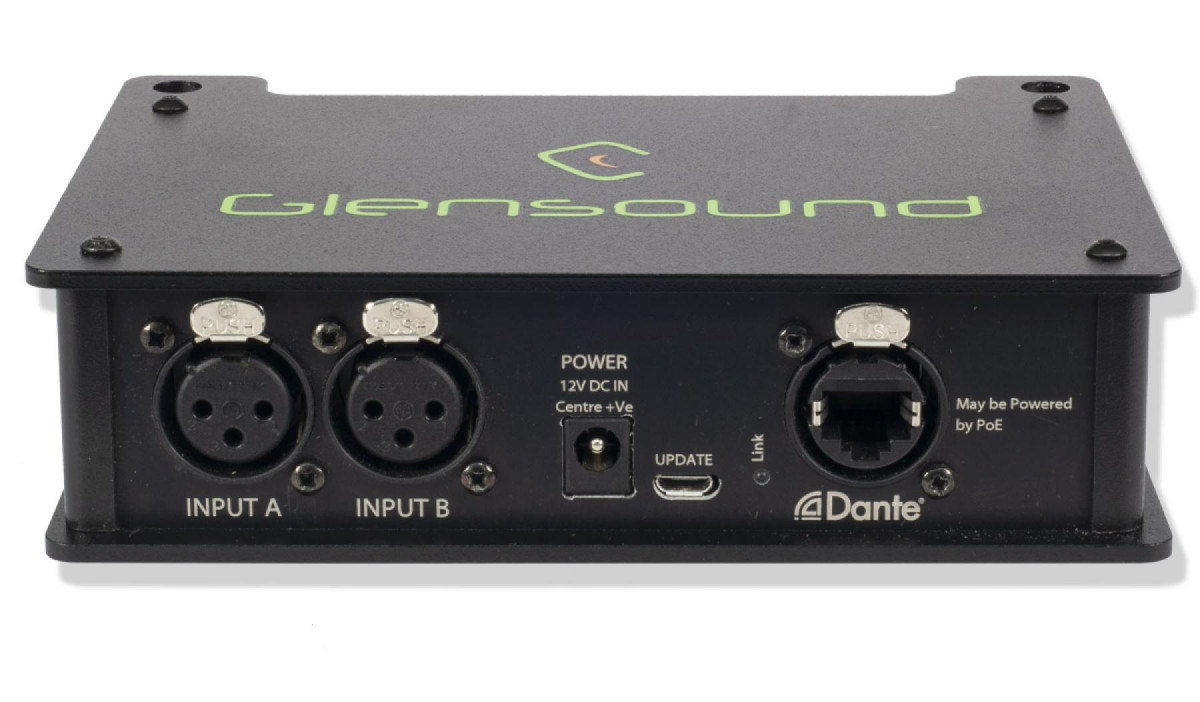

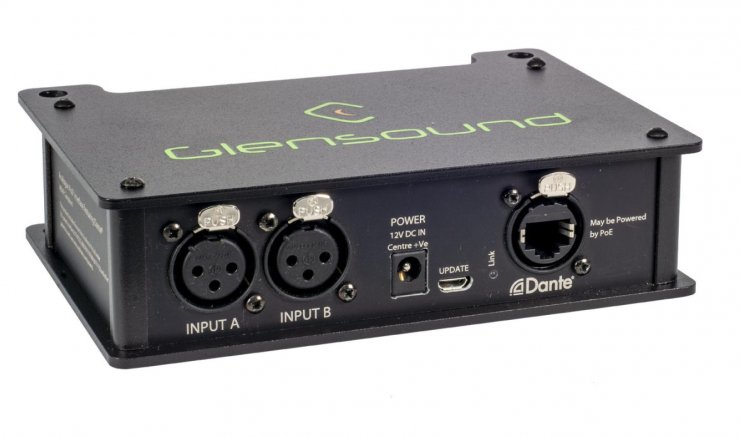

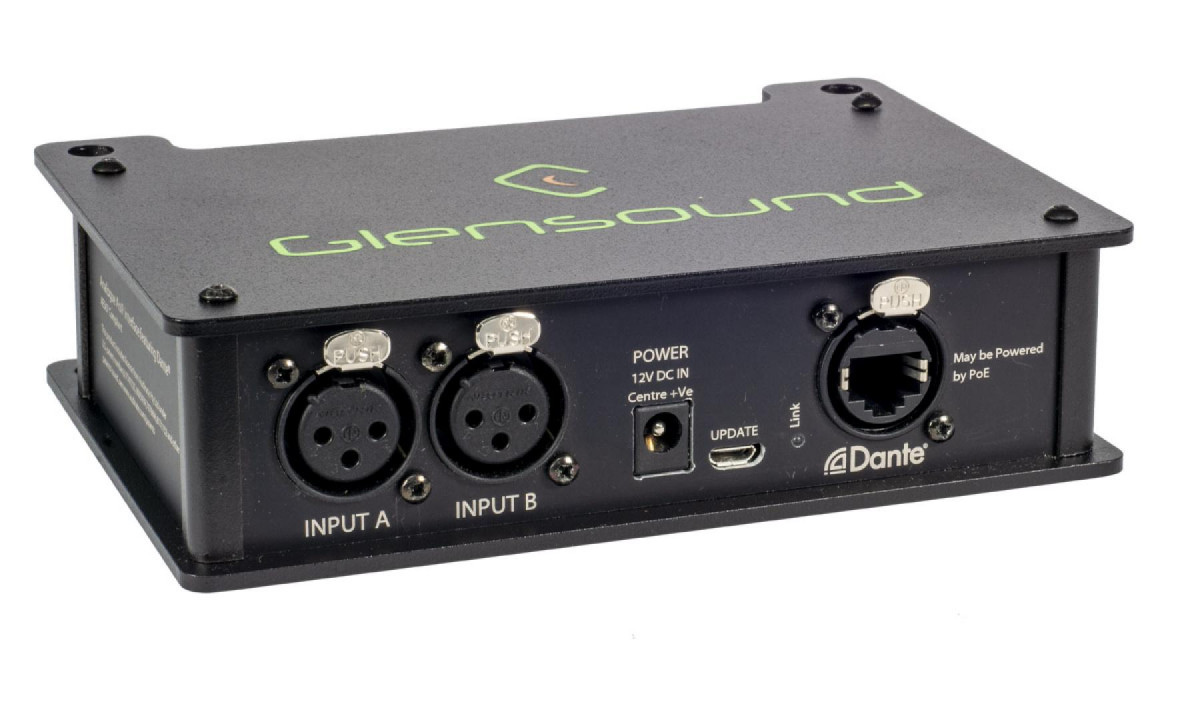

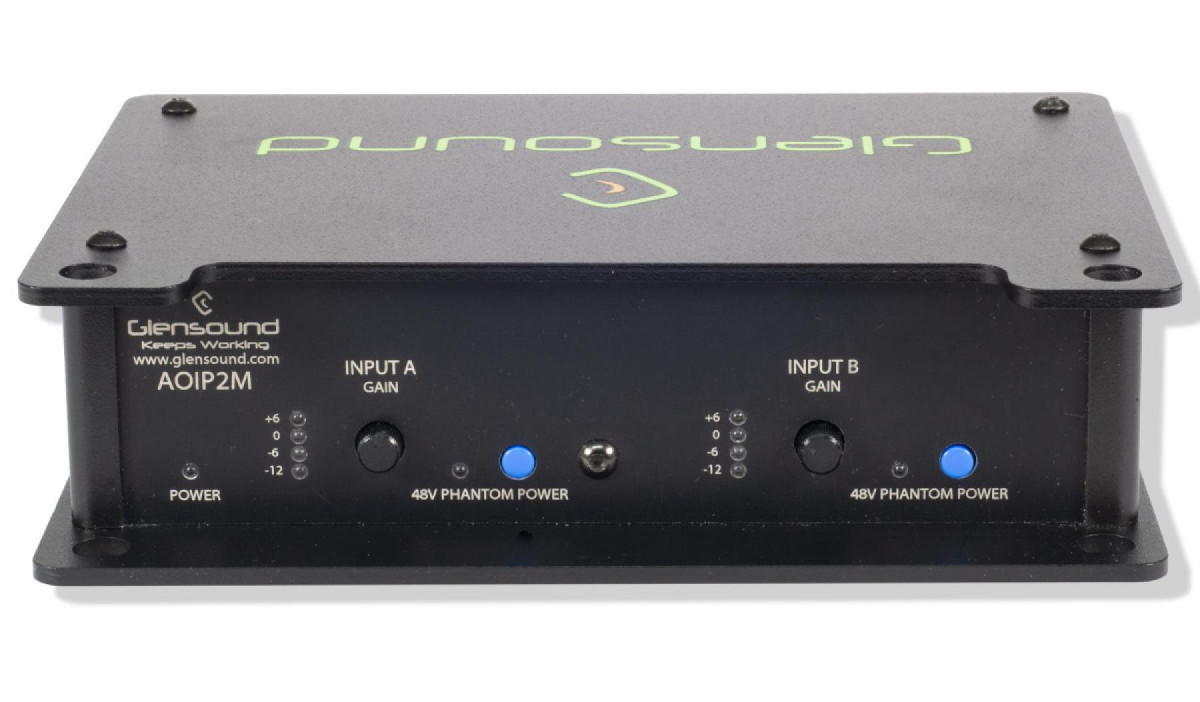

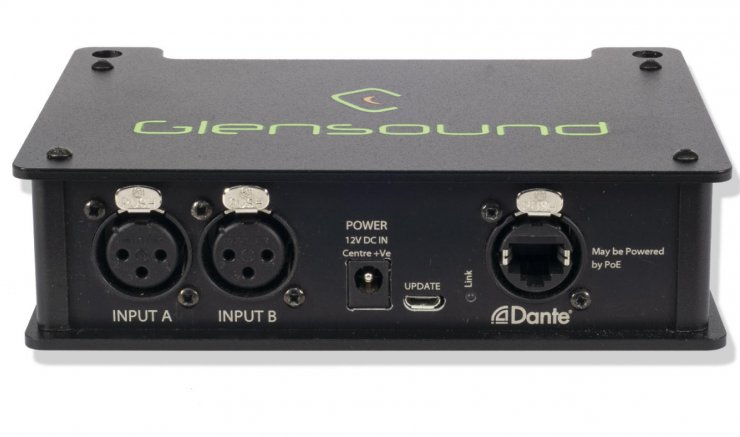

AOIP2M Rear BAN AOIP2M Front BAN AOIP2M Angle BAN

AoIP2M
2 Channel Mic Amp Dante/AES67

Features Description Recording Interface Downloads Ask a Question
  • 2 analogue mic inputs on XLR
  • Selectable 48v
  • Independent gain controls
  • POE & 12VDC power
  • Up to 96k/24bit with Dante
  • Lockable Neutrik Ethercon RJ45

AoIP2M is packaged in small & rugged format and designed for outside broadcast, theatre and location applications.  There are also many applications using the AoIP2M successfully for connecting crowd/audience mics.

It has 2 microphone inputs with 48V phantom power switch and gain control. Designed to easily and quickly interface in to the Dante Network.

PoE power means that only a single cable is needed to connect to the network to carry both audio and power.

Robust construction with a simple interface.

The network can operate from 44.1-96 kHz using Dante, or 48kHz on AES67.

  • The AoIP2M provides 2 balanced microphone inputs on to the Dante®/ AES67 audio network
  • Simple PPM meter allows easy input level adjustment
  • Switchable Phantom power
  • Fixing holes in the top and bottom plates. This allows temporary fixing with cables ties or a more permanent solution with bolts or screws.

Using the Dante controller, simple channel selection allows a high quality balanced microphone feed on to the Dante network.
Used in conjunction with Dante Virtual sound card this allows you to record and edit with a DAW (digital audio workstation).
Because all the Dante connections are over Cat cables it offers the ability to easily
