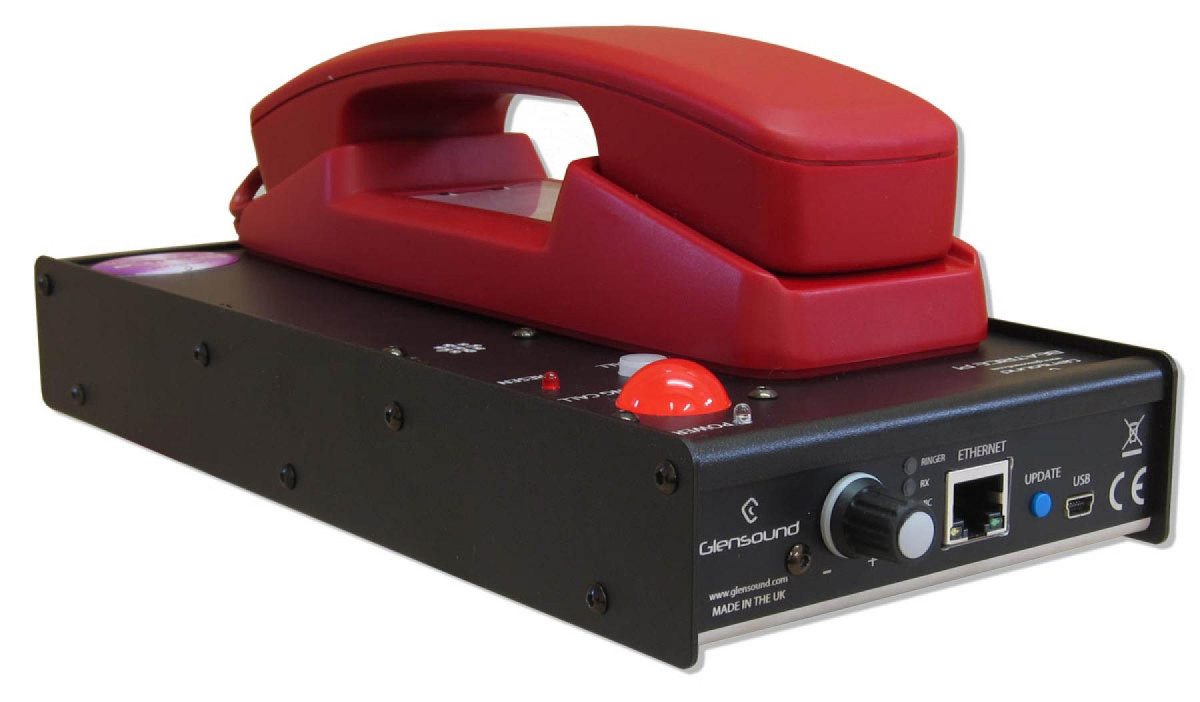

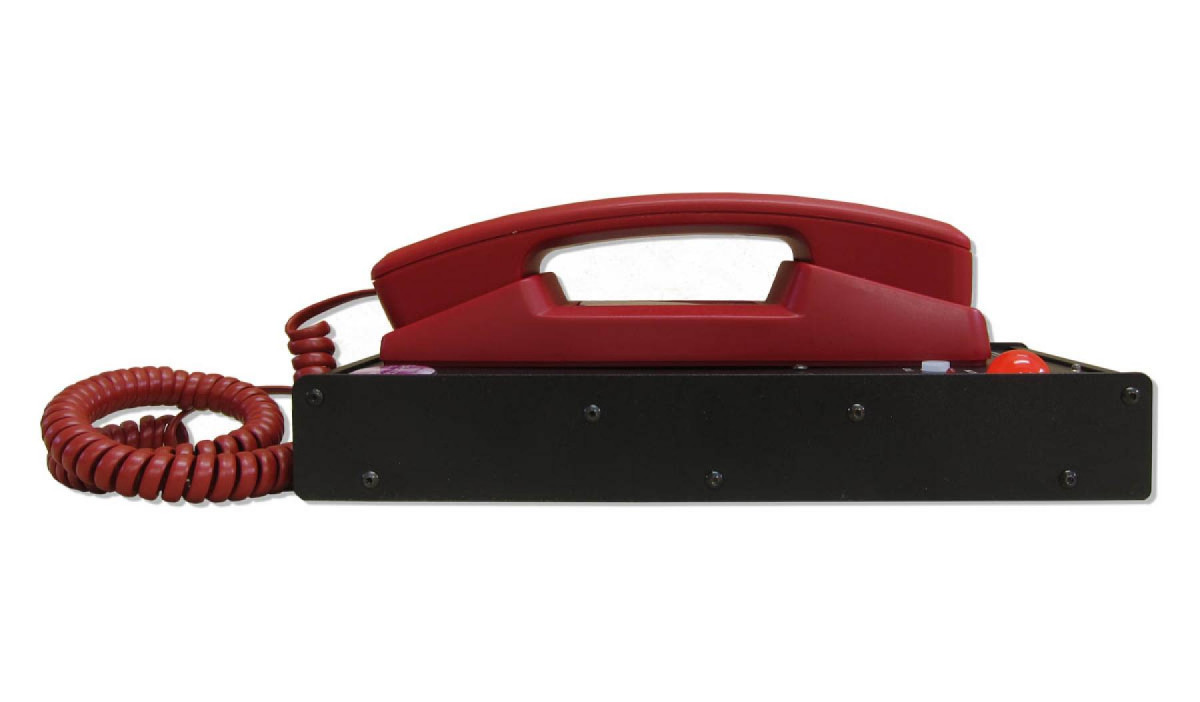

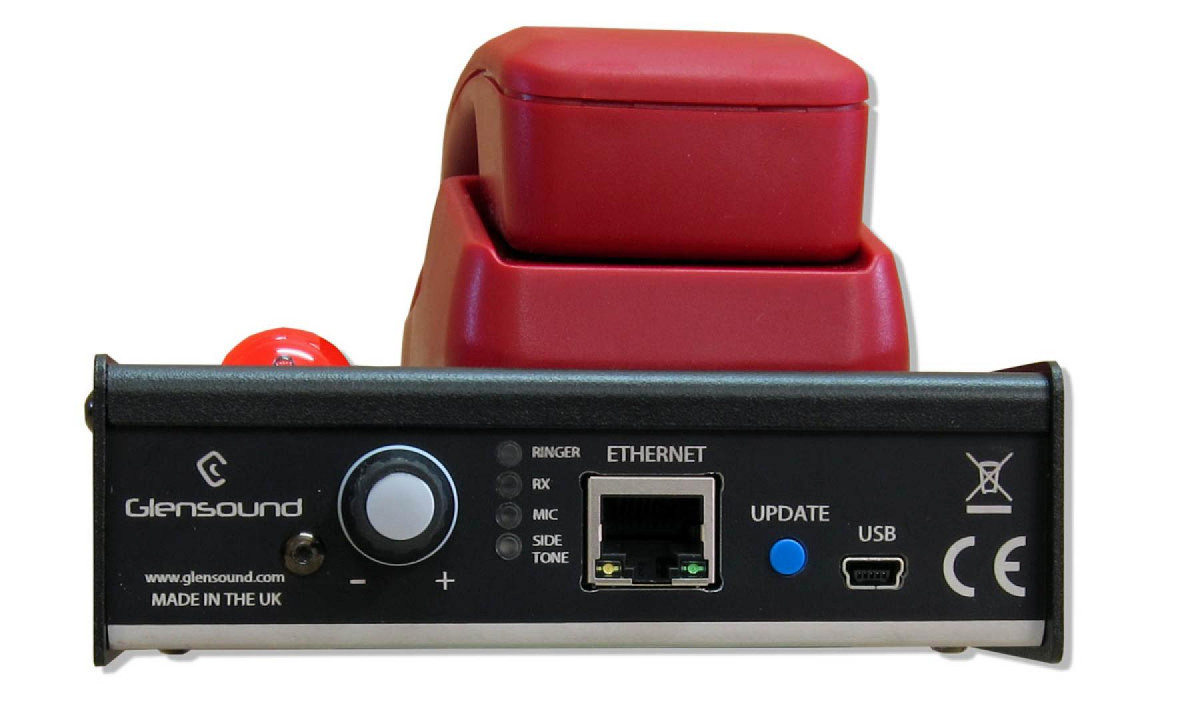

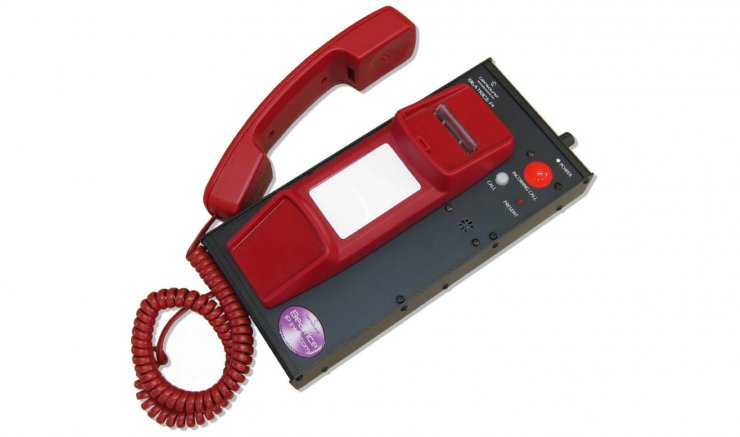

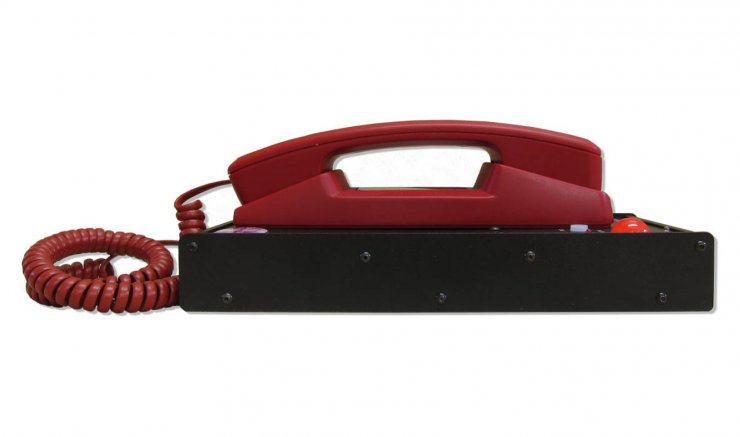

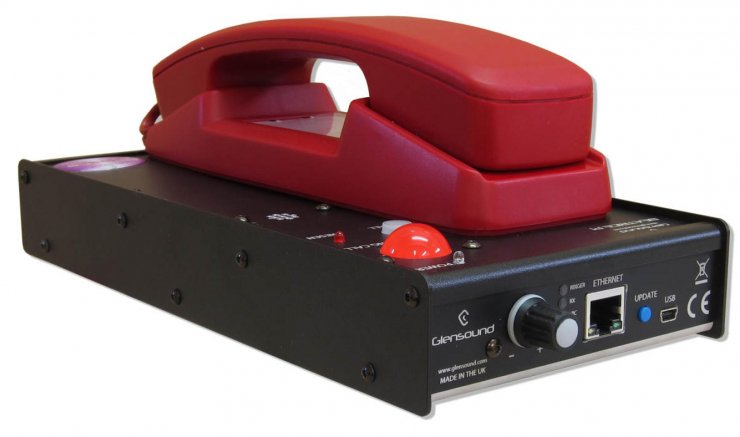

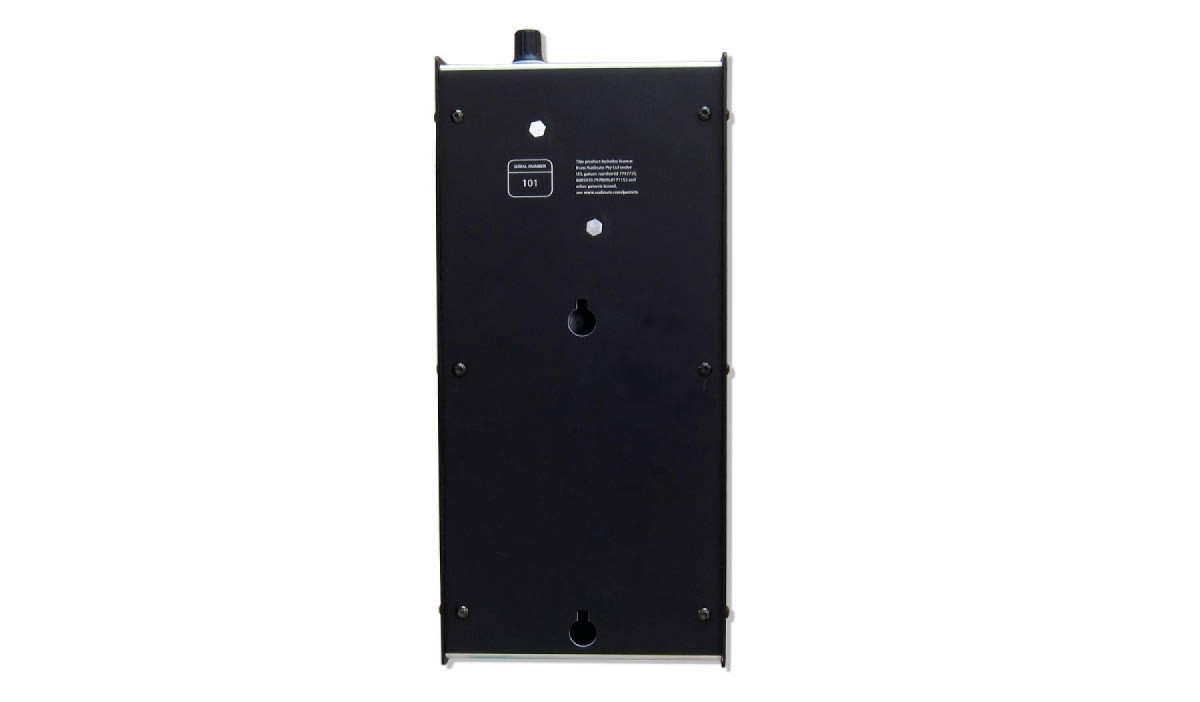

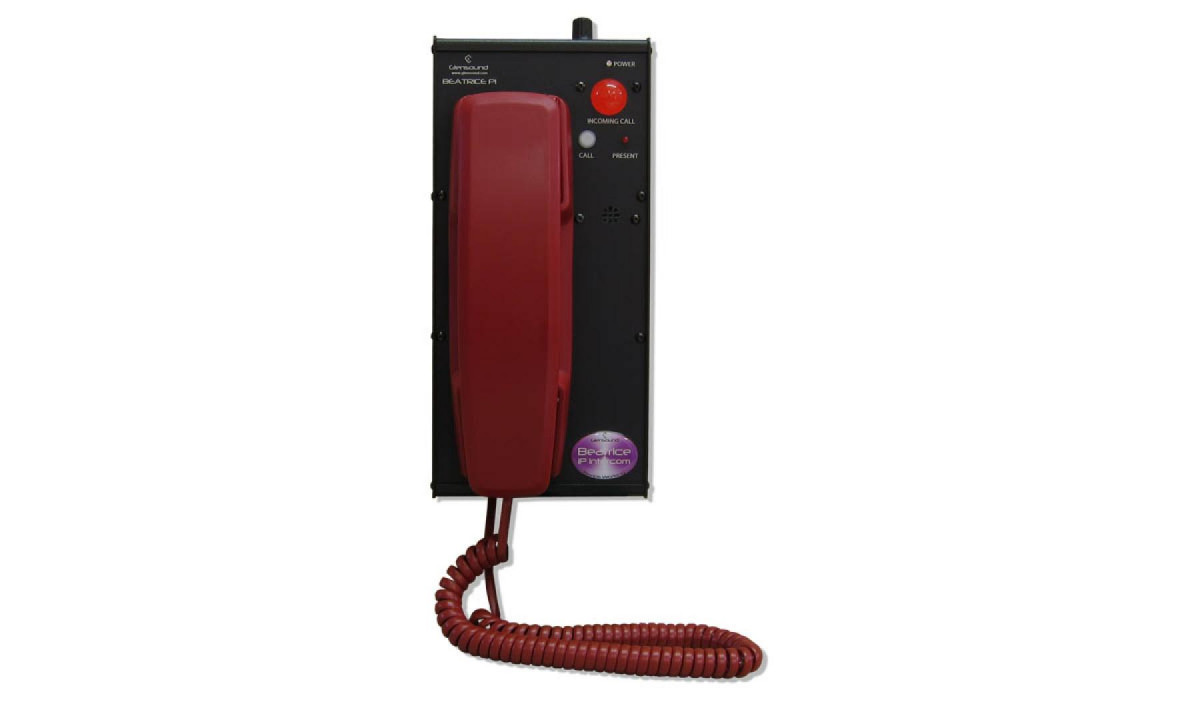

Beatrice P1 Side BAN Beatrice P1 Top BAN Beatrice P1 Front BAN Beatrice P1 Underside BAN Beatrice P1 Handset off BAN Beatrice P1 Angle BAN

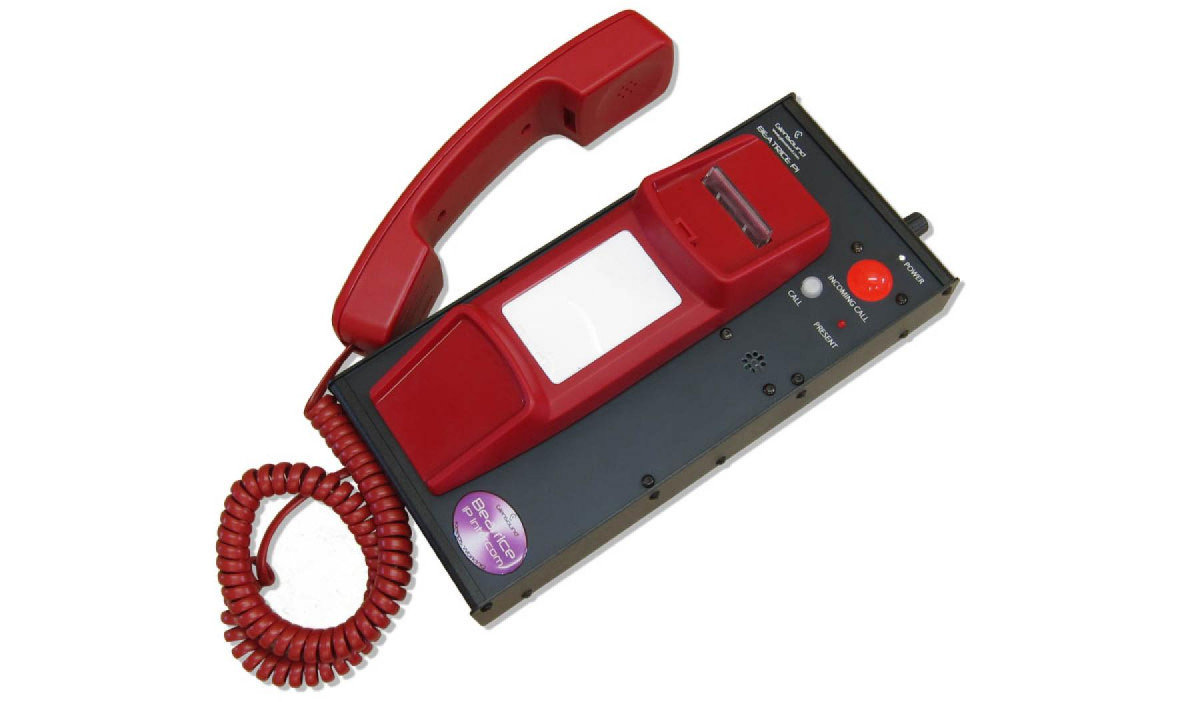

Beatrice P1
Phone handset Dante network intercom

Description...... Features Specification Beatrice Name DDM Ready Downloads Ask a Question

The Beatrice P1 is a one channel handset.

The user of the handset on the P1 can listen to one audio feed from the network and send one audio channel out onto the network. Depending upon how the Dante network has been routed, the incoming audio circuit and outgoing audio circuit can be different locations and the outgoing circuit can be routed to multiple loctions.

Audio to / from the handset is automatically turned on when the handset is off the hook and turned off when on the hook.

The Beatrice P1 unit is fully compatible with other manufacturers' equipment using the Dante protocol.

Mic Amp with compressor and Phantom Power
A good quality, clear sounding microphone amplifier designed for communication purposes is fitted to the output of the handset's microphone capsule, which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited. The gain of the microphone amplifier can be adjusted in the menu system to suit your working environment.

Handset Loudspeaker Amp With Volume Control
A low noise amplifier is fitted to provide the best possible output to the handset's earpiece. A volume control is provided to allow the user to easily adjust the volume of the handset’s earpiece.

Incoming Level Gain
As well as the volume control adjusting the audio level to the telephone handset’s earpiece, it is possible by using the menu system to adjust the gain of the incoming network audio circuit(s).

Single Cable For Power & Audio
One single standard RJ45 network cable provides both power (PoE) and bi-directional multichannel digital audio (Dante®/ AES67 compliant).

Call Function
A simple call function is inbuilt allowing the operator of one unit to call/alert other users that they want to communicate with them. To call another user the operator double taps the speak key of the channel they want to call (P2) or the dedicated call key (P1).  This then flashes a bright yellow call LED on the other user's keypanel (if fitted), which continues to flash until the call is answered. As well as flashing a LED at the receiving end of the call, an audible ‘beep’ can be set to alert the user that an incoming call has been placed to them.
When the P1 or P2 receives a call a very large red LED will flash to attract the operator's attention. An extra pair of small LEDs are also fitted on the P2 to indicate which of the 2 incoming channels generated the call signal.


It is possible to disable the call functionality if required.





NETWORK / DANTE® INTERFACE

Physical Interface: 1 of Rj45 Neutrik Ethercon
Audio Sample Frequency: 48kHz
Audio Resolution: 24 Bit
Transfer Rate: 100Mbps
Dante® Chipset: Ultimo UXT-01-004
Note: Audinate recommends no more than 10 Ultimo chipsets on one network UNLESS another Dante® device such as the Brooklyn Module (found in 8 channel Beatrice/ Dark units), is on the same network
AES67 Compliant: The Audinate Ultimo chipset is AES67 compliant

POWER

Consumption: PoE: Powered by PoE Complies to: IEEE 802.3af-2003 Classification Class 0

PHYSICAL

Chassis Mechanics: All aluminium with laser etched panels and light textured black powder coated sides
Telephone Handset: Interquartz 9826N
Size (Body excluding Beltclip): 120 x 280 x 95(inc handset 45 ex) mm (w x l x h)
Weight: 835g / 1lb 8oz
Shipping Weight: 2kg
Shipping Size: 62 x 41 x 17cms
Shipping Carton: Rugged export quality cardboard

ENVIRONMENTAL

Operating Temperature:  0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

CALL CIRCUIT

Inband Calling Frequency: 20kHz
Amplitude: -20dBFs
Duration Of Signal: 2 seconds
Compatibility: All Glensound Beatrice units & Studio technologies

INCLUDED ITEMS

Handbook: Physical A5 (download also available)
RJ45 Network Cable: 2 metre Cat5 RJ45plug /RJ45plug cable



The name Beatrice was chosen for our intercom range as she was the love of Dante Alighieri:

‘Dante had fallen in love with another, Beatrice Portinari (known as Bice), whom he first met when he was only nine.’

Source Wikipedia.

We hope that you too will fall in love with Beatrice.

Dante DDM Seal

                    The Beatrice P1 has been tested with and works with Dante Domain Manager.
