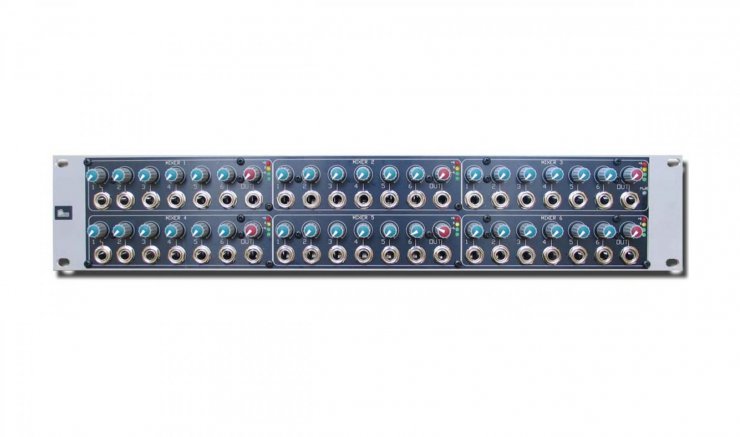

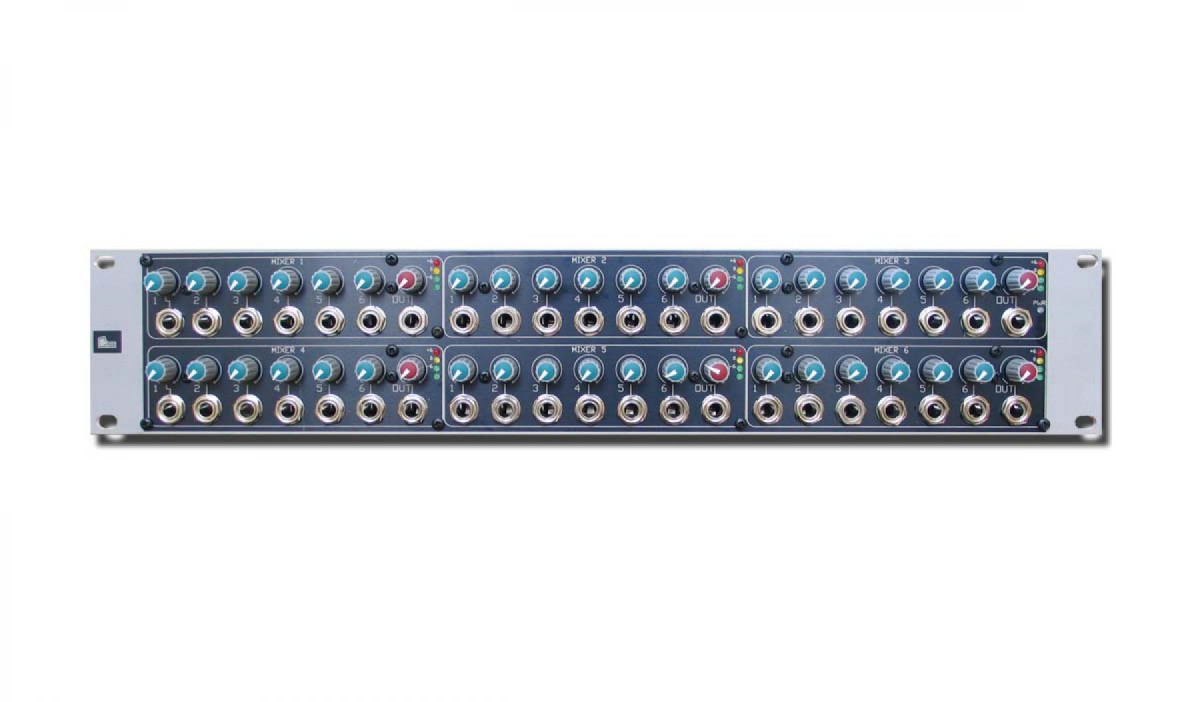

DITTO 616J
6 Input Mixer x 6 With Front Panel Jack Inputs

Features Description Specification Downloads Ask a Question
  • 6 separate mixers
  • 6 inputs per mixer
  • Front panel break jack or parallel input
  • 2u 19" subrack

The Ditto range of line level mixers offer multiple independent line mixers in compact 1u or 2u subracks. Where multiple talkback channels need to be mixed, or any number of
multiple sources need to be mixed, the Ditto units are a simple and cost effective choice. A typical use would be in outside broadcast or in studios for talk back mixing.

Every unit has the option of adding front panel patch points via 6.35mm jack sockets. There is one under each input and connects in parallel with the main rear input. There is also a jack socket under the output control for monitoring of the output mix.
There are two factory options with the ‘J’ Versions.
1. Inputs are in parallel with the rear inputs (Standard)
2. Inputs are break jacks and replace the rear inputs (add ‘B’ suffix)

GENERAL SPECIFICATIONS
1U SUBRACKS
HEIGHT 44mm
WIDTH 435mm
DEPTH (Excluding external connectors) 207mm
POWER INPUT 90 to 240 VAC 50 – 60 Hz

2U SUBRACKS
HEIGHT 88mm
WIDTH 435mm
DEPTH (Excluding external connectors) 207mm
POWER INPUT 90 to 240 VAC 50 – 60 Hz

ANALOGUE AUDIO INPUT SPECIFICATIONS
QUANTITY OF SINGLE CHANNEL INPUTS 16, or 18, or 32,or 38
CIRCUIT TYPE Electronically balanced
INPUT CONNECTORS (all units) 56 pin EDAC (Varicon) connector
INPUT CONNECTORS (J VERSIONS ONLY) 6.35mm jack socket
INPUT IMPEDANCE > 80K
INPUT LEVEL 0dBu
LINE INPUT GAIN RANGE Off to +10dB
MAXIMUM LINE INPUT LEVEL (UNITY GAIN) +24dBu
FREQUENCY RESPONSE (BANDPASS FILTER) <-1dBu@20Hz and 20kHz
DISTORTION <0.025% from 100Hz - 15kHz

LEVEL METERS (PPM STYLE)
QUANTITY OF LEDS 4 per meter
RANGE PER LED 6 dB
LED INDICATION RANGE +6 to -12dB

ANALOGUE AUDIO OUTPUT SPECIFICATIONS
QUANTITY OF SINGLE CHANNEL OUTPUTS 3, or 4,or 6, or 8
SOURCE Mix of all input channels
CIRCUIT TYPE Electronically balanced
OUTPUT CONNECTORS 20 pin EDAC (Varicon) connector
OUTPUT IMPEDANCE MAXIMUM OUTPUT LEVEL +24dBu
OUTPUT GAIN RANGE -20dBu to +10dBu
NOISE (ALL CHANNELS AT LINE UP) `

FRONT PANEL CONTROLS
INPUT GAIN Via front panel input pots.
OUTPUT GAIN Via front panel gain pot.
