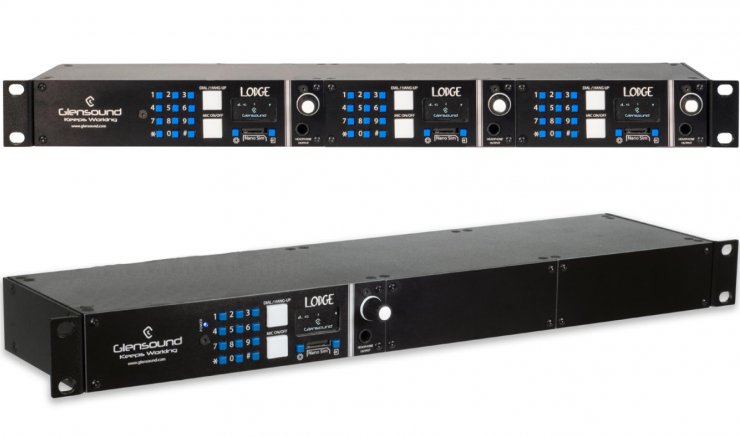

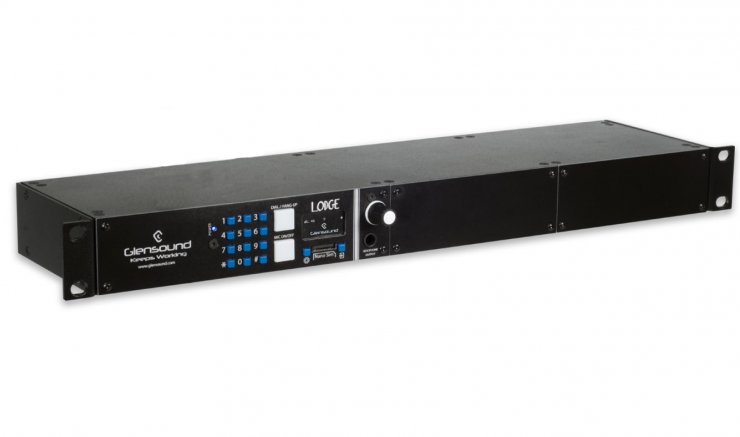

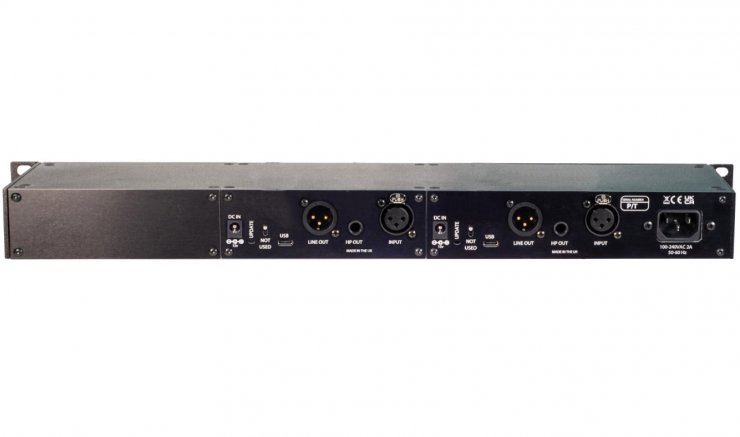

LODGE 2x units 1 and 3 update BAN LODGE Rear 2 updated BAN LODGE angle updated BAN

Lodge
Rack Mount Mobile Phone Hybrid

Features Description You Tube Specifications Downloads Ask a Question
  • 4G Vo-LTE Rack Mount Mobile Phone Hybrid
  • One x mic/48V/line inputs with adjustable gain
  • OLED screen

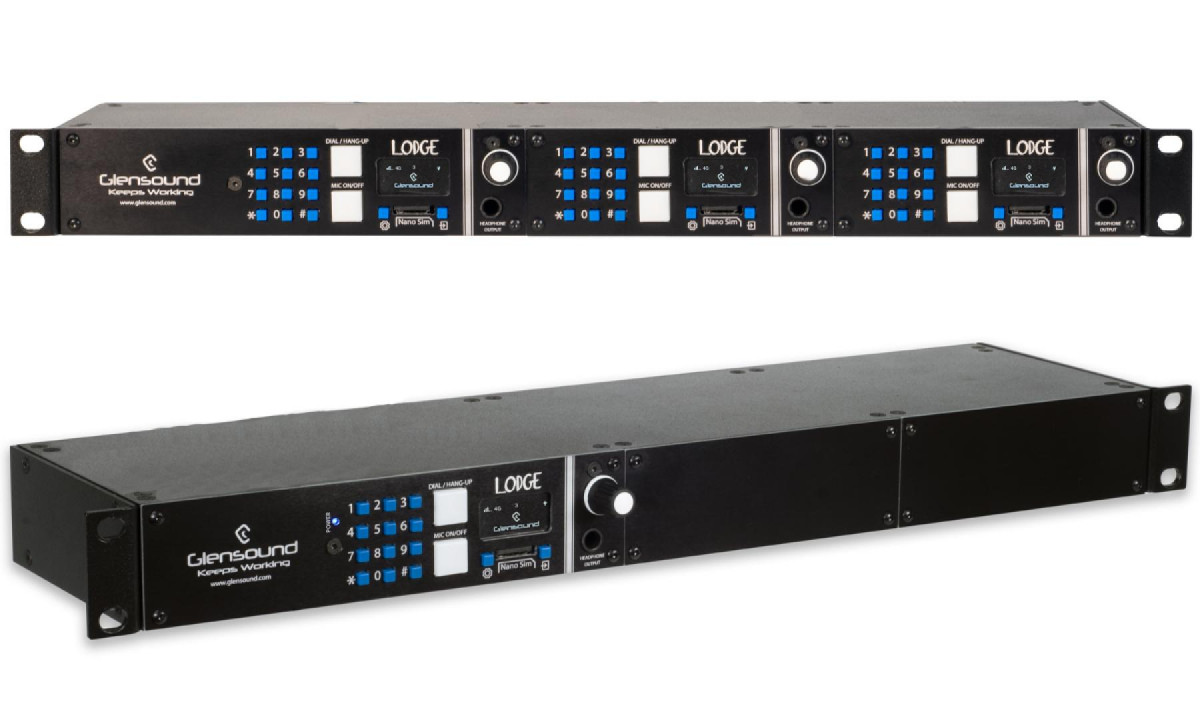

  • Available with 1, 2, or 3 phone modules
  • Mains AC, external DC or USB power

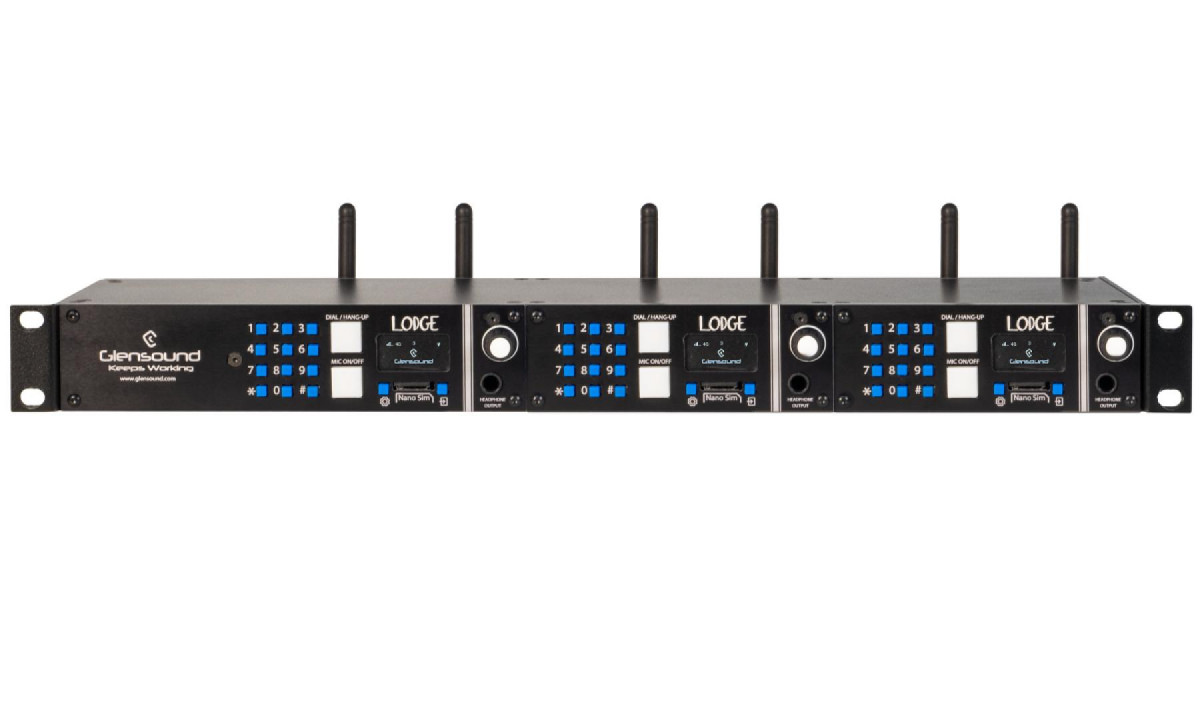

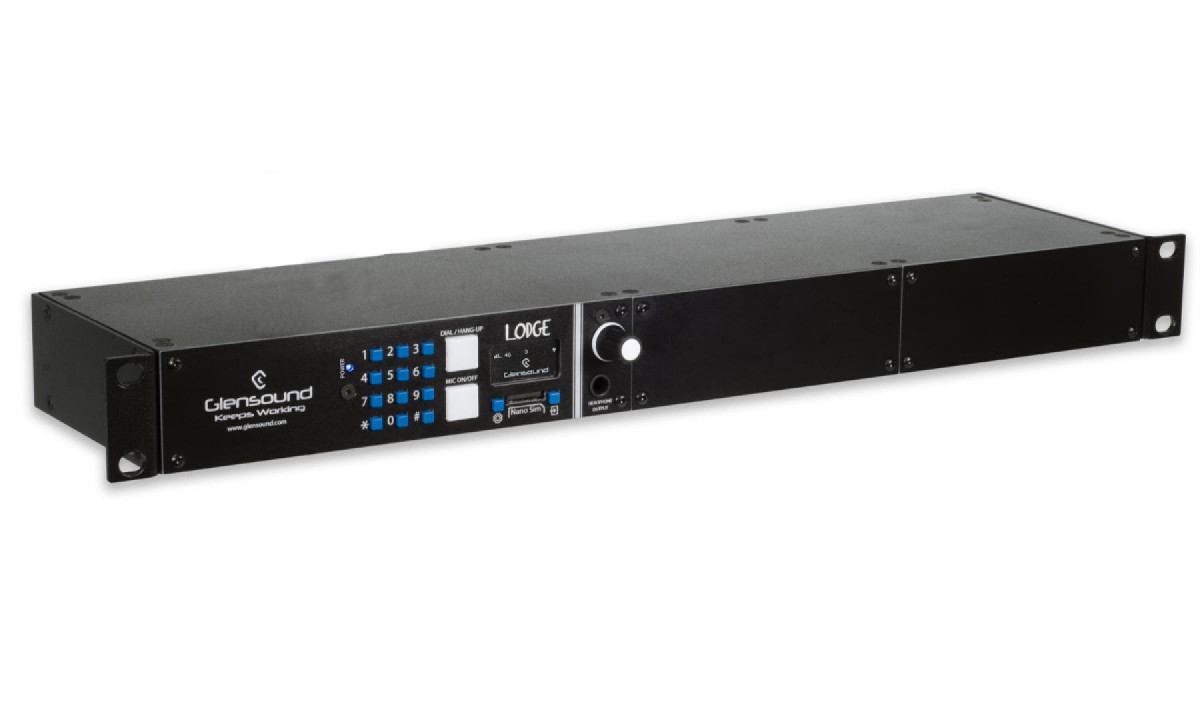

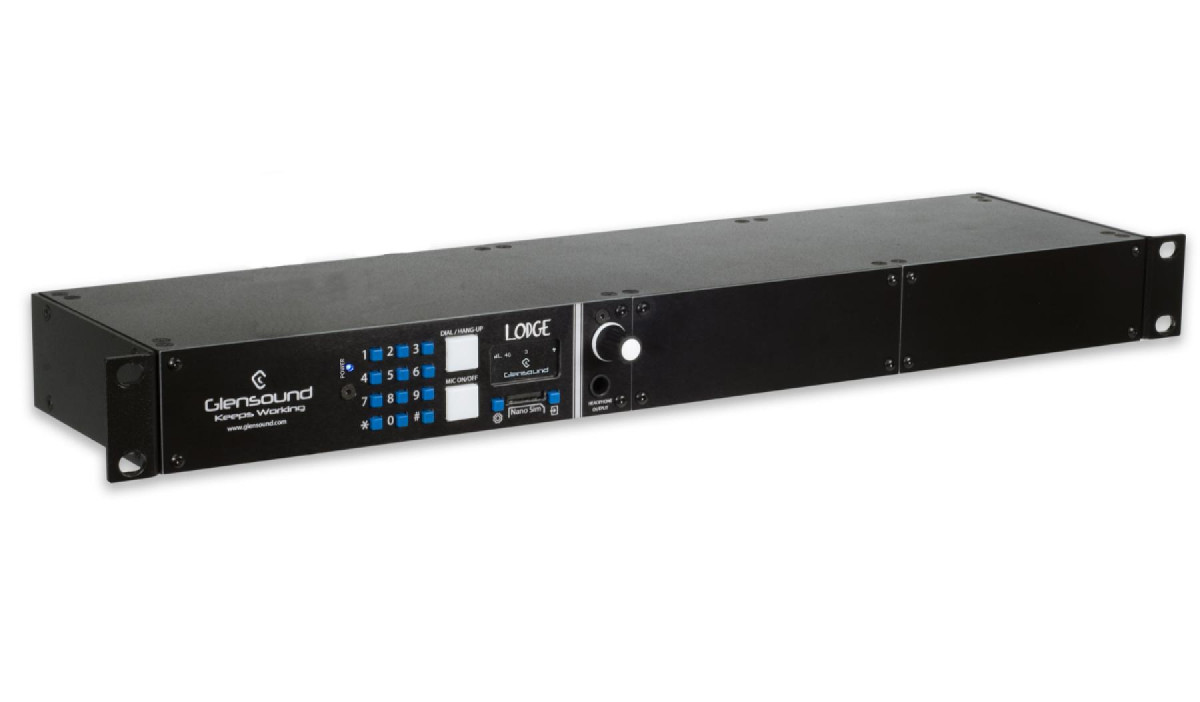

The Lodge is the 19" rackmount home of the NOMAD mobile phone hybrid.

The Lodge is the latest mobile phone hybrid from Glensound building on the success of the classic GS-MPI004(HD).  Using the latest phone module allowing greater worlwide compatibility and full HD voice over LTE for territories that no longer have 3G services.  The Lodge is also compatible on existing 2G and 3G networks.

Using the same network provider (where HD Voice is available) on either end of the call allows 7kHz audio links to be made for perfect speech performance.

The OLED screen now allows simple configuration and monitoring of call functions such as signal strength and caller ID, and the input now has a configurable on/off or cough button.

The line output can now bet set for a true balancing unit with just the isolated remote end audio, or it can be mixed with the input for a complete programme feed.

Mains AC, external DC or USB power.



NETWORK
Frequency Bands
LTE-FDD: B1/B2/B3/B4/B5/B6/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28.
LTE-TDD: B28/B39/B40/B41.
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Certifications Carrier: AT&T/ U.S. Cellular (America) *, Deutsche Telekom (Europe), Telus (Canada)

SPECIFICATIONS
2G Audio Frequency Response
Telephone networks provide 300Hz to 3.4 kHz audio bandwidth

3G/4G HD Voice Frequency Response
HD Voice provides 50Hz to 7kHz audio bandwidth

Algorithm
HD Voice is AMR-WB (G722.2)

Network Compatibility
Will operate on most mobile phone network and most SIM cards *

HD Voice Compatibility

Will operate on any compatible HD voice networks

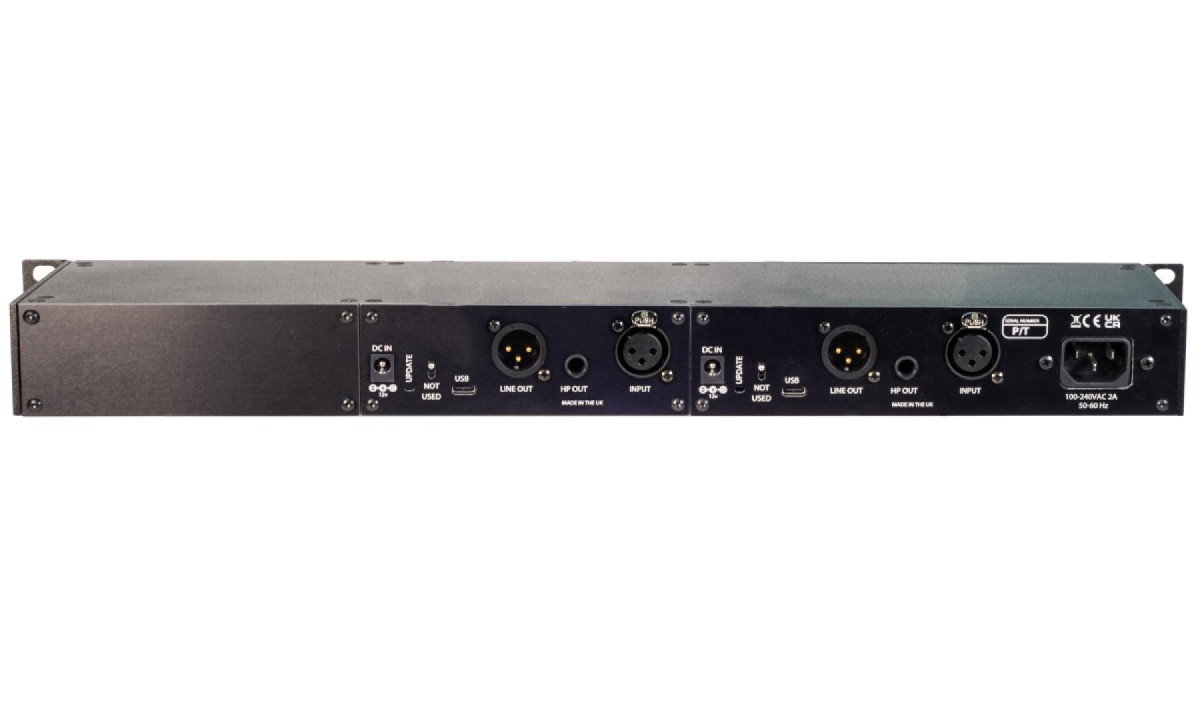

INPUTS AND OUTPUTS
Mic Inout Connector
Neutrik balanced XLR

Line Out
Neutrik balanced XLR

Headphone Out
6.35mm Jack Socket

Line in Level
odBu

Dynamic Mic Line Up
-46dBu

Phanthom Mic Line up
-46dBu

Line Input Gain Range
+/- 15 dB

Mic Input Gain Range Rate
+/- 15dB

Headroom @ Mic Line Up
30dB

Output Level
1dBu

Output Gain Control
Fixed

Max Output Level
+19dBu

POWER
Mains Input
Filtered IEC, 100-240VAC (+/- 10%) 50/60Hz

External DC Input

+10 to +15 VDC, 2.5mm barrel connector

USB
Type C connection

Power On LED
Bright Blue

AERIAL
Aerial Connector Type
2x SMA

Aerial Technology
Diversity

RF Output Power
2 Watts

PHYSICAL
Size
19" Wide 1RU high 140mm Deep

Weight
1.35 kg (with 3x Modules)

ENVIRONMENT
Operating Temperature
0 to +50 oC (32 to 122 oF)

Storage Temperature
-20 to +70 oC (-4°C to 158 oF)

Relative Humidty
0 to 95% non-condensing

INCLUDED ITEMS
Handbook
Available by Download

Aerial
2x 2.5 T Bar Antenna

* Please Check with Glensound on Network Compatibility
