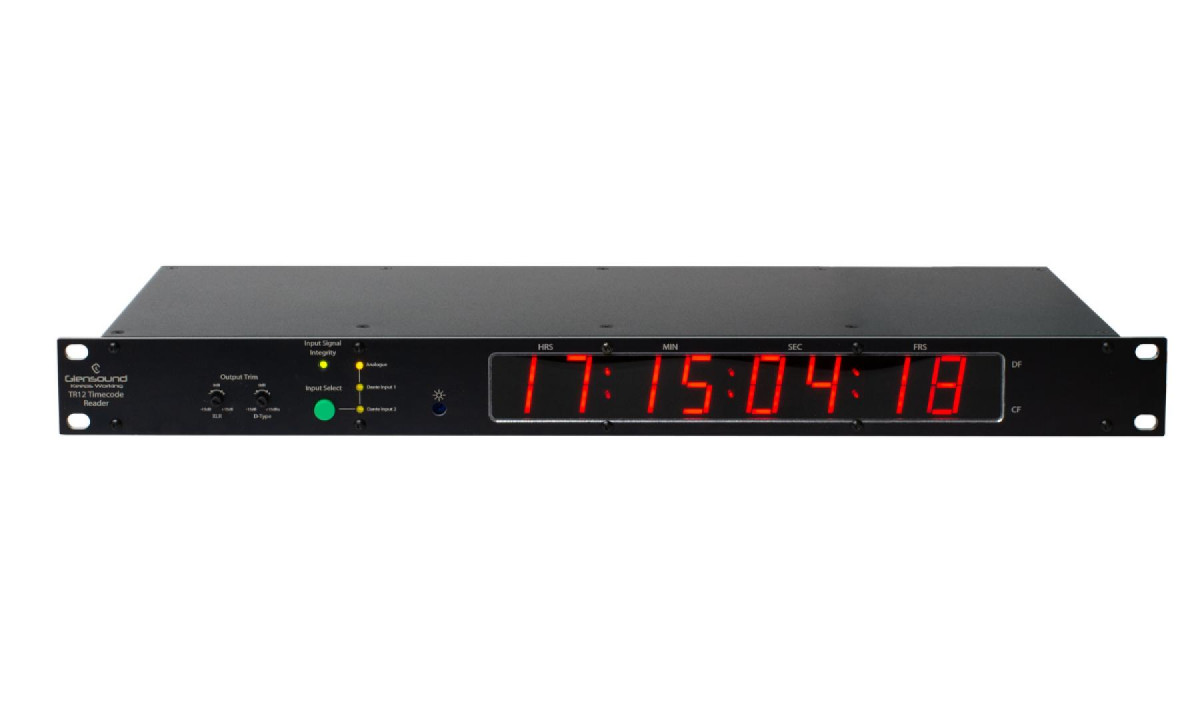

The TR12 provides a large and clear timecode display for situations where the size of the display needs to be as large as possible in a 1u space.  The red display is in hours, minutes, seconds, and frames.  The timecode input is via an analogue XLR connection or is switchable between two optional Dante network sources.

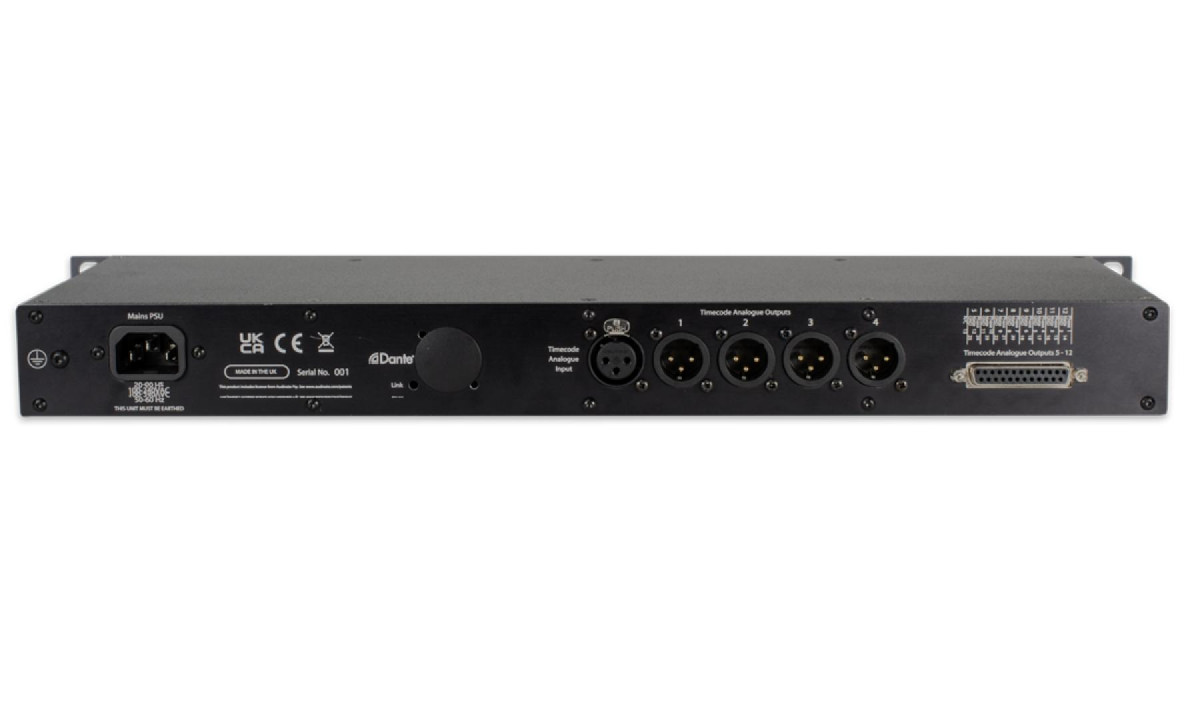

 There is also a further timecode distribution function.  There are four analogue outputs on XLR and a further 7 outputs on a dtype connection.  The XLR and dtype outputs have separate trim adjustment.  There is a brightness adjustment for the display and AC mains power supply.

Order Codes:

TR12 - Analogue input only
TR12D - Optional Dante card (due summer 2024)

• TR-12.Timecode Reader Manual V1
