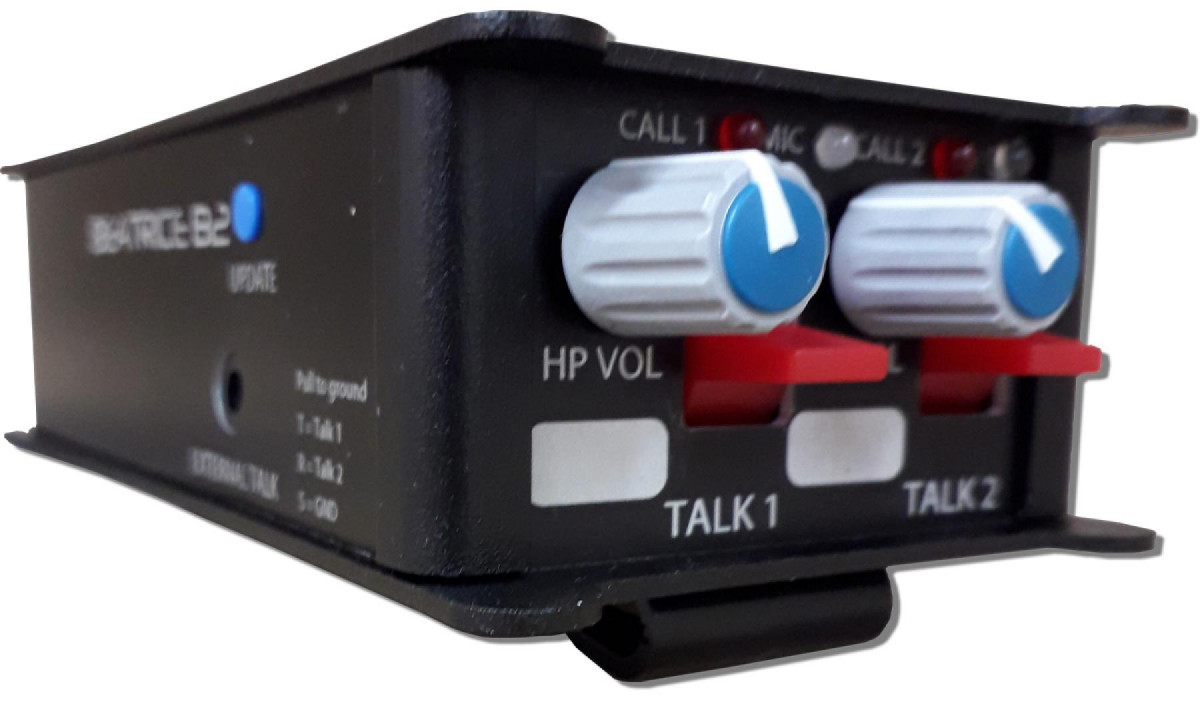

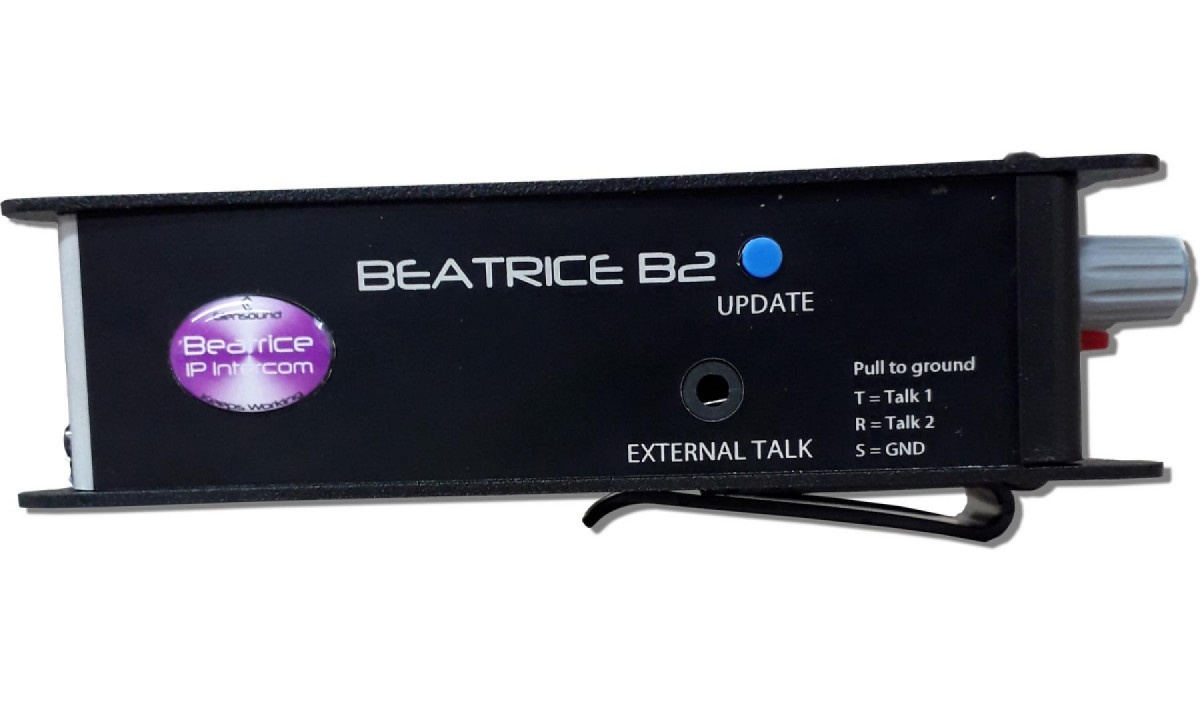

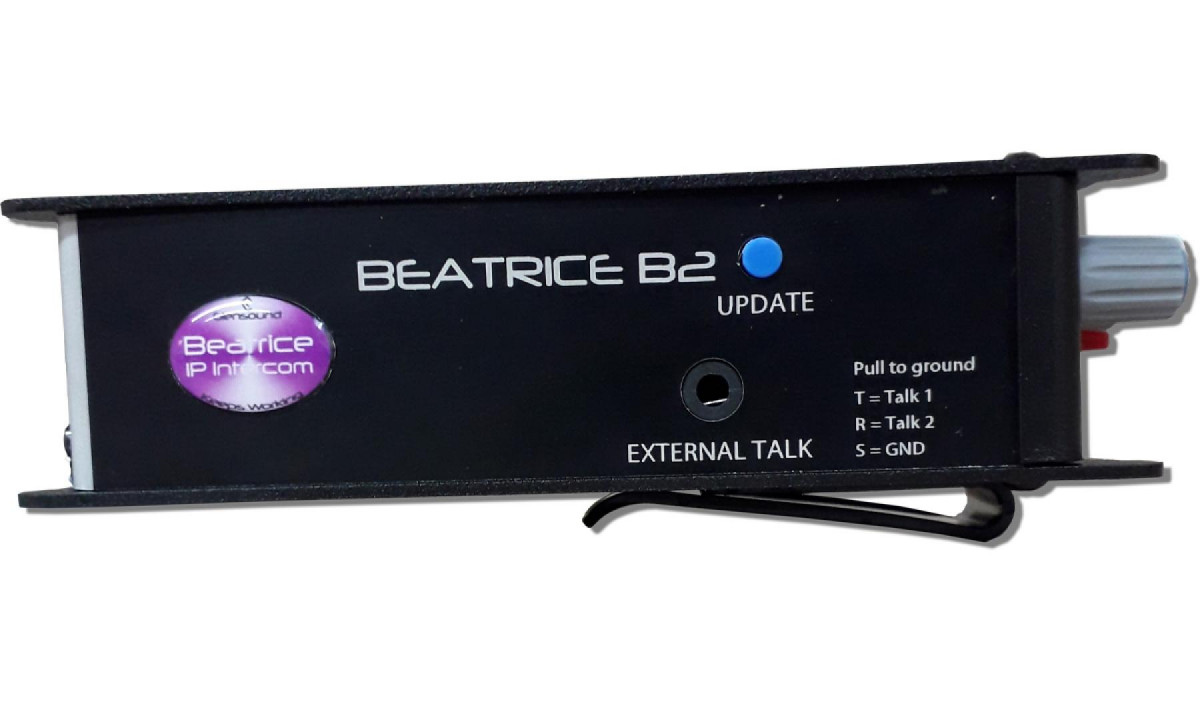

Beatrice B2 angle BAN Beatrice B2 Side BAN Beatrice B2 front BAN Beatrice B2 rear BAN Beatrice B2 beltclip BAN

The Glensound BEATRICE B2 is an ultra compact, robust, portable two channel beltpack intercom designed for broadcast, theatre and professional audio applications.

It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard ethernet networks. As such the BEATRICE B2 is also fully compatible with other manufacturers’ equipment using the Dante protocol. It is also AES67 compliant.

This small beltpack was designed to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.

Two Channel
One single user connected to the unit can listen and communicate with 2 other circuits on the network. Depending upon how the Dante network has been routed, the incoming audio circuits and outgoing circuits can be different locations.

Dante Routing & Partyline Mode
Audio routing to/ from other devices is setup using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for an incoming channel). An inbuilt partyline facility allows the incoming circuit to be routed to the output circuit making a simple partyline.

External Mic Input
A good quality, clear sounding microphone amplifier, designed for communication purposes, is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited. Twelve Volt Phantom power is also available and can be turned on/ off as required.

Volume & Panning

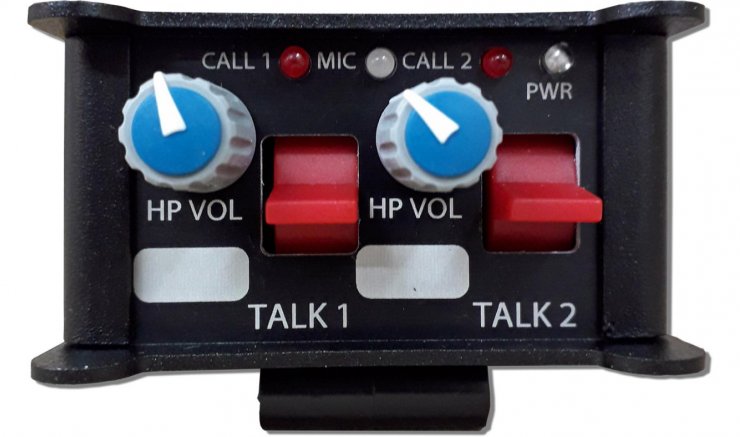

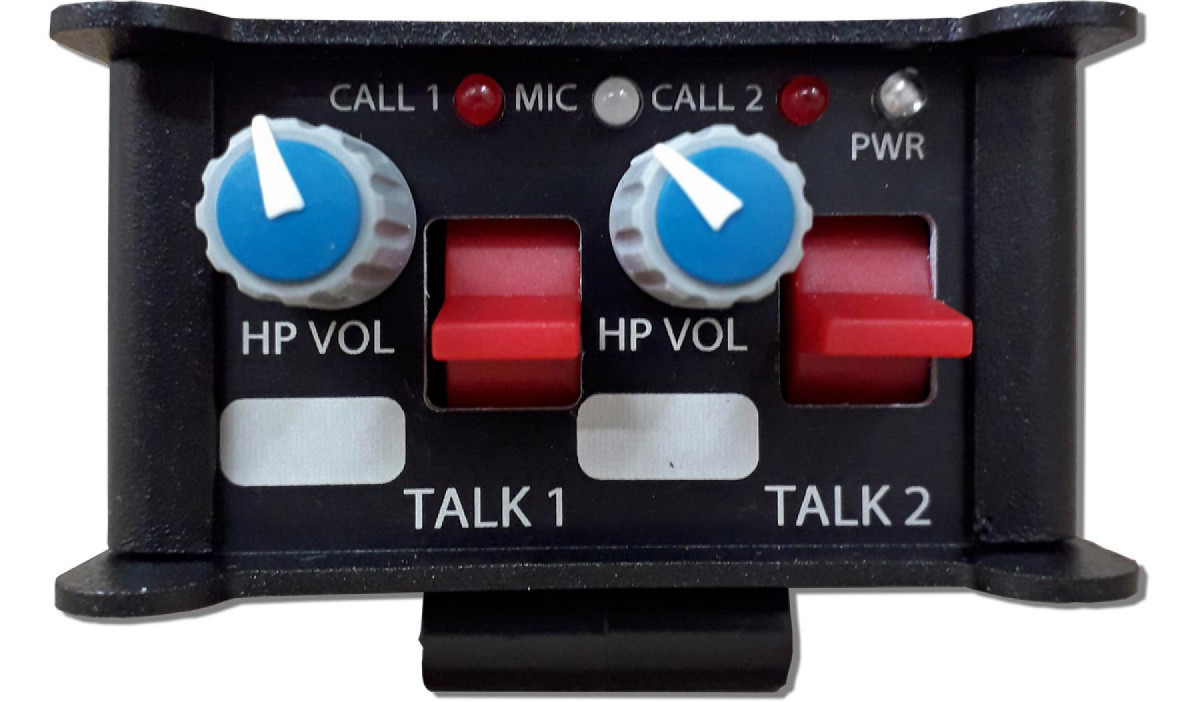

The front panel features two easy to use volume controls, one for each of the inputs.
When in configuration mode, these controls can also be used to pan the incoming circuit to one ear or the other.

PoE Powered
The Beatrice B2 is powered via the Ethernet cable by standard PoE (Power over Ethernet), which can be supplied by an external PoE switch or a midspan power injector.

Headphone Output
One of our unique headphone amplifiers is fitted to the Beatrice B2.  This allows either low or high impedance headphones to be used, and automatically adjusts the output level to match the impedance of headphones in use. The headphone amplifier is stereo and sources can be panned to left or right ears as desired. The unique headphone amplifier can also drive mono earpieces from its stereo output without any performance issues.

Multipin XLR Headset Connector

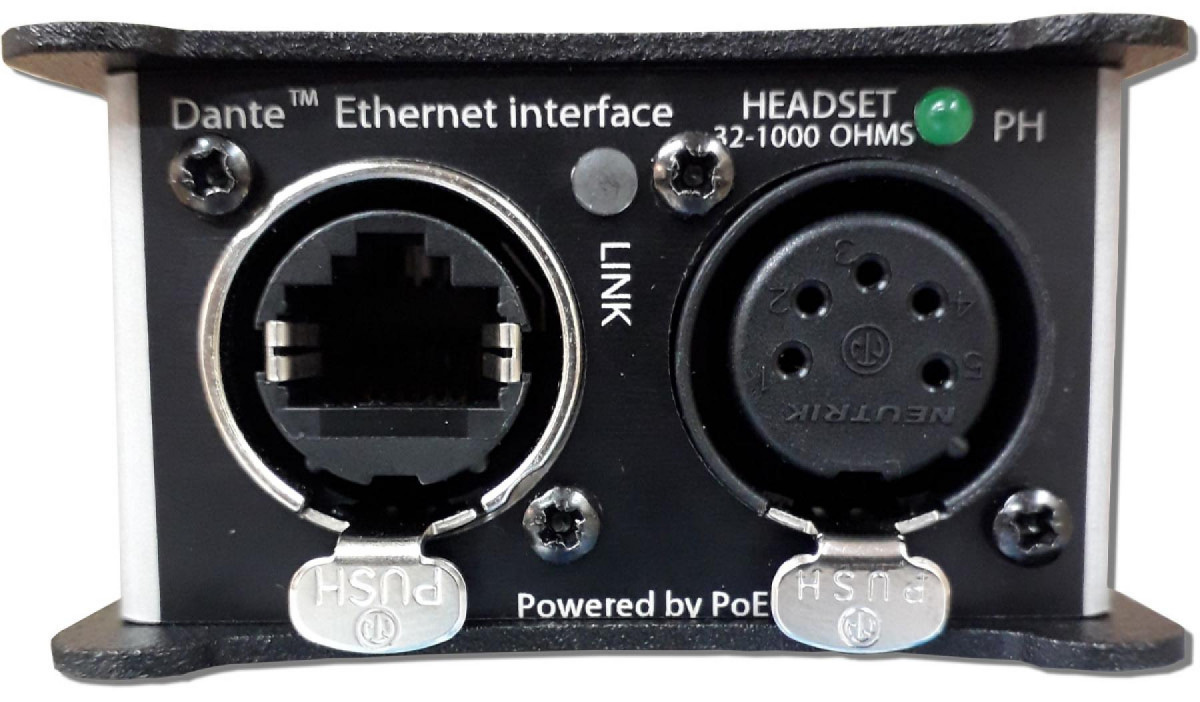

As standard the Beatrice B2 is fitted with a 5 pin balanced XLR socket for the microphone input and headphone output. It can also be supplied with a 4 XLR plug.

Call Function
A simple call function is inbuilt allowing the operator of one unit to call/alert other users that they want to communicate with them. To call another user the operator double taps the speak key of the channel they want to call, this then flashes a call LED on the other user's keypanel, which continues to flash until the call is answered. As well as flashing a LED at the receiving end of the call, an audible ‘beep’ can be set to alert the user that an incoming call has been placed to them.

Call/ Presence Indicator
Each channel has its own red LED that acts as a called/ presence detector on the incoming audio circuit. When audio is detected the LED is lit and it stays lit for a short period after the incoming audio stops. When an incoming call is detected then the LED will flash.

Ultra Compact

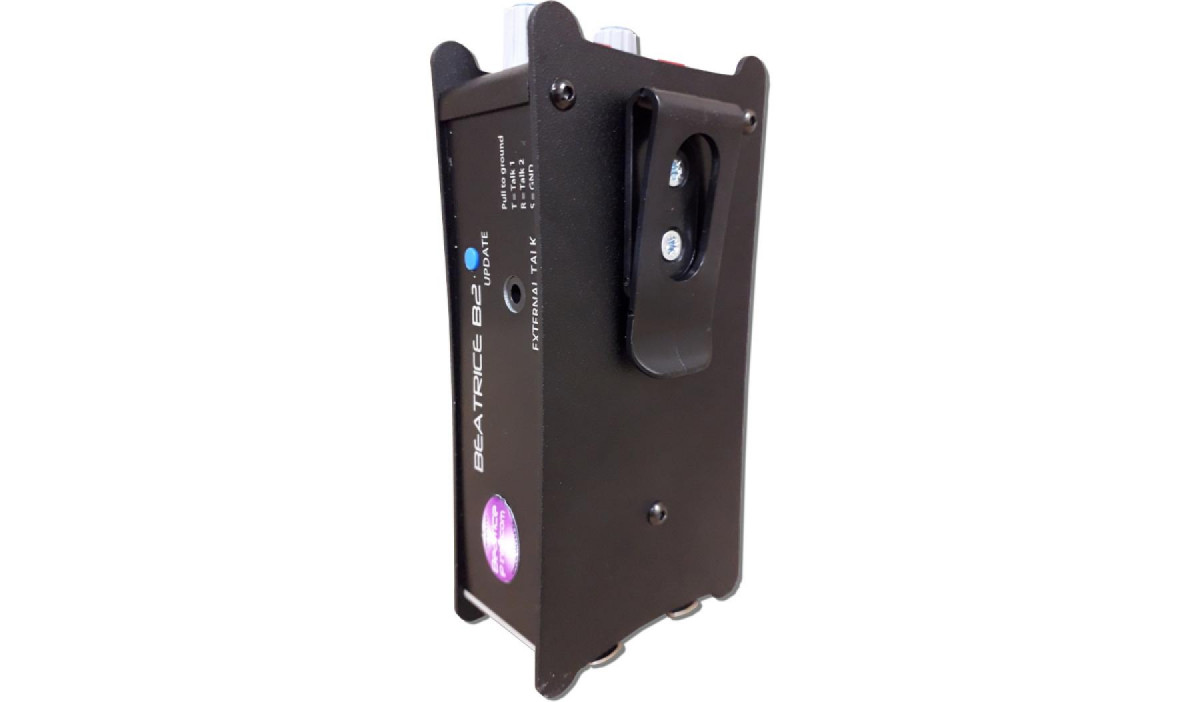

The Beatrice B2 is manufactured using lightweight but strong aluminium. It has laser etched aluminium front & rear panels and powder coated aluminium sides. The form factor has been carefully designed to be as small as the internal electronics allow whilst keeping user buttons, microphone and headphone output ergonomically positioned for optimum user experience. Weighing in at just 230g it is light enough to transport easily and at just 65 x 131 x 36mm it won’t get in the way.

NETWORK
Physical Interface: 1 off RJ45 Neutrik Ethercon
Audio Sample Frequency: 48kS/s
Transfer Rate: 100Mbps
Dante® Chipset: Ultimo UXT-01-004 (Note: Audiante recommend no more than 10 Ultimo chipsets on one network UNLESS another Dante® device such as the Brooklyn Module (found in 8 channel Beatrice/ Dark units), is on the same network )
AES67 Compliant: The audinate Ultimo Chipset is AES67 Compliant.


AUDIO
Mic Gain Range: 60 to 20dB
Phantom power: 12 Volts
Equivalent Input noise: 110dB (20-20Khz RMS  weighted 300 Ohms)
Headphone Impedance: 32-1000 Ohms
Max headphone Output Level: +10dB into 600 Ohms
Headset Connector: 5 pin XLR Socket fitted as standard, 4 pin XLR plug (order code B2 4pin)
Band Pass Filter: 50Hz to 15kHz

CALL CIRCUIT
Inband Calling Frequency: 20kHz
Amplitude: -20dBFs
Duration Of Signal: 2 Seconds
Compatibility: All Glensound Beatrice units & studio technologies

POWER
Power Over Ethernet (PoE): 48V
Consumption: 3 Watts

PHYSICAL
Mechanics: All aluminium with laser etched panels and light textured black powder coated sides
Beltclip: Long life spring loaded plastic
Size (Body Excluding Beltclip): 65x132x37mm (WxLxH)
Weight: 648g / 8.8oz
Shipping weight: 0.75
Shipping Size 31x26x9
Shipping Carton: Rugged export quality cardboard

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS
Handbook: Physical A5 (download also available)
RJ45 Network Cable: 2 metre Cat5 RJ45 plug / RJ45 plug Cable

The name Beatrice was chosen for our intercom range as she was the love of Dante Alighieri:

‘Dante had fallen in love with another, Beatrice Portinari (known as Bice), whom he first met when he was only nine.’

Source Wikipedia.

We hope that you will also fall in love with Beatrice.

As standard the Beatrice B2 is supplied with a 5 pin XLR headset interface.

It can however be ordered with a 4 pin headset interface instead.

Part numbers are:

Beatrice B2 (5 Pin XLR)

Beatrice B2-X4 (4 Pin XLR)

Wiring for the headset interfaces is to common standards as detailed below.  It may be possible to provide other custom wiring configurations if required, please email sales@glensound.co.uk with your requirements.

Beatrice B2 Wiring Info

Connector type: 5 Pin XLR Socket (female XLR fitted, suitable for mating with cable mounted male)

PIN 1: Mic -
PIN 2: Mic +
PIN 3: GND
PIN 4: Headphone Left
PIN 5: Headphone Right

Beatrice B2-X4 Wiring Info

Connector type: 4 Pin XLR Plug (male XLR fitted, suitable for mating with cable mounted female)

PIN 1: Mic - (Mic GND)
PIN 2: Mic +
PIN 3: Headphone GND
PIN 4: Headphone +

Dante DDM Seal

                    The Beatrice B2 has been tested with and works with Dante Domain Manager.



Please read the manual for installation instructions.

The latest Version Of the Firmware is v1.8.3

The download location of this file is:

http://www.glensound.co.uk/Software/Dante/BeatriceB2_v1.8.3.dfu

Audinate Dante® Firmware

Currently no updates to factory installed Dante firmware have ever been released. Your unit will already have up to date Dante firmware in it.

Beatrice B2/4M:  Headset wired to a 4 pin XLR male plug

Beatrice B2/5F:  Headset wired to a 5 pin XLR female socket
