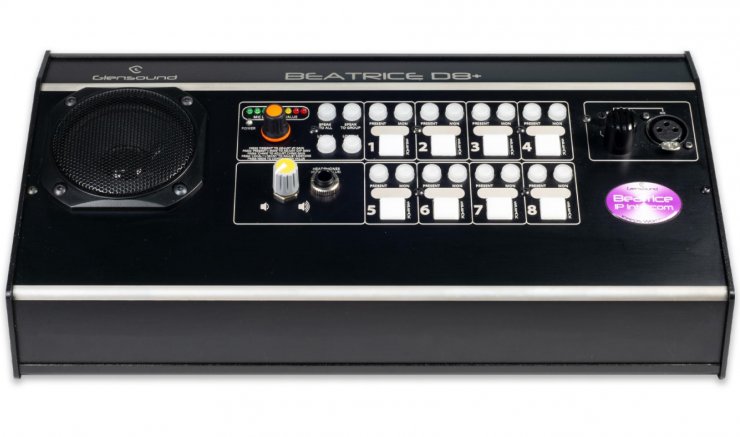

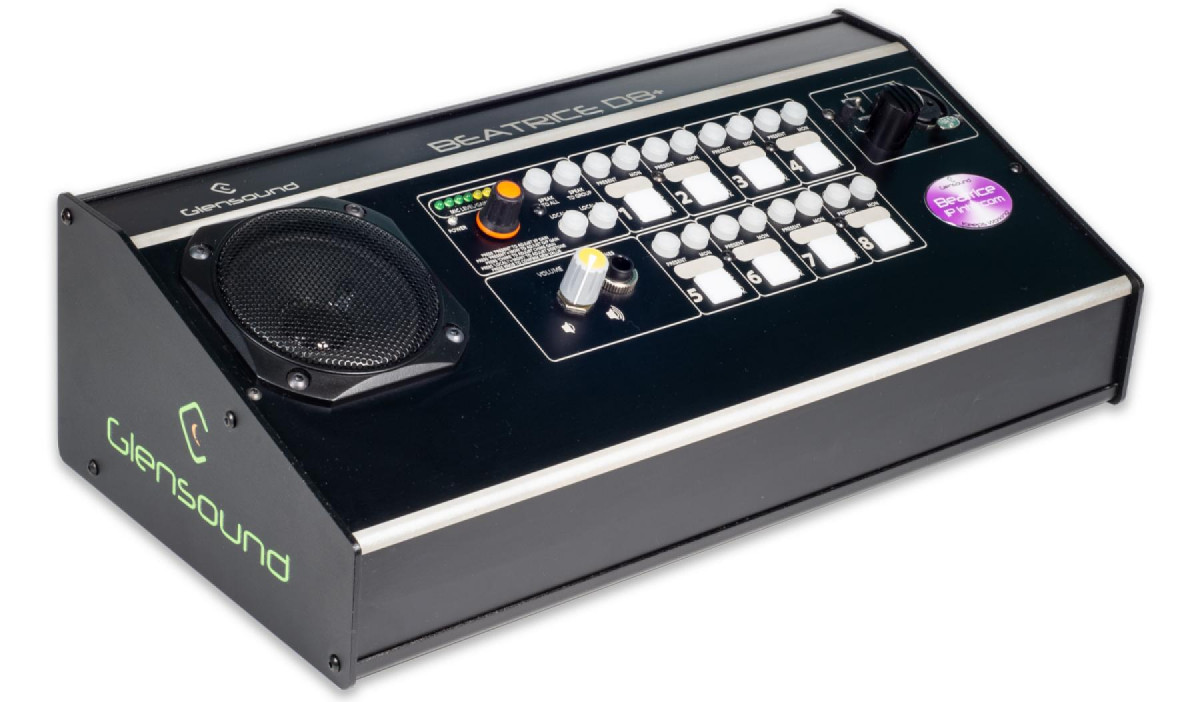

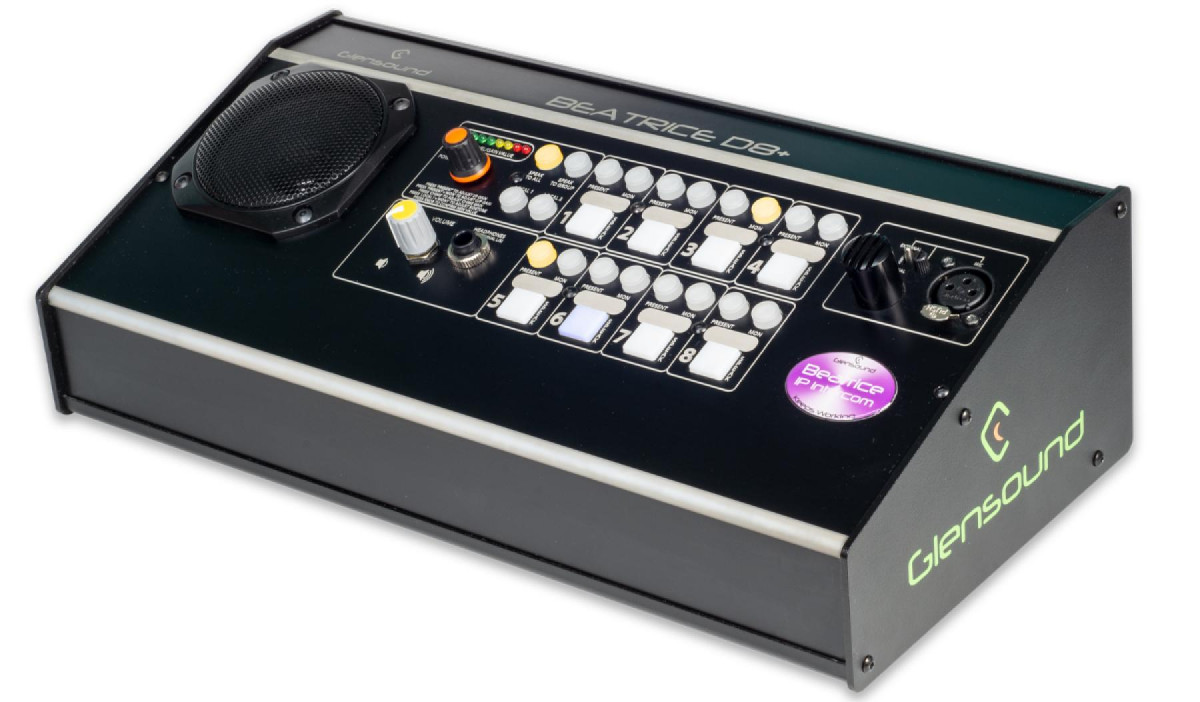

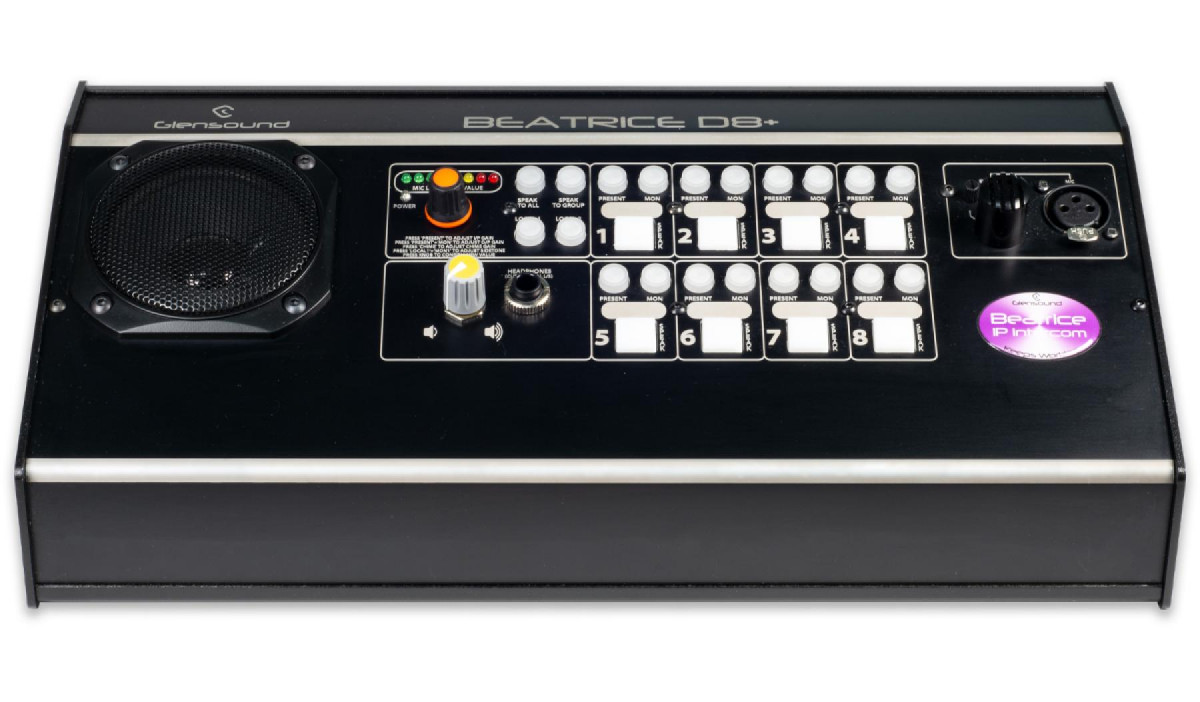

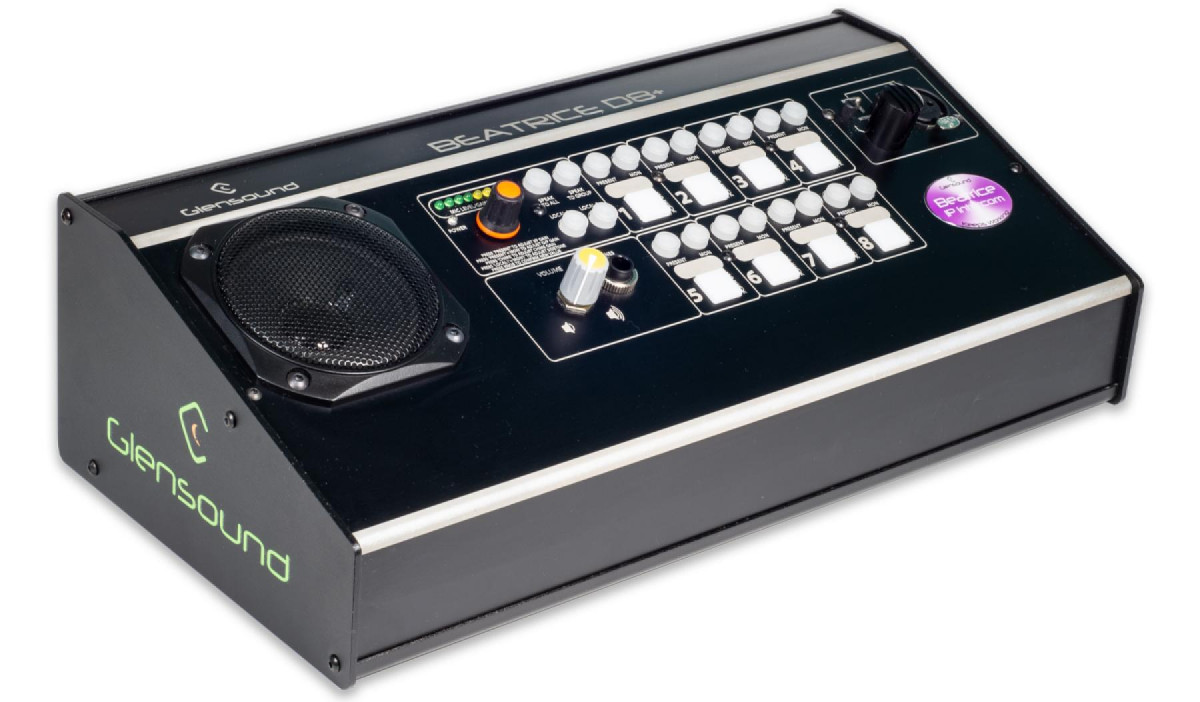

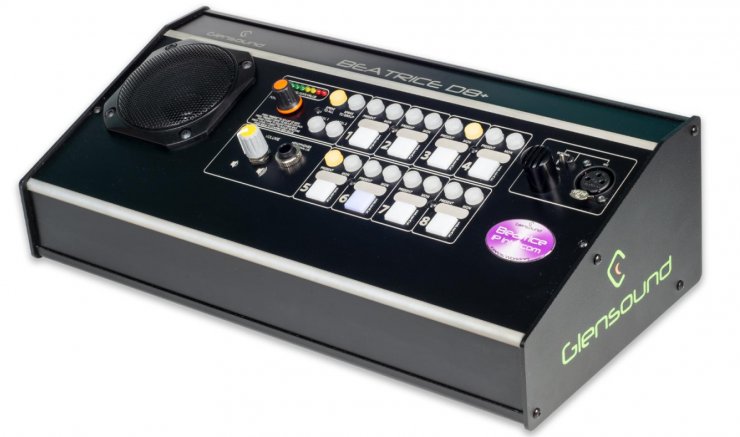

Beatrice D8+
8 Channel Network Audio Desktop Intercom with Analogue I/O

Features Description Specifications Downloads Ask a Question

8 Channels Of Intercom
One single user connected to the unit can listen to and communicate with 8 separate locations on the network. Depending upon how the Dante network has been routed, the incoming audio circuits and outgoing circuits can be different locations.

Dante Routing & Partyline
Audio routing to/ from other devices is setup using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for each of the 8 channels). Therefore we’ve included an inbuilt fixed ratio 14 input 19 output mixer matrix with inputs and outputs connected directly to the Dante / AES67 network which allows for setting up partyline and complex group circuits.

Onboard Mic & External Mic Input
A good quality, clear sounding microphone amplifier designed for communication purposes is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited. This microphone amp has two microphone sources, either the inbuilt front panel mounted electret capsule which provides good voice intelligibility from normal working distances, or a balanced XLR input for connecting external gooseneck microphones. Twelve Volt Phantom power is also available and can be turned on/ off as required via an internal link.

High Output Intelligible Loudspeaker
What’s the point of an intercom unit if the onboard speaker is so cheap that you can’t understand what is being said to you? We tried hundreds of different drive units before settling on the one used in the Beatrice D8+. We chose it because it had a much cleaner sound and better frequency response for vocals than any other speaker on the market that would fit in the desktop unit.

Mains or PoE Powered
An inbuilt wide range switch mode mains power supply is fitted for powering the Beatrice D8+. It is terminated with a standard IEC plug, making it easy to plug in wherever you are in the World. The unit can also be powered via the Ethernet cable by standard PoE (Power over Ethernet) on either of the copper Ethernet ports. The PoE power can be supplied by an external PoE switch or a midspan power injector.

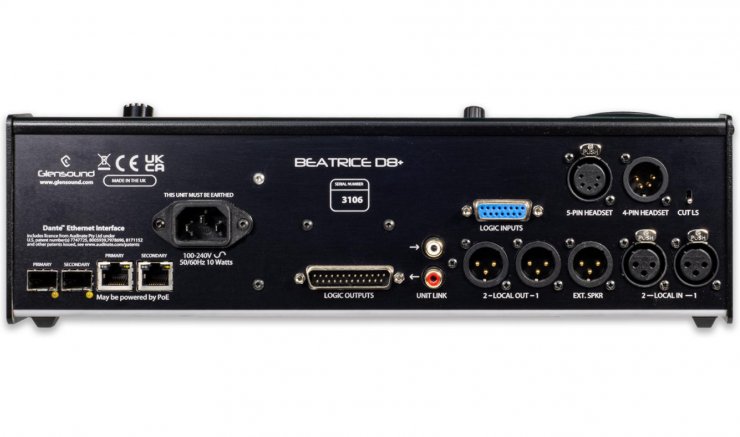

Redundant Twin Copper & Twin Fibre Ethernet Interface
When ultra reliable communications is needed for the utmost important jobs, glitch free redundant network circuits can be set up using the primary and secondary Dante network ports. There are 2 copper Ethernet ports on Neutrik Ethercons and also 2 fibre Ethernet ports presented as SFP slots (SFP modules not included). Redundant networks can be set up across any of these ports. These ports can also be setup as a network switch.

GPIO
There are nine solid state relay outputs. One of these outputs is triggered when any speak key is on (useful for dimming external loudspeakers or red light controls), the other eight are triggered individually when their associated channel receives a call. In total there are 12 loop closure inputs. 10 of these control the talk keys (the 8 channels, talk to group & talk to all) and the other 2 provide internal & external LS cuts

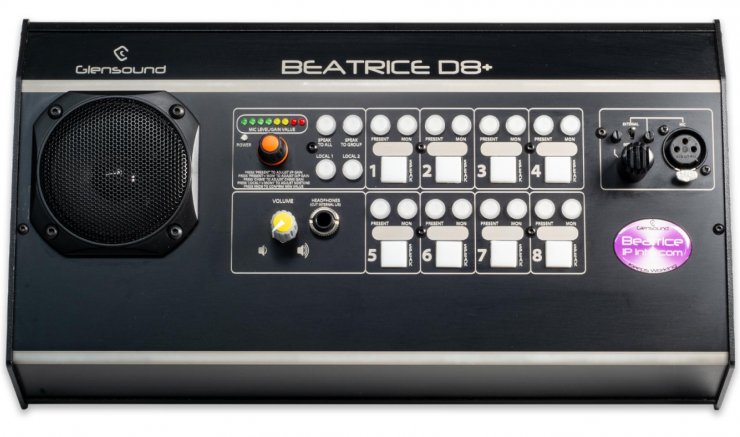

Microphone Level Meter
An eight LED front panel multipurpose indicator is used to indicate the outgoing microphone level.

Channel Input and Output Gain Controls
For maximum flexibility, gain can be applied to incoming audio signals and outgoing signals separately. A row of LEDs indicate the current gain setting when a channel's input or output is being adjusted.

Call Function
A simple call function is inbuilt allowing the operator of one unit to call/alert other users that they want to communicate with. A simple double tap of the speak key initiates a calling signal sent to the other party. The audio presence indicator flashes to indicate that you have been called.  As well as the flashing LED at the receiving end of the call, an audible ‘beep’ can be set to alert the user that an incoming call has been placed to them.

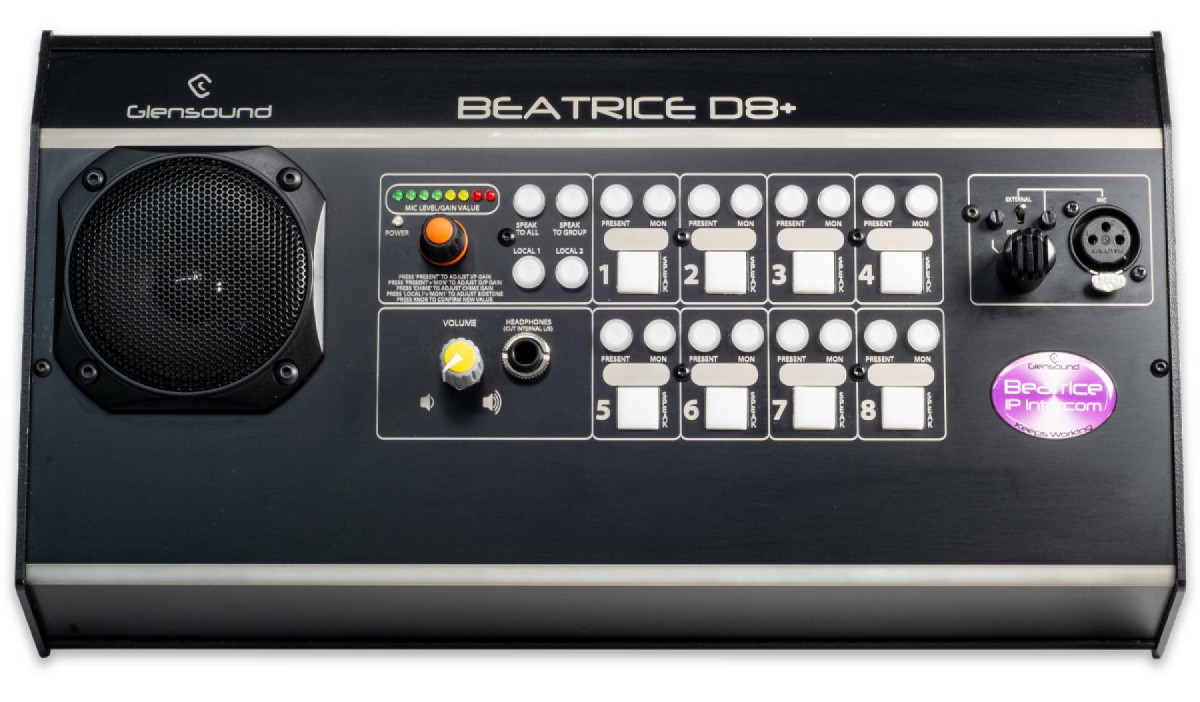

Monitor Selection
Each channel has an illuminated audio monitor switch. This allows the channels’ incoming audio circuit to be routed to the headphones/ loudspeakers. Using these switches makes it easy for an operator to just monitor the desired incoming audio channels.

Presence Indication
A front panel illuminated red switch is used to indicate the presence of incoming audio on that channel. When audio is detected on the channel the switches internal red LED is illuminated, the red LED then stays on for a short period after the incoming audio stops to help the operator identify who has been talking to them.

Speaker Output
As well as the front panel internal loudspeaker, a balanced analogue output is provided for connecting to an external powered loudspeaker.

4-Wire Connectivity
Two traditional analogue 4-wire circuits can be connected to two of the D8+'s intercom channels by utilising the versatile analogue inputs and outputs.

Local Input and Output Circuits
For increased versatility there are 2 local balanced analogue audio inputs and 2 local balanced analogue outputs. The inputs have input gain controls and presence detectors on them (just like an intercom’s channel input) and are routed directly to two output channels on the Dante / AES67 network. The outputs are fed directly from two input channels from the Dante / AES67 network.

Mixer Matrix For Partyline
For setting up more complex groups and partyline circuits that could not be achieved via Dante controller or your AES67 router, an inbuilt fixed ratio mixer is supplied. It has 14 audio inputs direct from the network and 19 mix outputs to the network. Five of the mixers have inbuilt automatic audio ducking circuits.

2  units make 16 Channels
Two Beatrice D8+ desktops can be joined together by just a pair of digital S/PDIF cables making a 16 channel intercom unit, with groups, mics, speakers and other resources shared between the 2 units.

Headsets

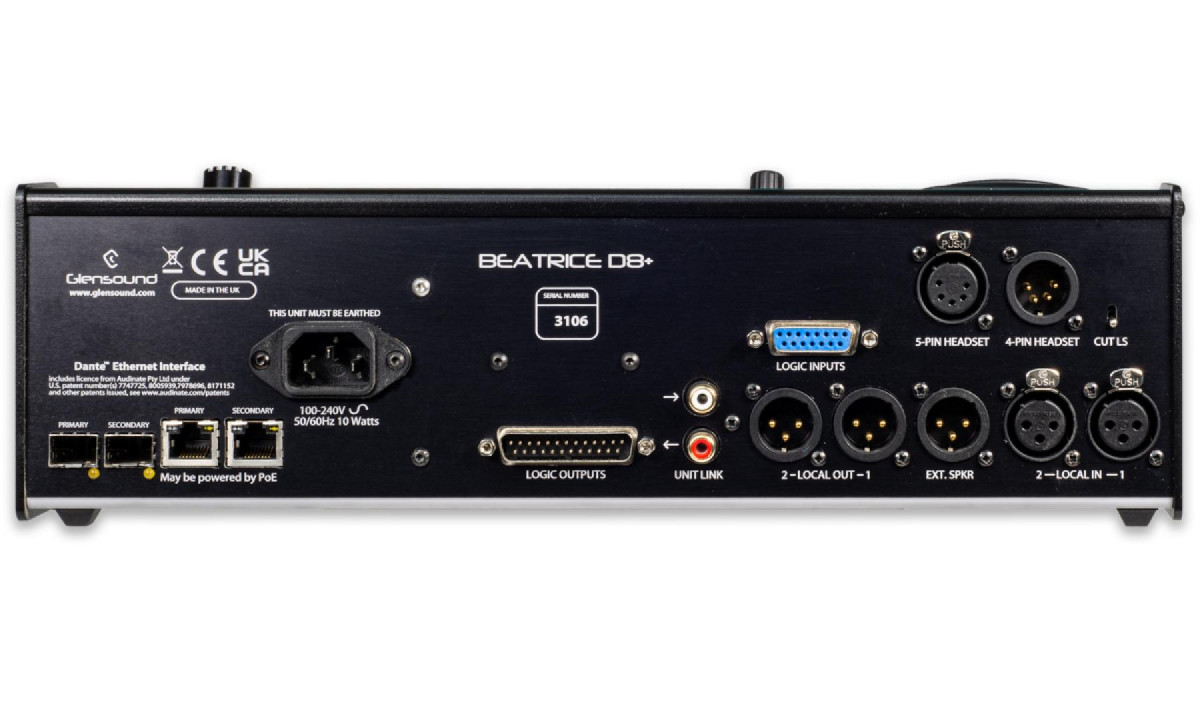

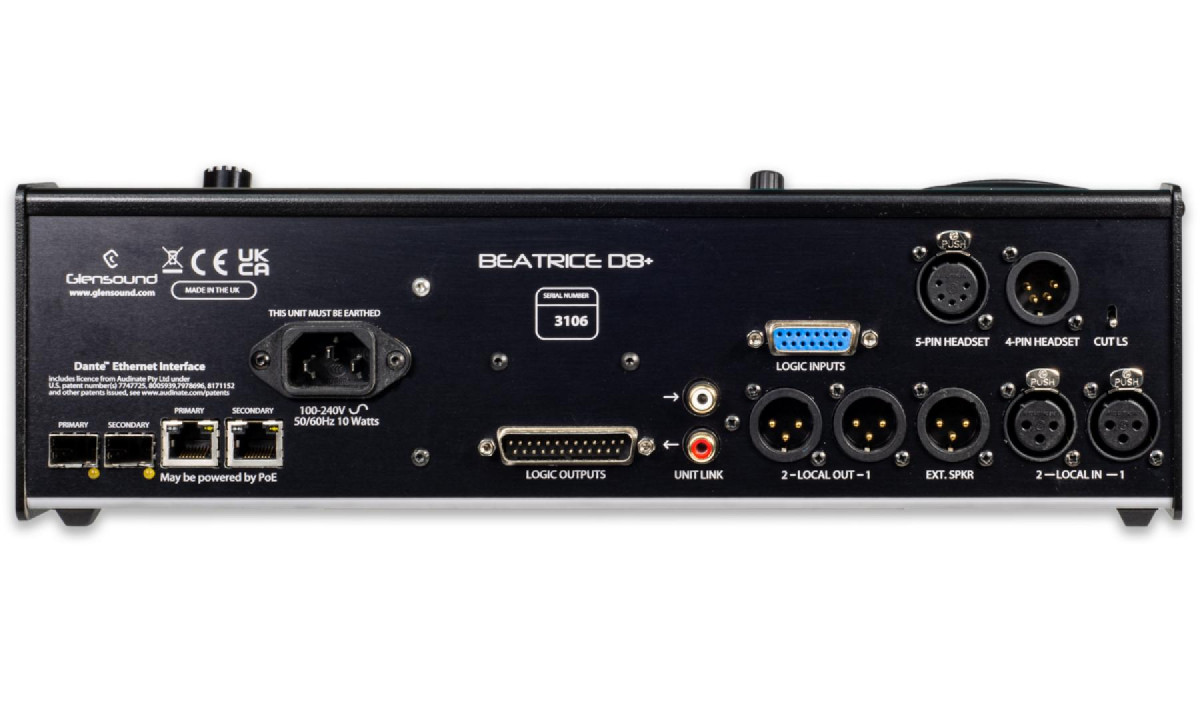

The Beatrice D8+ unit has all three pin options fited to the unit.  On the front/top of the unit are the 3pin XLR (mic) and jack (headphones) connectors, On the rear of the unit are the 4pin and 5pin headset connectors.  When using 4/5pin headsets sidetone is unavailable and the audio in the headphones and the Ext speaker will be dimmed when a talk button is pressed.

NOTE: The Beatrice D8+ is the fully featured Beatrice R8 in a desktop format. It offers 2 x analogue 4 wires, GPIO, local analogue LS output and expansion capability in addition to the standard features on the smaller Beatrice D8. Because the Beatrice D8+ started life as a 1RU rack, it is quite physically large and we would only recommend it if you specifically need the extra facilities mentioned above. For most customers requiring an 8 key desktop unit, the smaller Beatrice D8 will be sufficient.

The Glensound BEATRICE D8+ is a versatile and fully featured 8 channel desktop intercom with crystal clear audio designed for broadcast, theatre and professional audio applications.

It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks, it is also AES67 compliant. As such the BEATRICE D8+ is fully compatible with other manufacturers’ equipment using the Dante and/ or AES67 protocols.

This desktop intercom was designed to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.

Also Available In AES67/Ravenna Version

Specifications for both Dante and Ravenna versions, Scroll doen for details.

AUDIO

Mic Gain Range: +61 to +21dB
Mic input:  3 pin XLR on top panel
Phantom Power: 12 Volts (set by internal link)
Equivalent Input Noise: -126dB (20Hz to 20kHz A weighted 150 Ohms)
Headphone Impedance: 32 - 1000 Ohms
Max Headphone Output Level: +14dB into 600 Ohms
Headphone Connector: 6.35mm (1/4") TRS socket
Band Pass Filter: 50Hz to 15kHz
Headset connection: 4 pin and 5 pin XLR on rear panel

CALL CIRCUIT

Inband Calling Frequency: 20kHz
Amplitude: -20dBFs
Duration Of Signal: 2 seconds
Compatibility: All Glensound Beatrice units and Studio Technologies

POWER

Mains Voltage: 100 to 240 VAC +/-10%
Mains Frequency: 50 to 60Hz
Power Over Ethernet (PoE): 48 Volts
Consumption: 15 Watts
Redundancy: Mains and PoE are dioded together for glitch free redundancy

PHYSICAL

Mechanics: All aluminium with laser etched anodised panels and light textured black powder coated sides, base and lid
Size: 349 x 172 x 98mm (W x D x H)
Weight: 1.87Kg (4.2lb)
Shipping Weight: 3.4Kg
Shipping Size: 61 x 41 x 17cms
Shipping Carton: Rugged export quality cardboard carton

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

GPIO

GPO: Solid State Relays wired Normally Open & Normally Closed
GPI: Logic level pull down to ground to operate

INCLUDED ITEMS

Handbook: By download
Network Cable: 2 meter RJ45 to RJ45 cable

NETWORK OPTIONS:

DANTE/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
Sample Frequency: 48K
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67

RAVENNA/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
AES67: Yes
High Sample Rates: 44.1kHz - 192kHz
PTPv2: Master or Slave, IEEE-1588-2008 standard
SMPTE ST 2110-30: Yes. Including level C and CX
SMPTE ST2022-7: Yes. Seamless data switching
NMOS IS-04 (Disovery): Yes
NMOS IS-05 Routing): Yes
Remote Control: Web browser or Anem
