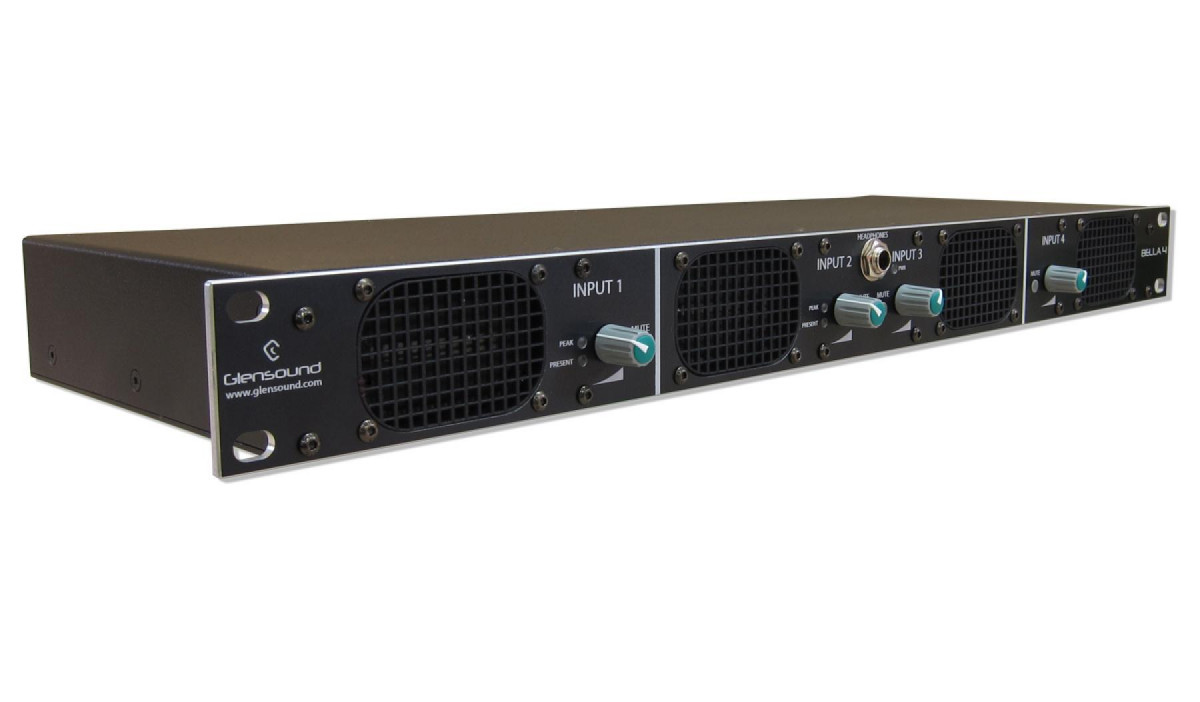

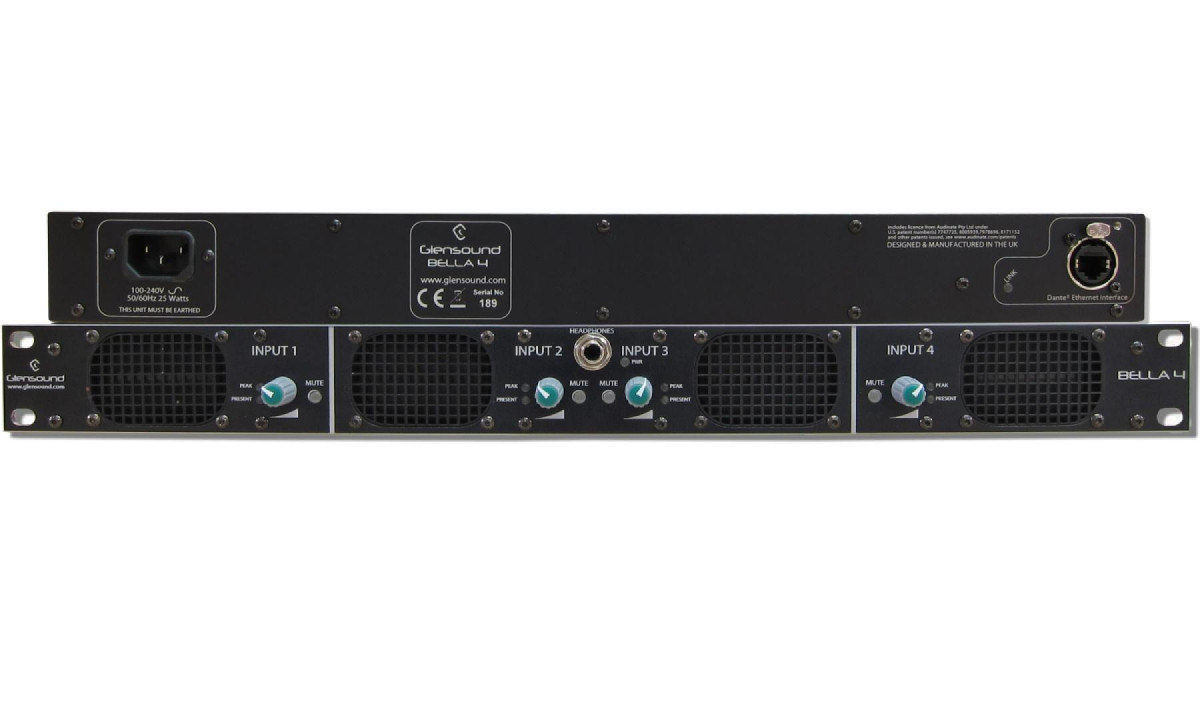

The Bella 4 is a 4 loudspeaker confidence monitering rack. it is a new design for 2019 and features the very latest technology in loudspeaker and amplifier design giving it an extended acoustic frequency range (compared to old legacy equivalent products) and low distortion.

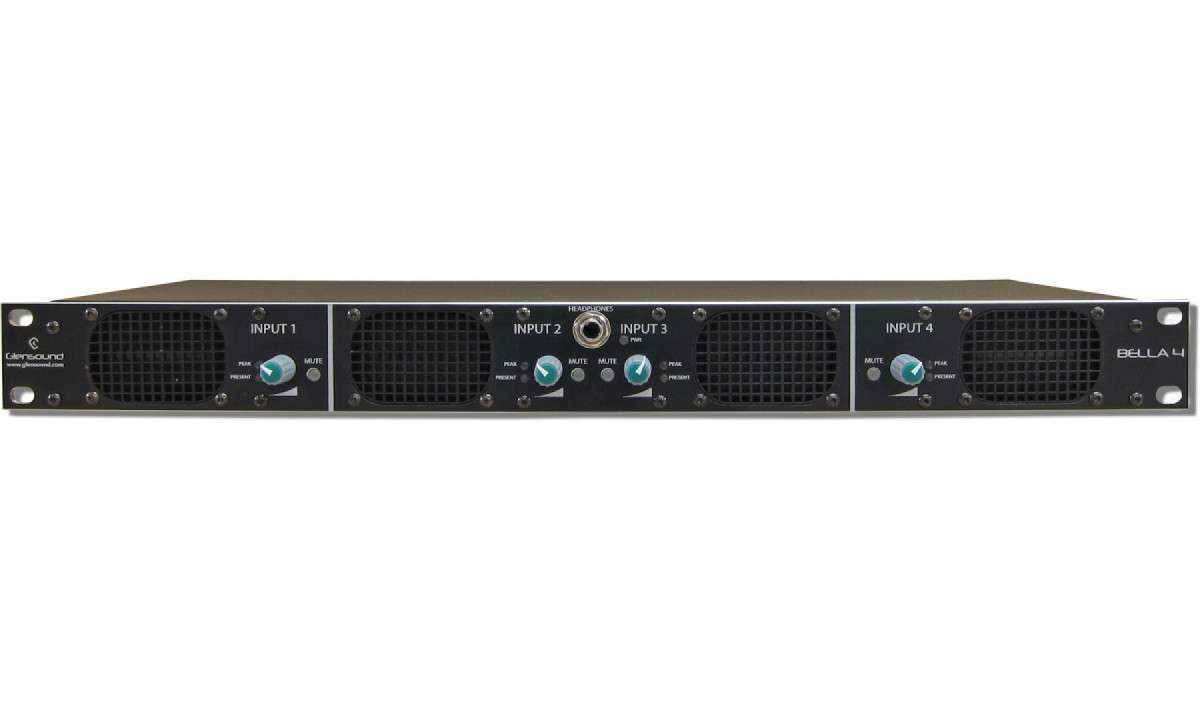

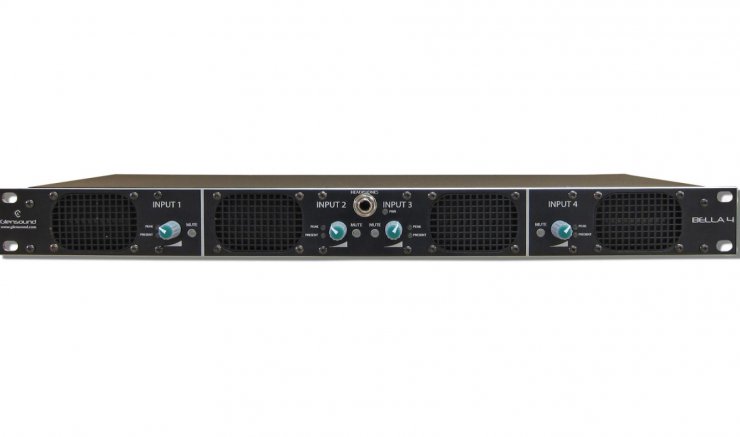

The 4 loudspeakers are each fed from their own* Dante® (AES67 compliant) network audio input. Each Channel has a front panel audio presence indicator and input peak Led and an illuminated Channel mute switch. Front panel volume controls adjust the audio output of the speakers and the headphone circuit.
The Bella 4 is also manufactured in a analogue only version. The GS-MON004
Modern Loudspeaker Drive Units
The newly designed drive units fitted in the Bella 4 were originally manufactured as full range drive units in flat screen televisions. They have ultra modern Neodymium magnets with reasonably low tesla magnetic induction properties.
Class D Amplifiers
Each loudspeaker is driven from a new design of Class D amplifier. These amplifiers provide low distortion & low noise outputs. Four watts RMS is provided into each loudspeaker and the peak output is electronically limited to 5 watts.
Inbuilt Loudspeaker Protection
A compressor limiter circuit is provided to prevent overload and damage to the loudspeaker drivers by exceptionally high audio levels. One compressor/ limiter is provided for each loudspeaker and they have been carefully designed not to taint the audio during normal operating levels.
Dante®/ AES67 Compliant Audio Inputs
4* network audio inputs can be routed from your Dante®/ AES67 AoIP network to the Bella 4. The Bella 4 uses the Ultimo chipset from Audinate and can accept 4 audio inputs at 48k sampling or 2 at 96k sampling, all with up to 24 bit resolution.
Channel Mute Switch
Each channel has its own illuminated mute switch. This allows a quick and easy way for an operator to turn the audio off from one (or more ) loudspeakers.
Presence & Peak LEDs
Presence LEDs are provided for each loudspeaker input. These LEDs illuminate when incoming audio is detected and this provides a helpful aid to an operator to know which audio circuit is currently active. Peak LEDs are also provided and these illuminate when the input level reaches a high level.
A front panel 6.35mm TRS headphone jack is provided. If headphones are plugged in then the audio to the loudspeakers is automatically cut. The headphone output is stereo and it wired such that inputs 1 and 3 feed its left output and 2 and 4 feed the right output channel.
Mains Power Supply
An internal switch mode mains power supply is fitted that is suitable for use Worldwide. The power input is via na industry tandard filtered IEC plug.
High Acoustical Output
The modern loudspeaker drive units are capable of providing a high output SPL of 88dB from 1 loudspeaker (at 0.6 metres) or 98dB if all loudspeakers are driven coherently.
Best in Class Frequency Response
Our design provides what we believe is the best in class frequency response from a 4 way 1RU loudspeaker rack. Our acoustical output is within +/-9dB from 22kHz down to 120Hz. The flat midrange and extended LF provide a noticeable improvement in audio clarity and we’d welcome any listening test comparison you wish to try.

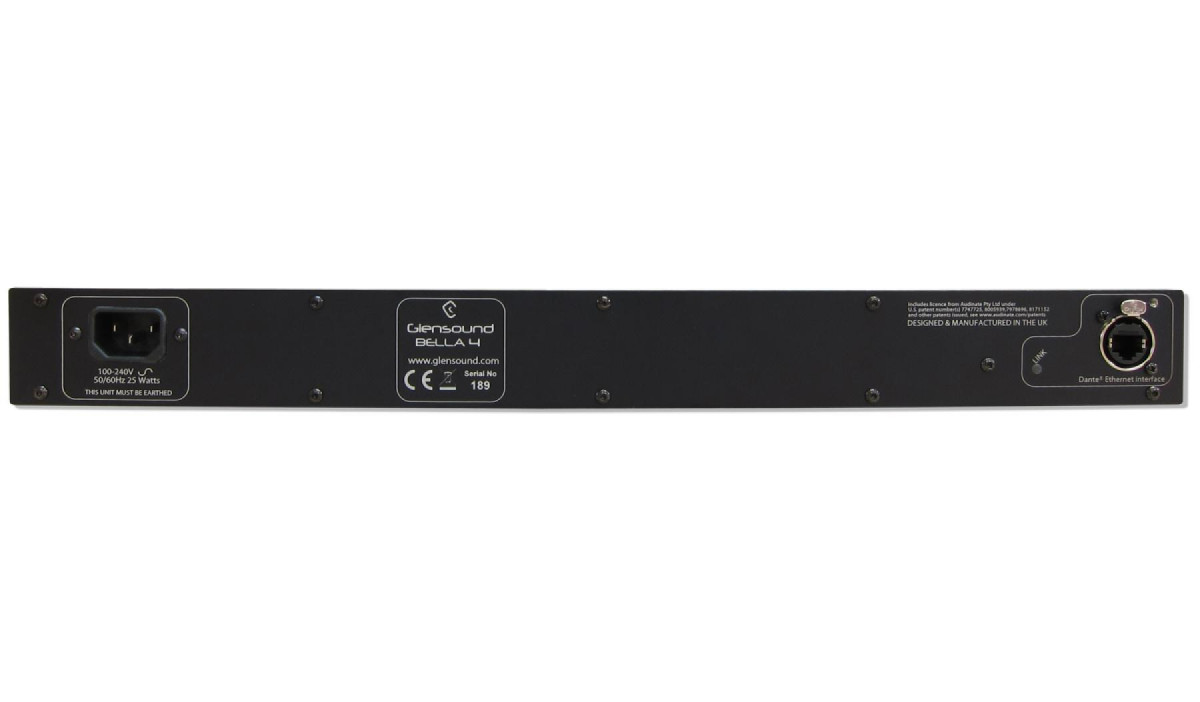

Physical Interface: 1 off Rj45 Neutrik Ethercon
Audio Sample Frequency: 48kS/s
Transfer Rate: 100 Mbps
Dante® Chipset: Ultimo UXT-01-004
Note: Audiante recommend no more than 10 Ultimo chipsets on one network UNLESS another Dante device such as the Brooklyn module (found in 8 channel Beatrice/ Dark units), is on the same network.
AES67 Compliant: The Audinate Ultimo chipset is AES67.
AUDIO - General
Volume Control Gain Range: +10/ Off
Present Indicator Threshold: -18dB
Present Indicator Hold Time: 3 seconds
Peak LED Threshold: +10dB
AUDIO - Headphones
Connector: 6.35mm (1/4") TRS Jack Socket
Maximum Output Before clipping: +18dB into 600 Ohms
Noise @ Lineup (22hz to 22kHz RMS): > -88 dB
THD + N: > 0.0025% @1kHz ref +8dB
Headphone Impedance: 32 - 1000 Ohms
AUDIO - Loudspeaker
Maximum Power RMS: 4 Watts (per loudspeaker)
Peak Power (per loudspeaker): 5 Watts (limited by compressor circuit)
Amplifier Type: Class D
Noise @ Lineup (measured at I/P to LS): >-61.5dB
THD + N (measured at input to LS): > 0.18% @ 1kHz ref +8dB
Acoustic Frequency Response: 120Hz to 22kHz +/- 9dB
Maximum Acoustic Level (1 Loudspeaker): 88dB SPL @ 0.61 Meters (2 Feet)
Maximum Acoustic Level (4 Loudspeakers): 98dB SPL @ 0.61 Meters (2 feet)
Loudspeaker Magnet Type: Neodymium
Magnetic Induction: 1.15 T (per loudspeaker)
Input Voltage: 100 - 240 VAC +/-10%
Frequency: 50 / 60 Hz
Input Connector: Filtered IEC (Internally fused)
Consumption: 25 Watts (Maximum)
Mechanics: All aluminium with laser etched panels and light textured black powder coated lid/ base
Size: 19" 1RU 164mm deep
Weight: 1.35Kg (4.2lbs)
Shipping Weight: 3.1Kg (6.8lbs)
Shipping Size: 62 x 41 x12 cms
Shipping Carton: Rugged export quality cardboard
Operating Temperature: 0 to +50 C (32 to 122 F)
Storage Temperature: -20 to +70 C (32 to 122 F)
Relative Humidty: 0 to 95% non-condensing
Handbook: Physical A4 (download also available)
Mains Cable: 2 metre IEC (UK & Europe only)
Network Cable:2 metre RJ45 to RJ45
The Bella 4 has been tested with and works with Dante Domain Manager.
Please read the manual for installation instructions.
Audinate Dante® Firmware
The latest Ultimo version for the Bella 4 is v18.104.22.168:
