Dc6432dccuswitch Front BAN

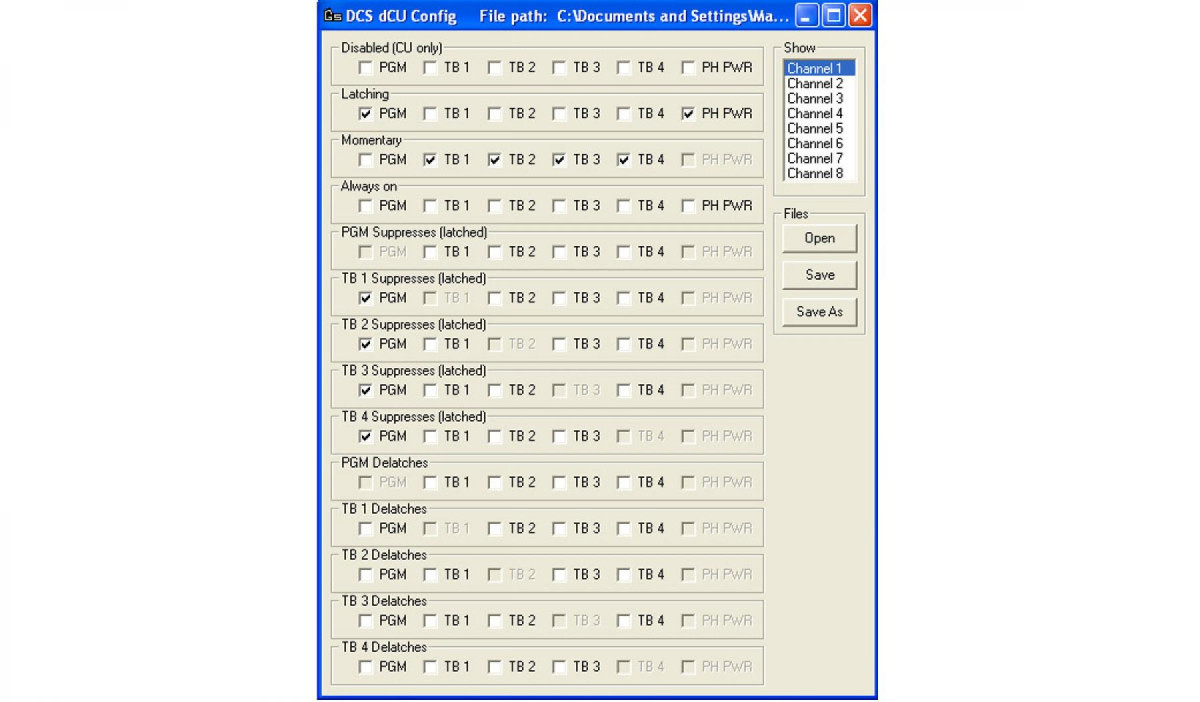

GDC 6432 Switches Software
Switch configuration software for dCU/3 (included with dCU/3)

Features Description Downloads Ask a Question
  • Allows configuration of switch profiles on dCU/3
  • Switches can be locked on/off
  • Switches can be latching, momentary, or lazy
  • Pressing one switch can suppress another
  • All selectable per individual switch

There are 23 switches on the dCU/3 than can all be individually configured via the Switches software. Options include:

  • Lock a button on or off. For example, if using condenser microphones, all 48v phantom buttons can be permanently locked on to avoid accidental presses.
  • Change a talk back button from latching, momentary, lazy.
  • Assign suppressing functions. For example, pressing a talk back button turns off the 'mic on' button, then puts it back on when the talkback is released.


All profiles are updated to the dCCU via USB.
