• 10 independent line identification circuits
• Each circuit records up to 20 seconds of message
• On playback, 4 seconds of a 1kHz tone at OdB is added after the recorded message
• On playback recorded message and tone is continually repeated Small 4 LED PPM to indicate playback
• levels for each identification channel
• New recording IC sampling at 12 kHz
• Messages are recorded into non volatile memory (saved even after
• power down)
• Front panel loudspeaker for monitoring of identification channels
• Front panel headphone jack (cuts LS)
• Front panel LS & headphone volume control
• Any identification channel can be routed via front panel listen switches
• to LS/ headphone
• Simple to use record/ playback/listen front panel switches
• Front panel microphone for recording messages
• Rear panel external line level input for recording messages
• Front mic/ ext input routing switch
• Compressor/limiter circuit on mic amp for clean audio messages
• Outputs on XLRs
• Record loop inputs for remote control of recording
• Play loop inputs for remote control of channel play operation Labelling points for designation of
• identification channels Stocked item for next day delivery
• Mains powered 100 - 250 VAC

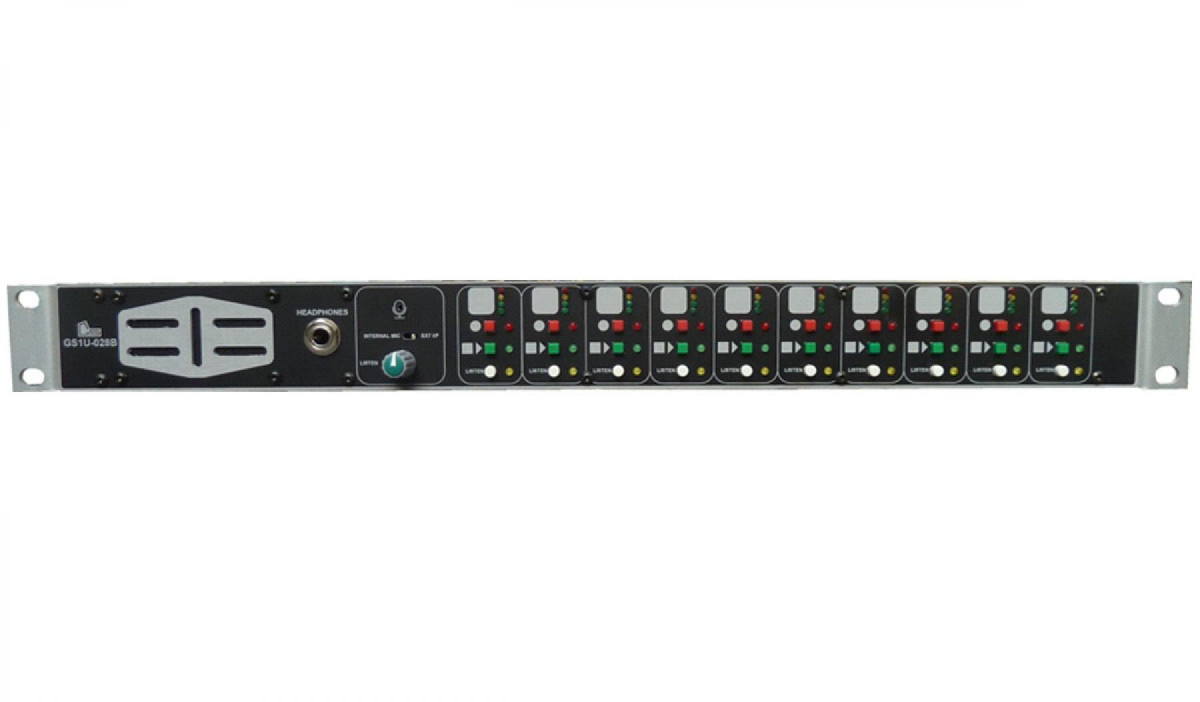

Line identification units are often used in busy studios to record an audio message on a circuit, then playing it back on a loop. The GS1U-0288 provides 10 independent line idents,that allow each circuit to be identified by just listening to the pre-recorded message. The GS1U-0288 also provides a 1kHz tone at Od8 to allow correct audio level setting.

• GS-1U028B Info Sheet
