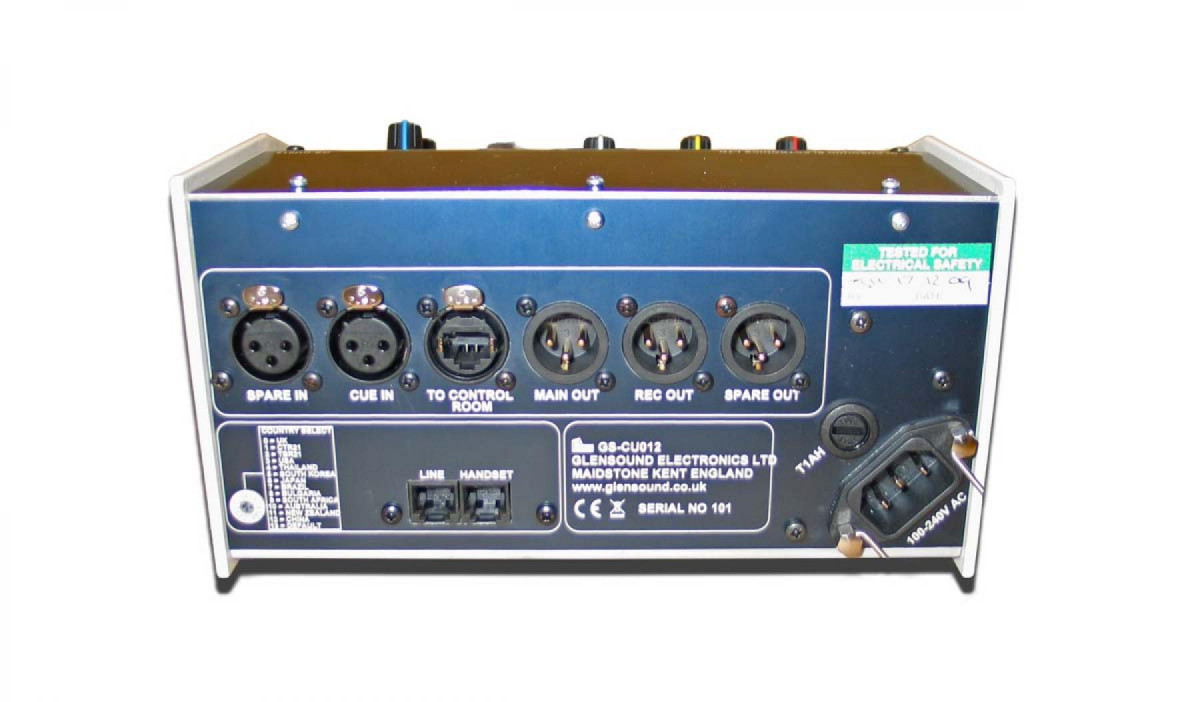

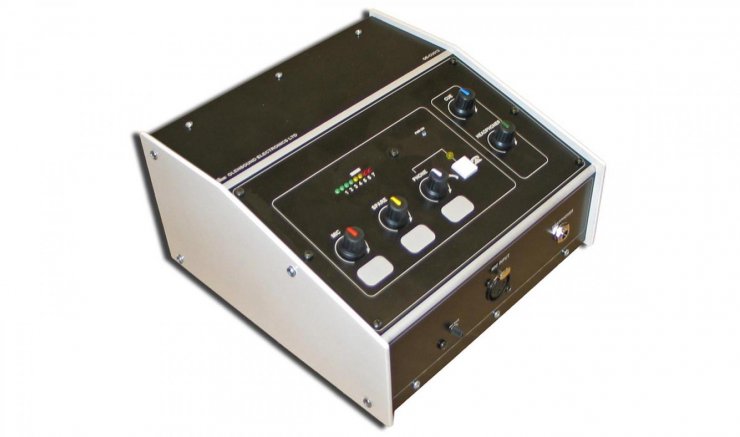

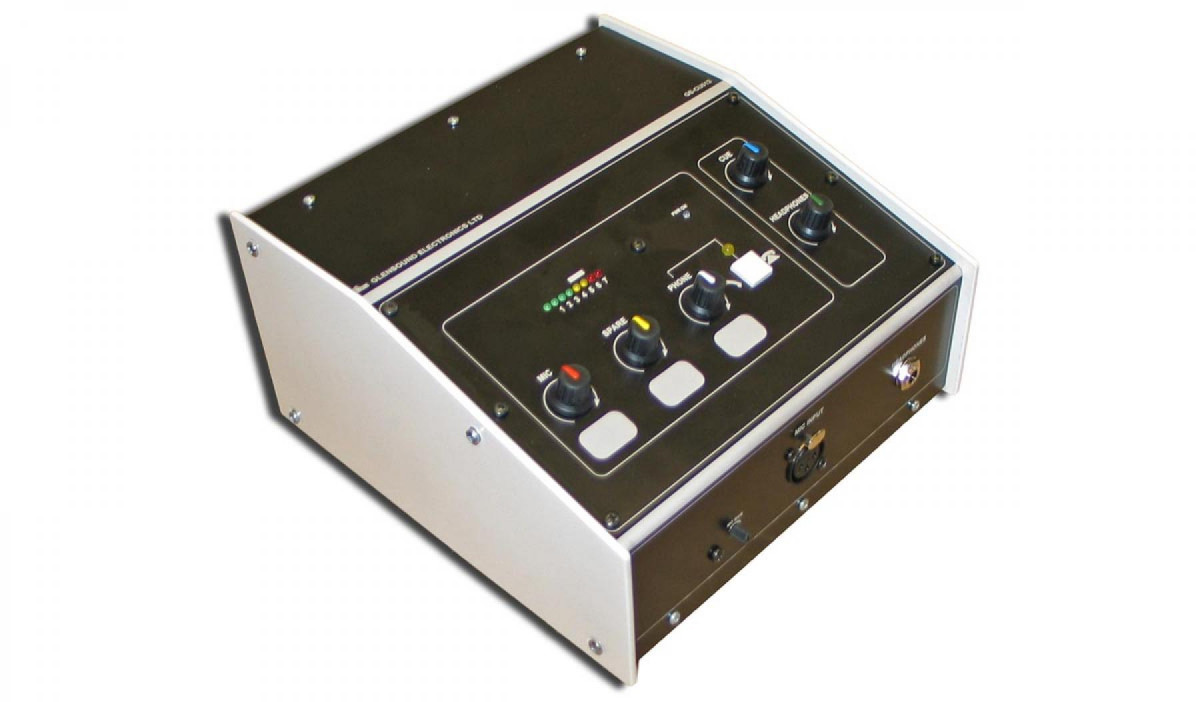

CU012 Angle BAN CU012 Rear BAN

GS-CU012 (HAM)
Desktop Hybrid And Mixer

Features Description Specifications Downloads Ask a Question

HYBRID

  • High specification digital hybrid
  • Excellent separation
  • Digital signal processing with echo canceller
  • Multi country select for worldwide phone network compatibility
  • Line on/off hook switching
  • LED flashes on incoming call
  • Standard phone connection for off air talking and dialing


MIXER

  • Headphone connection with side tone and hybrid return monitoring
  • Microphone input for on air communication with telephone call
  • Mixer for caller audio, mic input, plus a spare input
  • Main output, spare output, cue output
  • Internal PSU 100-240v

A digital hybrid and mixer desktop unit for producing two way programme audio for recording or live use. Intended for small studio, newsroom type use where phone recordings need to be made with a small, simple to use box.

Height: 110mm
Width: 209mm
Depth: 215mm
Power input: 90 - 250 VAC 50 - 60 Hz
XLR connectors: Neutrik

MIC INPUT:
Transformer balanced on XLR
Input impedance: 1k2
Minimum Input level: -71dBu (fader @ line up)
Maximum Input level: -47dBu (fader @ line up)
Gain control: trim pot by XLR

MIC Compressor/ Limiter
Complex compressor/ limiter circuit
Ratio starts @ 2:1 and finishes @ 5:1
Maximum Input before clipping: -13dBu

LINE INPUT (Spare)
Transformer balanced on neutrik XLR
Input impedance: >15k
Nominal Input Level: 0dBu

FADERS (Front panel rotary)
Range: -90 to +10dB
