GS-FW031
Two Channel 4 Wire subrack with IFB

Features Description Downloads Ask a Question
  • 2 x 4 wire circuits
  • 1 x program audio input
  • 1 x external audio input (not transformer balanced)
  • 4 wire & program audio inputs are transformer balanced

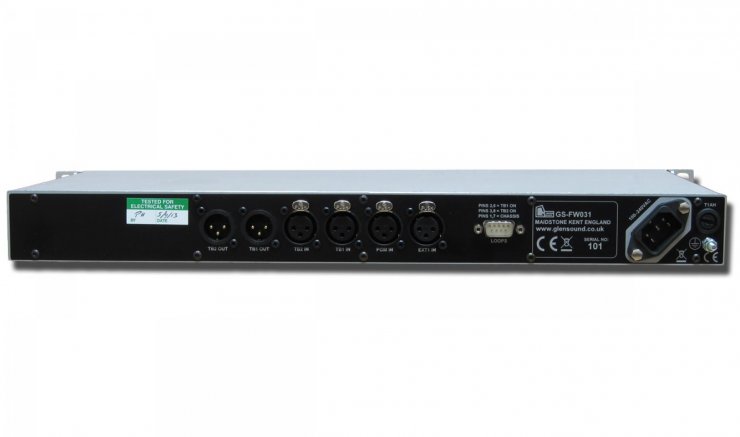

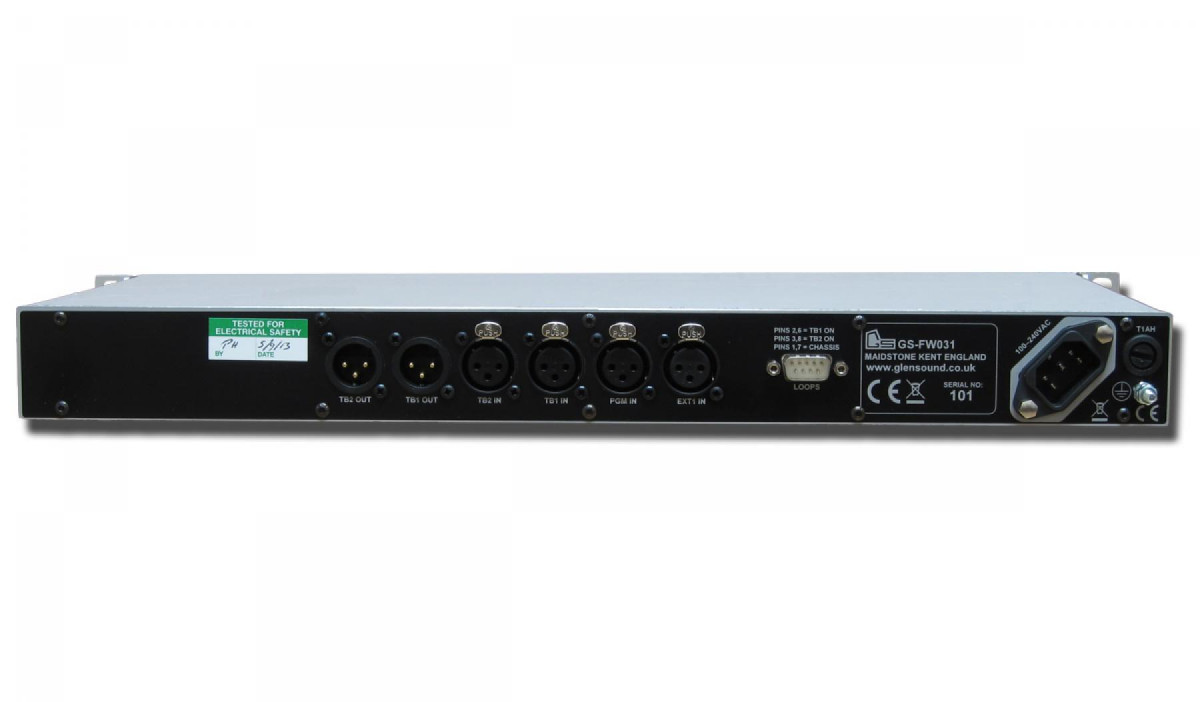

  • Inputs & outputs on rear panel XLRs
  • 4 wire inputs and program input have course gain controls
  • Signal present LEDs indicate incoming audio present on 4 wire inputs and program input
  • Front panel loudspeaker
  • Headphone output (cuts LS)
  • Variable LS dim (Internal preset)
  • Loudspeaker/ headphones volume control
  • Program input can be switched to any of the 4 wire outputs and interrupted when speak key pressed
  • 4 wire inputs can be switched to their own outputs and interrupted when speak key pressed
  • External input can be switched to any of the 4 wire outputs and interrupted when speak key pressed
  • Program, external and 4 wire interrupts can be set to either cut or mix with the talkback mic
  • Front panel mic or external mic input
  • Separate gain controls for the 2 mic inputs (internal presets)
  • Speak keys are latching/ off/ momentary
  • LEDs indicate when speak keys are on
  • Relay loop closure outputs from speak keys
  • Mains powered with internal switch mode PSU (100 to 240 VAC input range)

The GS-FW031 is very versatile 2 channel 4 wire subrack. It has been designed to fulfil all the communication requirements of a small OB vehicles, small studios or to act as the communication hub of fly away kit.
