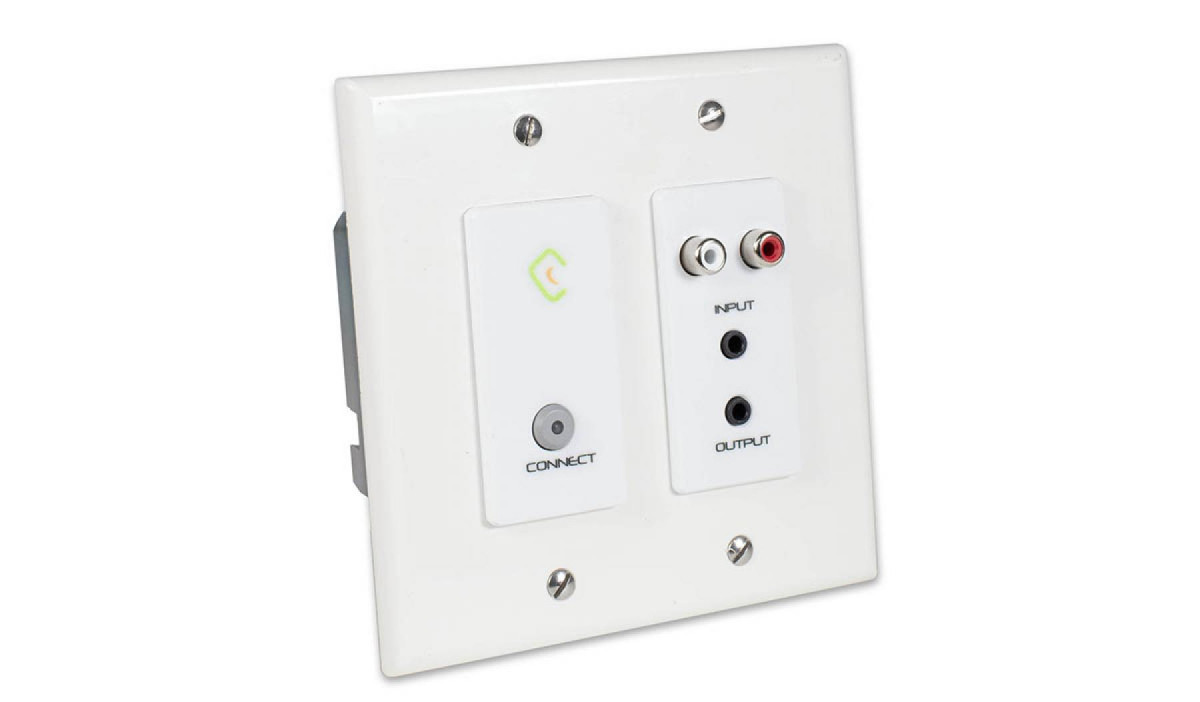

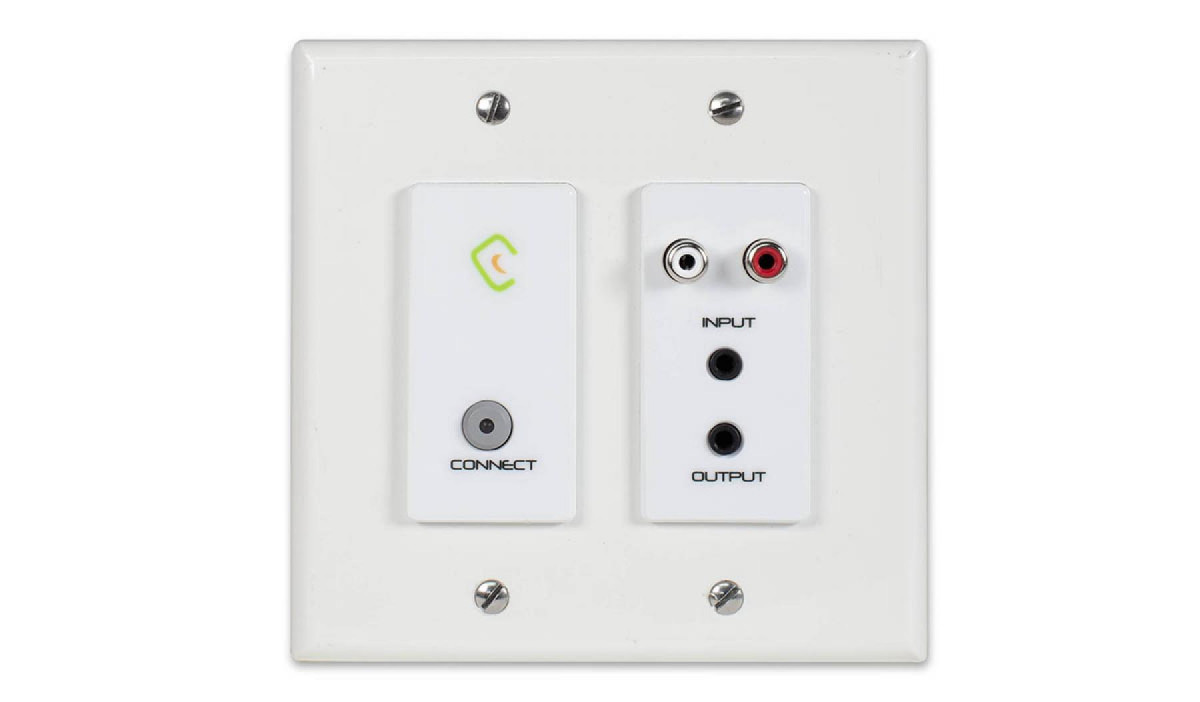

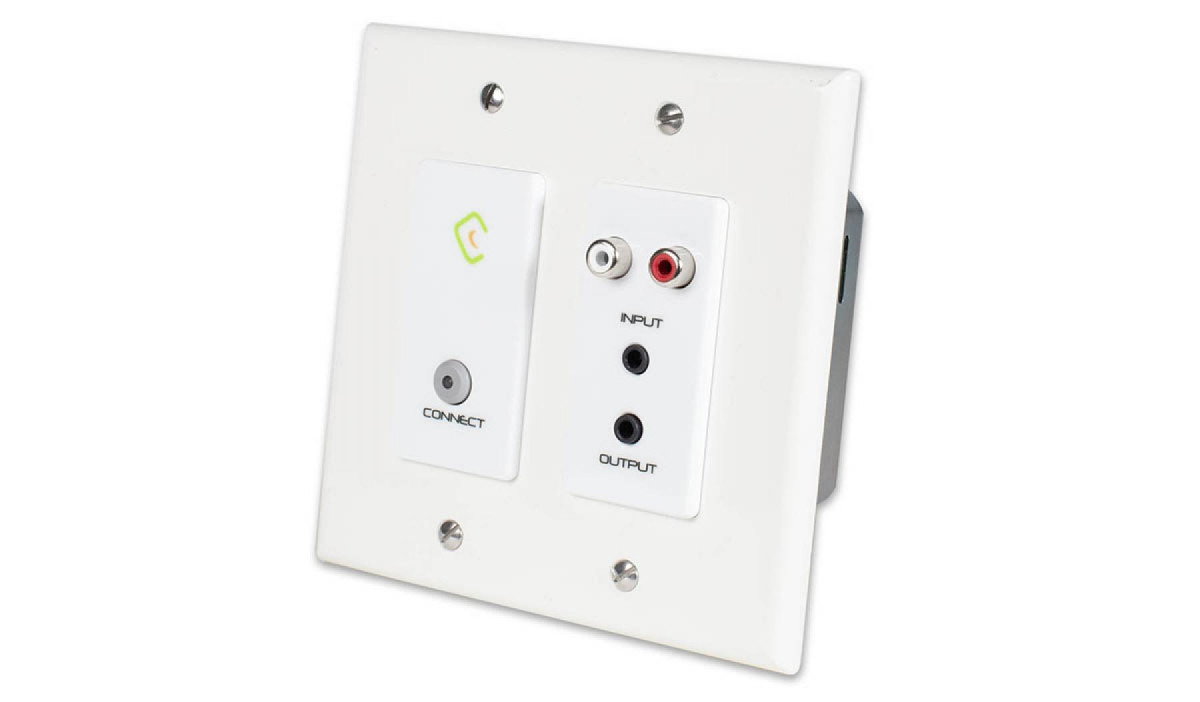

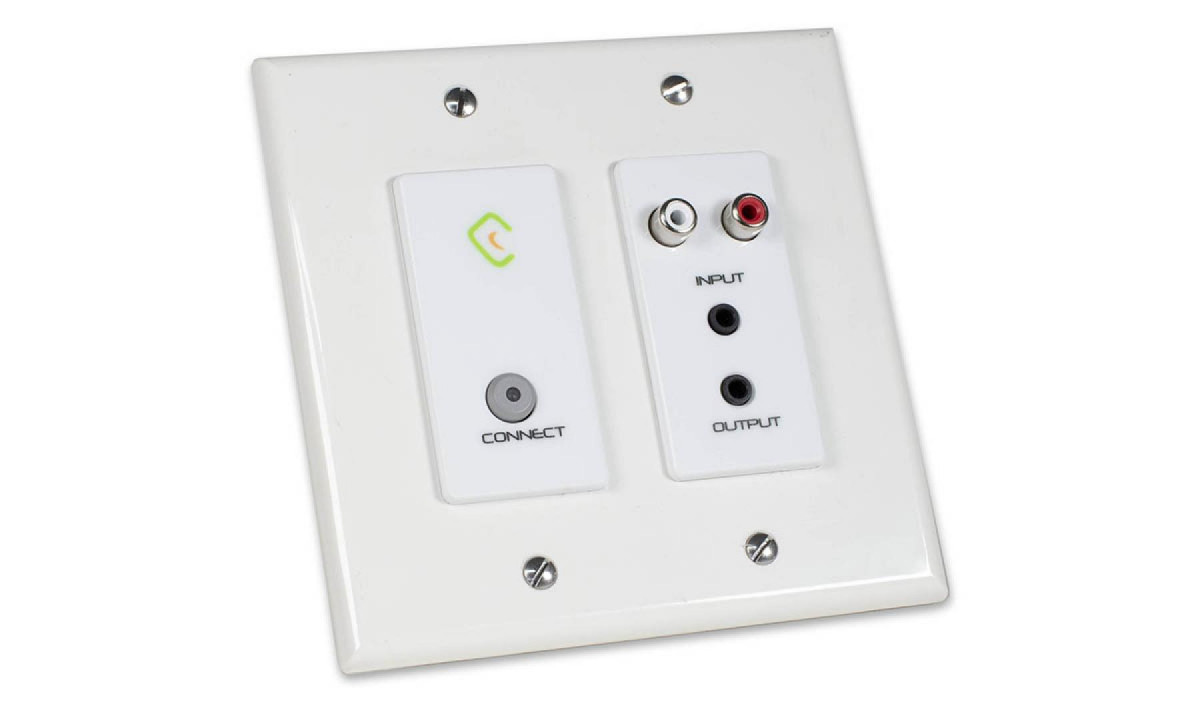

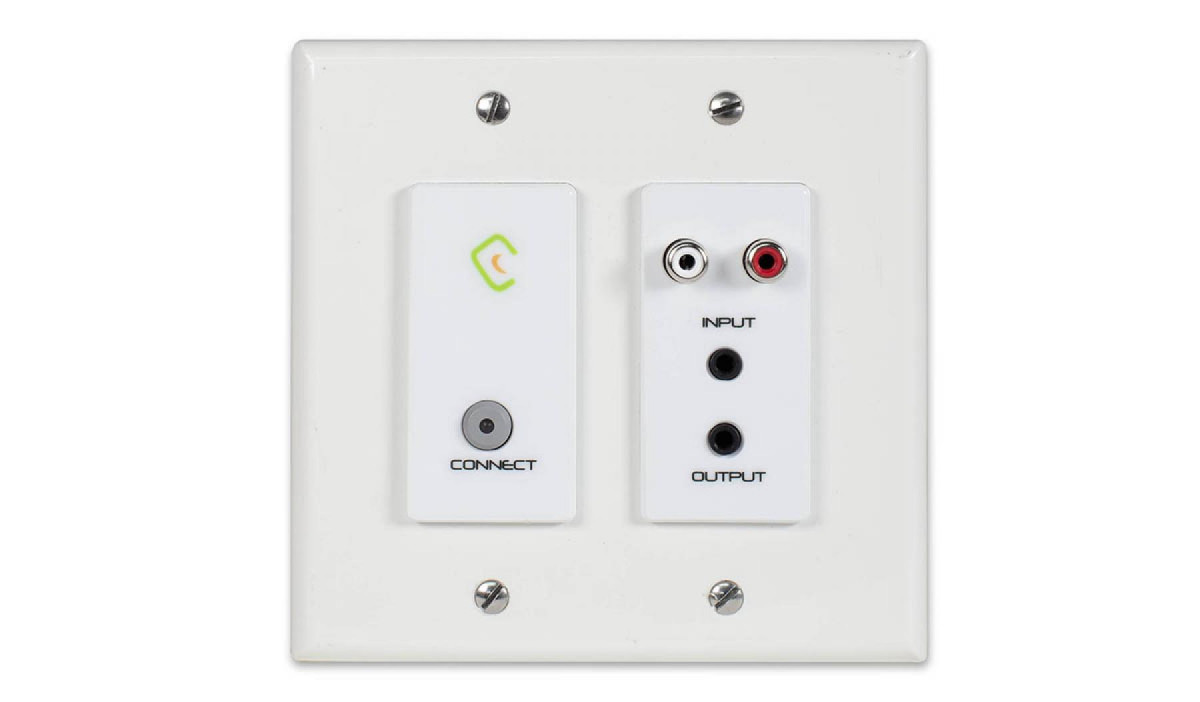

Minos AB22 ANGLE BAN Minos AB22 ANGLE1 BAN Minos AB22 ANGLE2 BAN Minos AB22 FRONT BAN Minos AB22 Rear BAN

MINOS AB22
Two Channel Analogue & Wireless Dante Wall Plate

Features Description Ask a Question
  • Dante audio wall plate interface
  • 2 channel in and out wireless with push button pairing
  • 2 channel analogue inputs and outputs on 3.5mm jack and RCA phono
  • Fits in a dual gang US backbox or direct mounts
  • Compatible with Decora faceplates
  • PoE

The MINOS AB22 is a simple wall mounting interface for analogue and wireless audio to link to a Dante audio network.

AUDIO CONNECTIONS
Analogue audio is available on 2 separate connections (audio is in parallel on these):

  • There are 2 x 3.5mm jack sockets.
    - Socket one is a two channel (stereo) unbalanced input
    - Socket two is a two channel (stereo) unbalanced output
  • There are 2 x phono plug inputs on RCA phono sockets

Wireless Audio

  • A push button enables pairing for your smart phone, laptop or headphones, for example
  • Once connected you have a 2 channel, bi-directional connection between your device and the Dante network

MOUNTING
The MINOS AB22 mounts flush onto walls.  It is dual gang US size so will fit directly into a US dual gang back box.

FACEPLATE
The MINOS AB22 is compatible with the Decora range of face plates.  The different colour options can be seen here

POWER

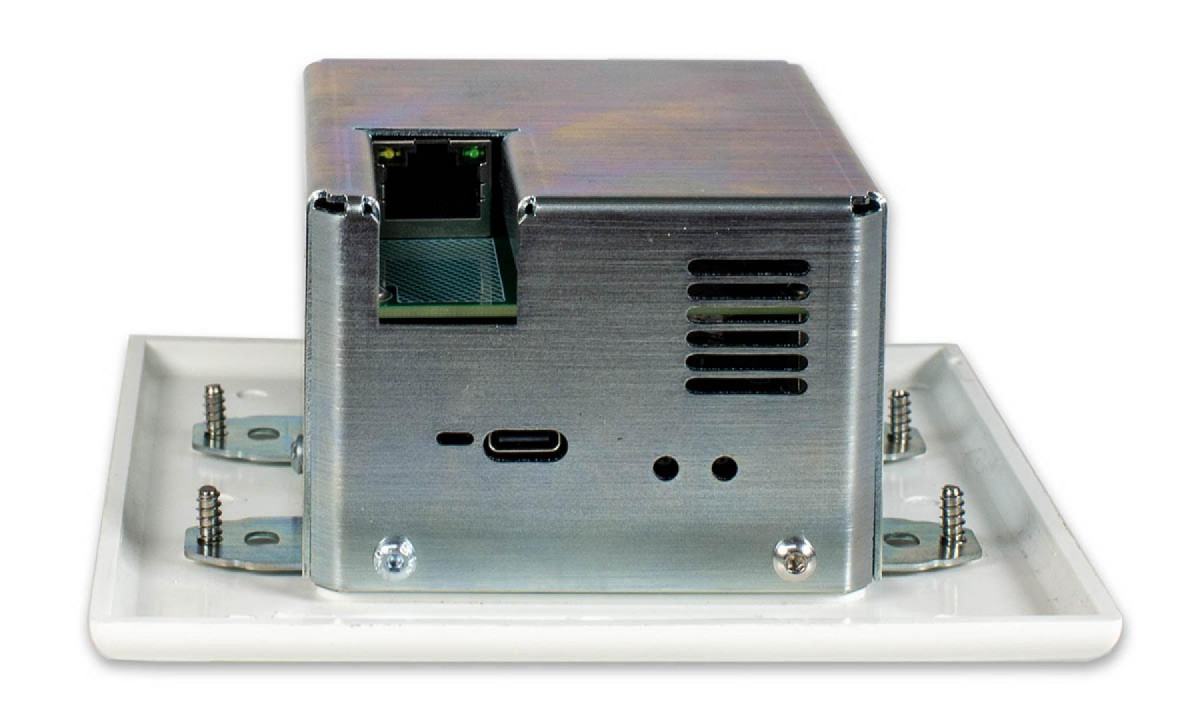

Power is via PoE on a side RJ45 connection.  PoE should be available from your network switch or via an inline PoE injector
