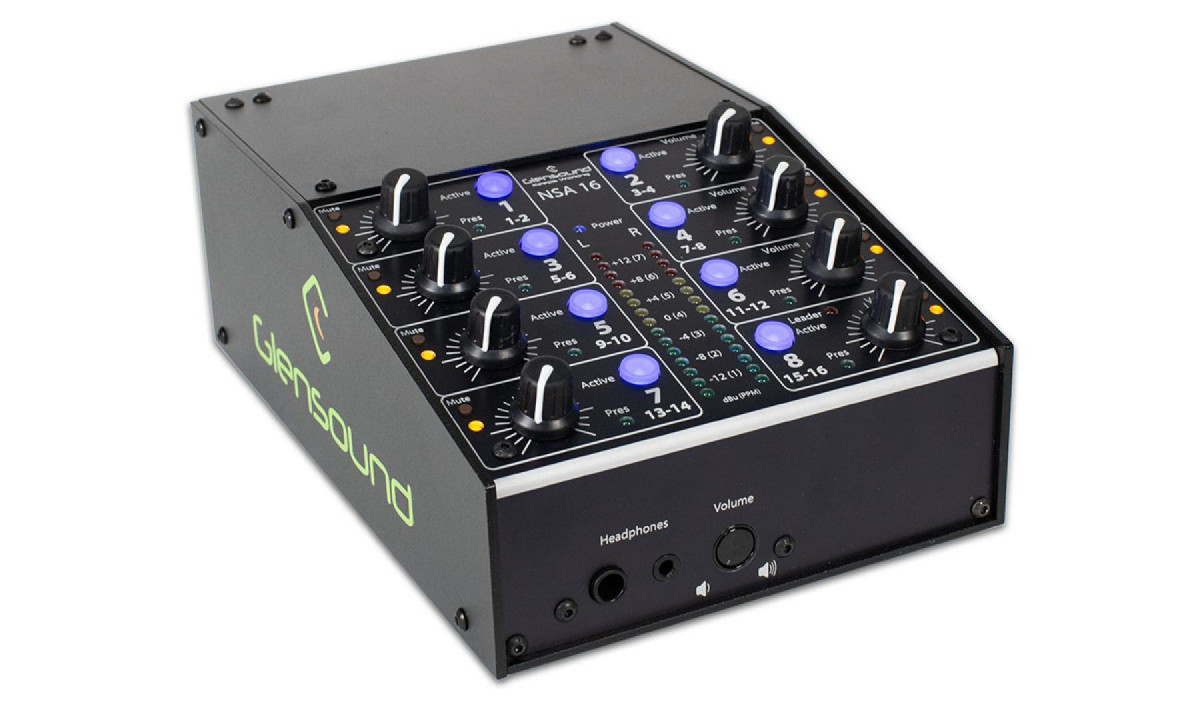

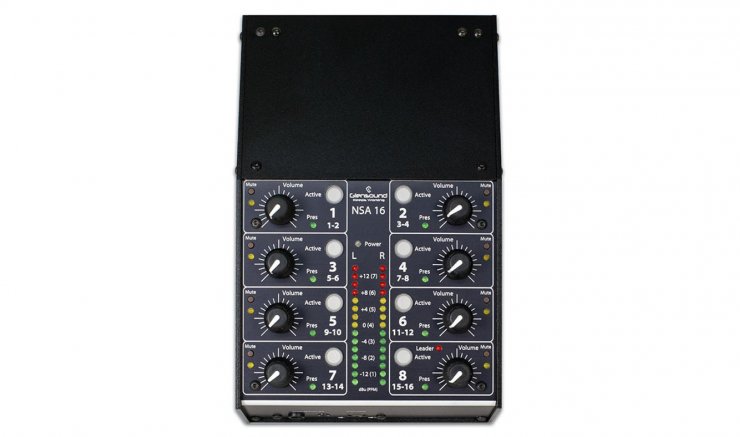

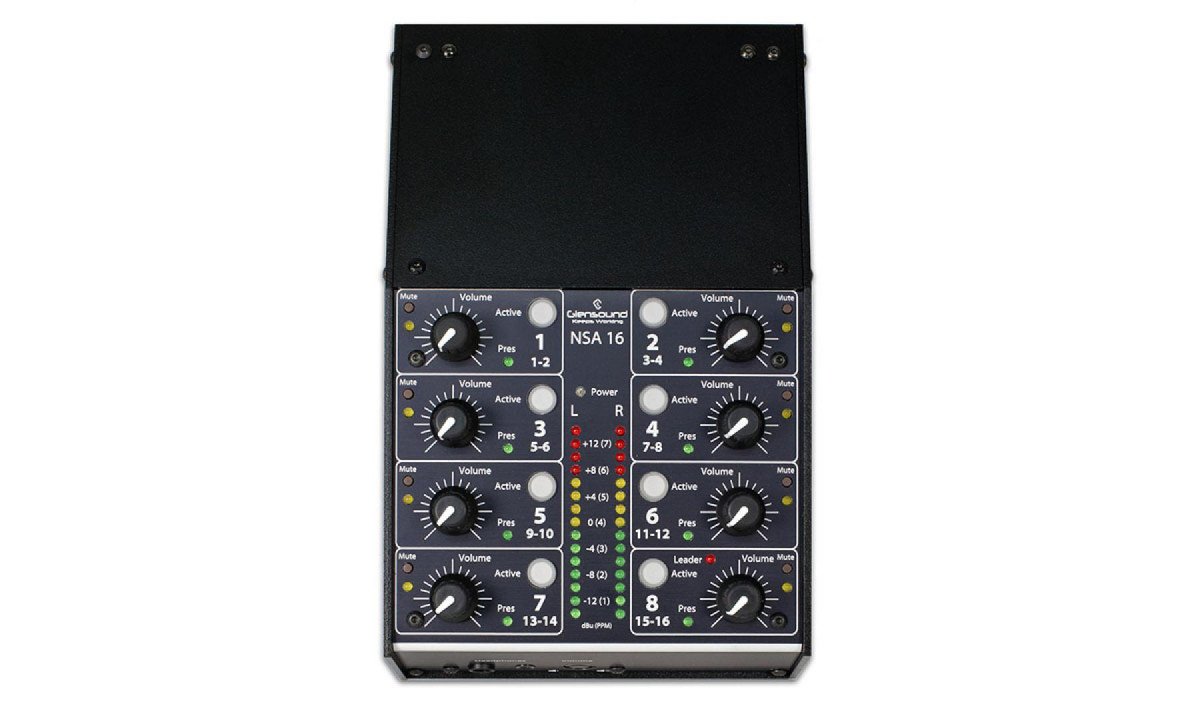

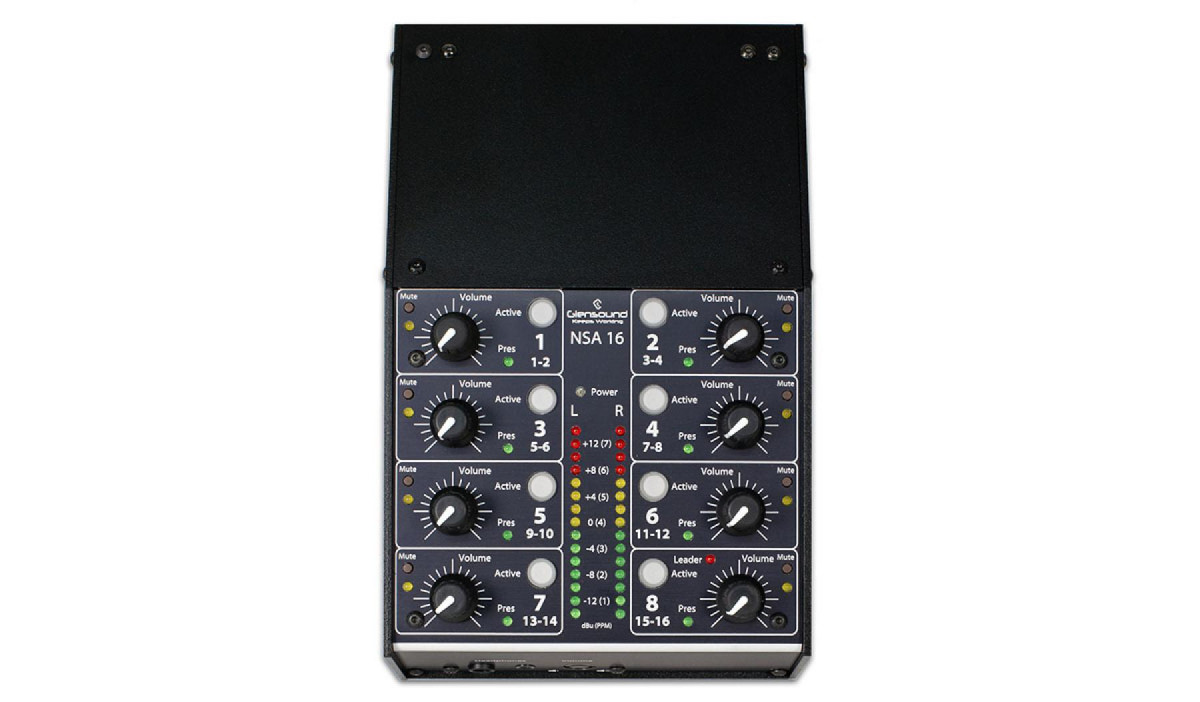

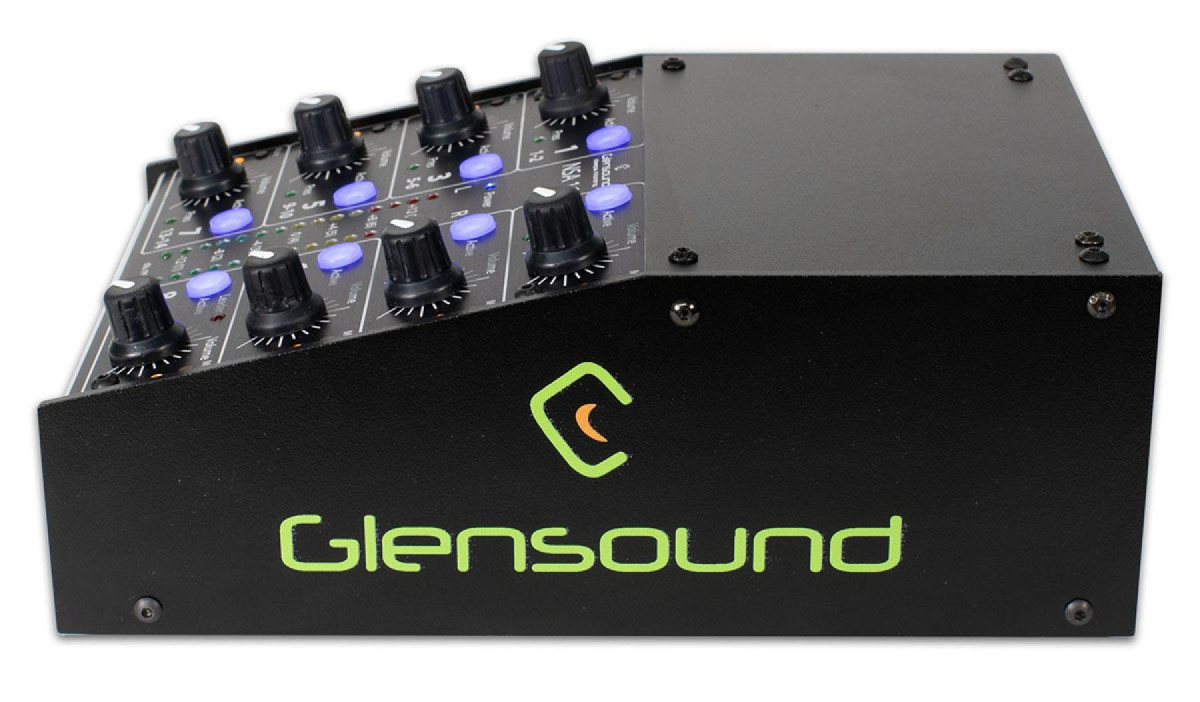

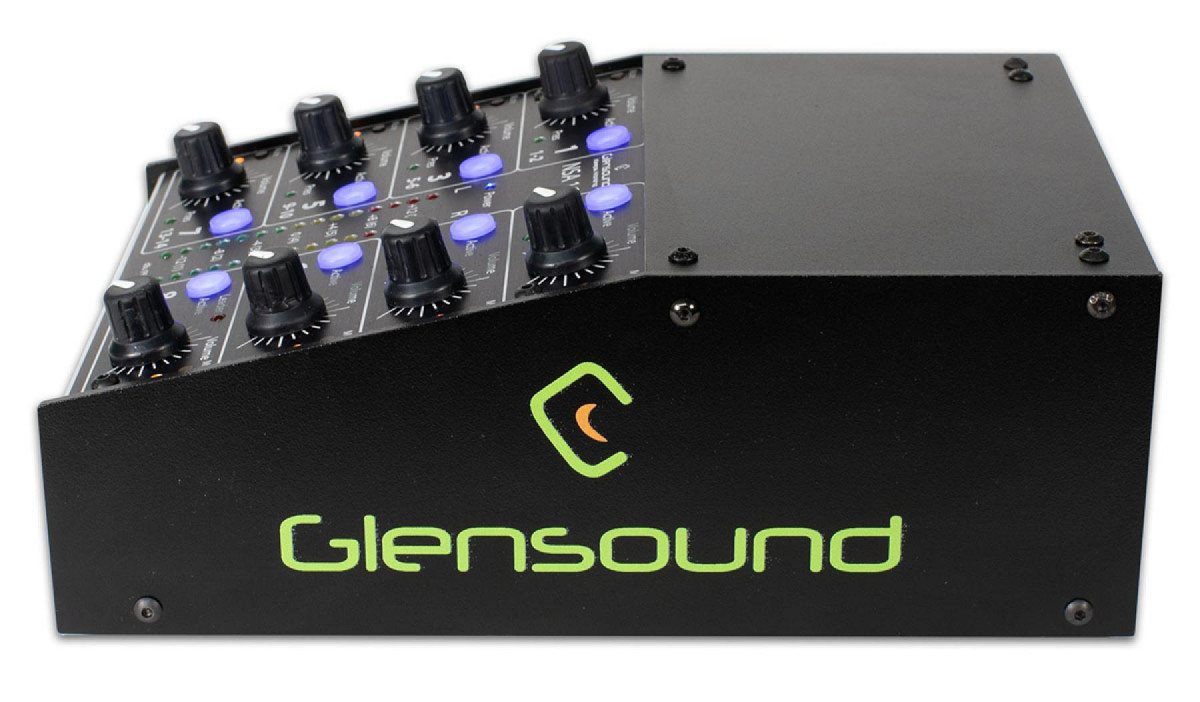

Adjusts the signal level of 16 Dante/AES67 channels

8 Stereo signals

Channel mute with signal present per pair

Primary and secondary Dante

SPF fibre modules available

PoE, Mains or DC powering options

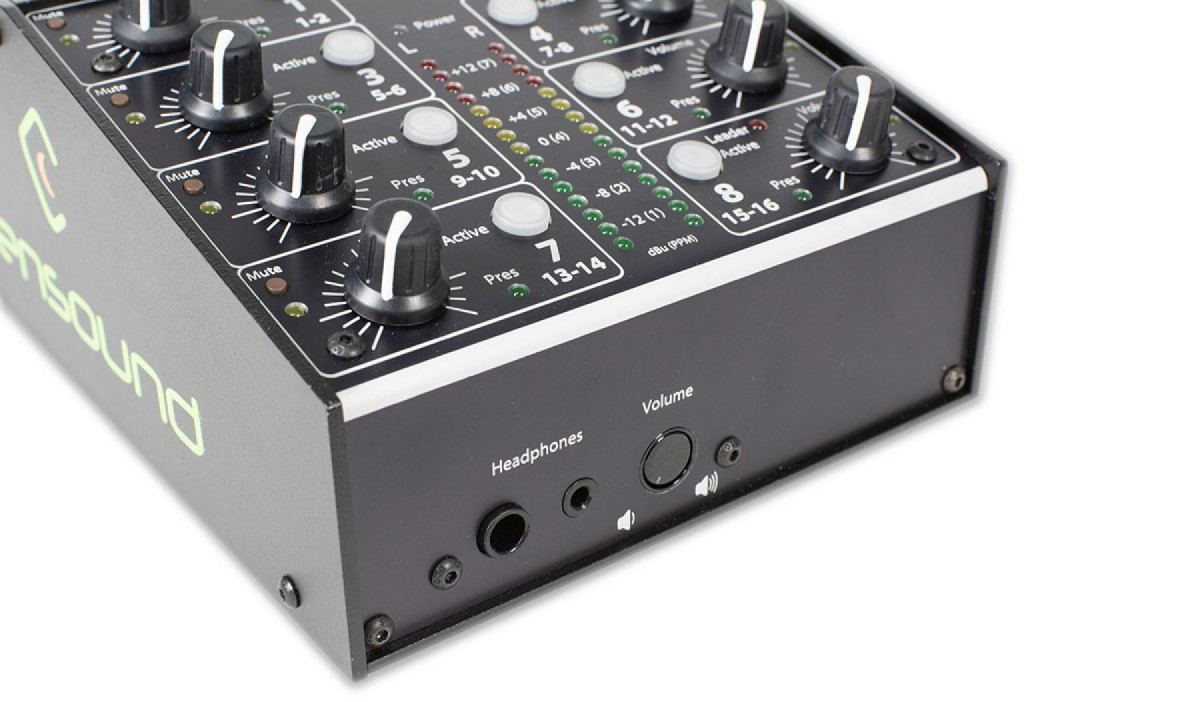

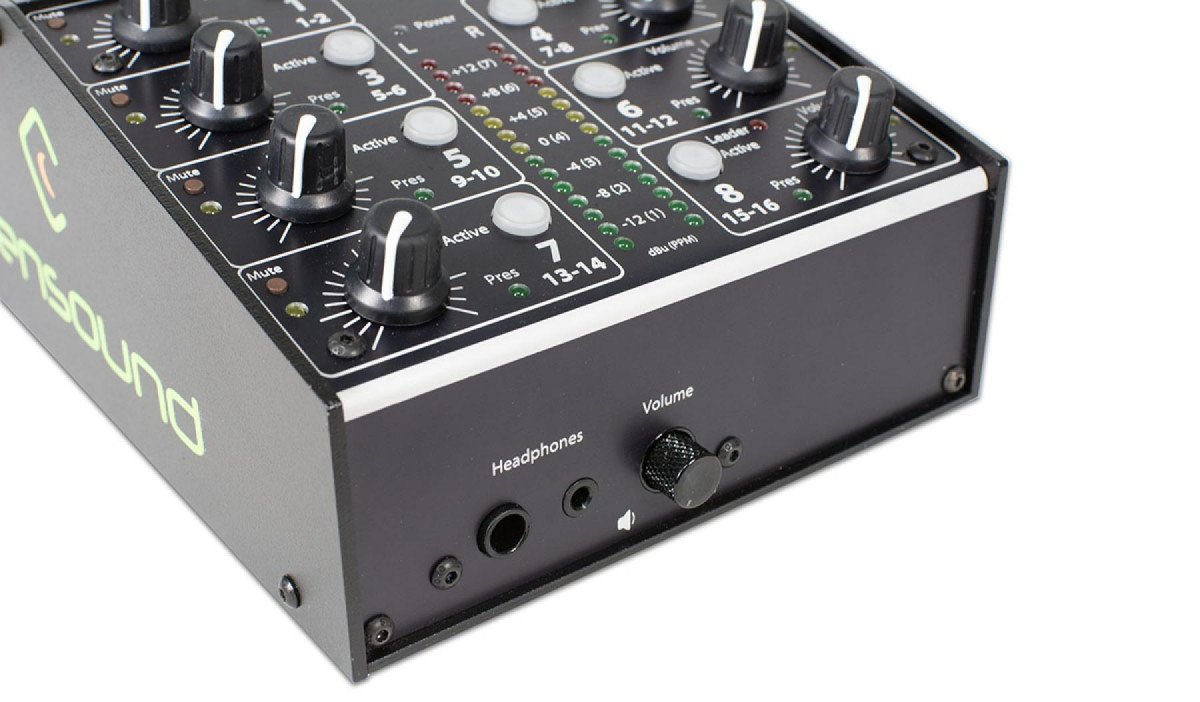

Headphone output for monitoring with sprung recessed pot with 6.35mm, 3.5mm

Recall current level with visual cue.

VU meter to monitor signal levels

Also Available in AES67/Ravenna Version

NETWORK OPTIONS:

DANTE/AES67 VERSION

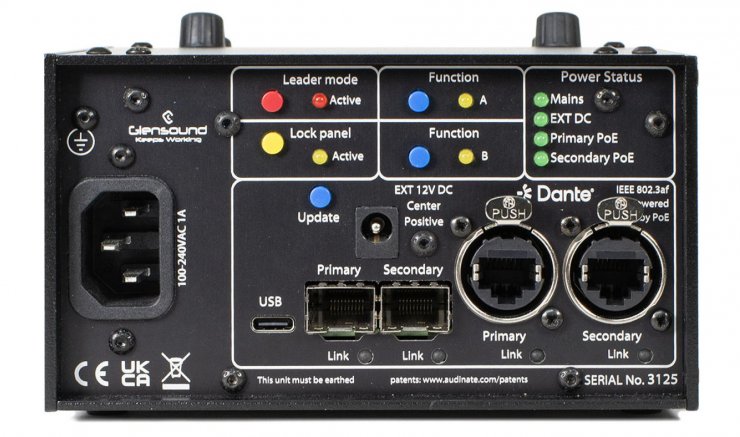

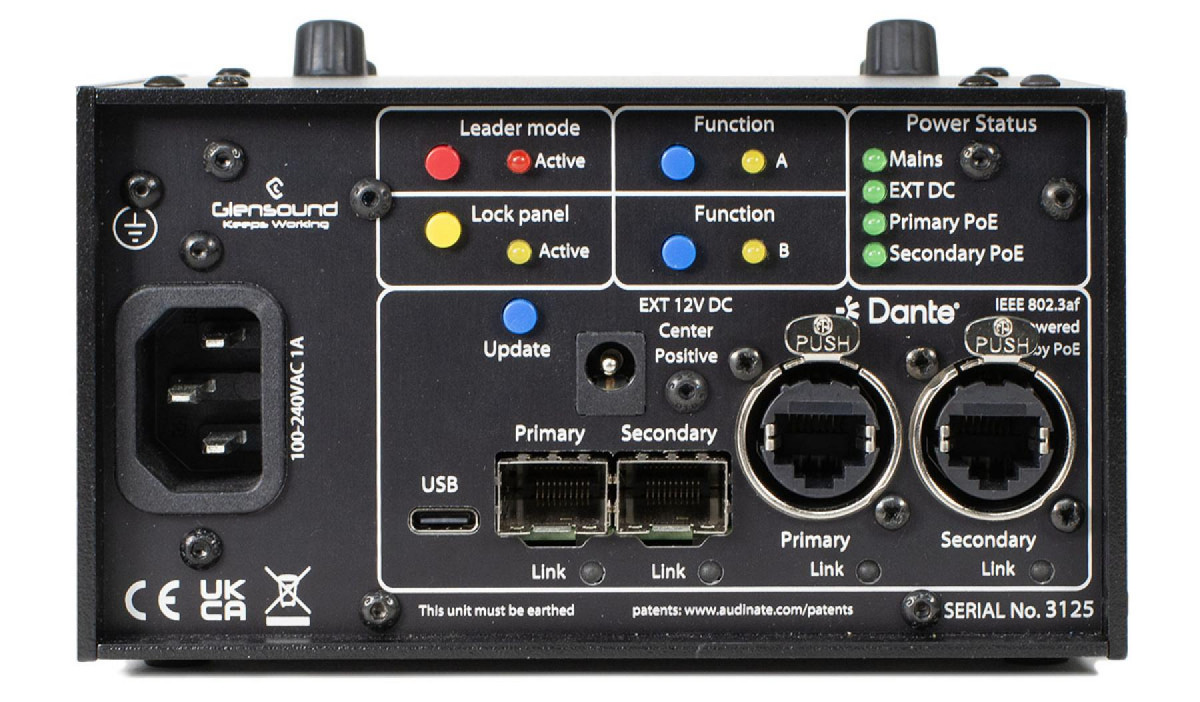

Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
Sample Frequency: 48K
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67

RAVENNA/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
AES67: Yes
High Sample Rates: 44.1kHz - 192kHz
PTPv2: Master or Slave, IEEE-1588-2008 standard
SMPTE ST 2110-30: Yes. Including level C and CX
SMPTE ST2022-7: Yes. Seamless data switching
NMOS IS-04 (Disovery): Yes
NMOS IS-05 Routing): Yes
Remote Control: Web browser or Aneman

• Glensound RAVENNA AES67 quick-start guide v1
