Our Symphony musicians' audio monitoring and microphone amplifier was originally designed to meet the requirements of the Il Novecento Orchestra.
They had been using a similar analogue monitoring system for many years and when they updated their production mixer to a Dante enabled desk they naturally wanted to encompass and embrace the advantages of the network audio system to include their monitoring and musical instrument pre amplifiers.

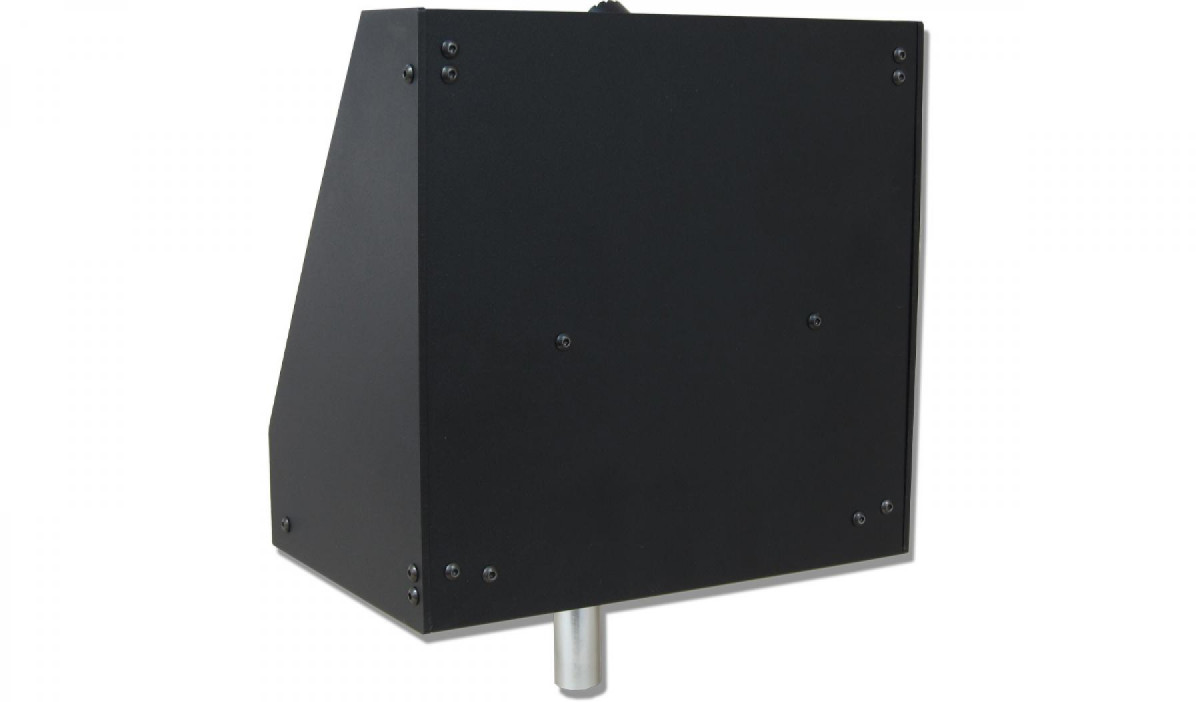

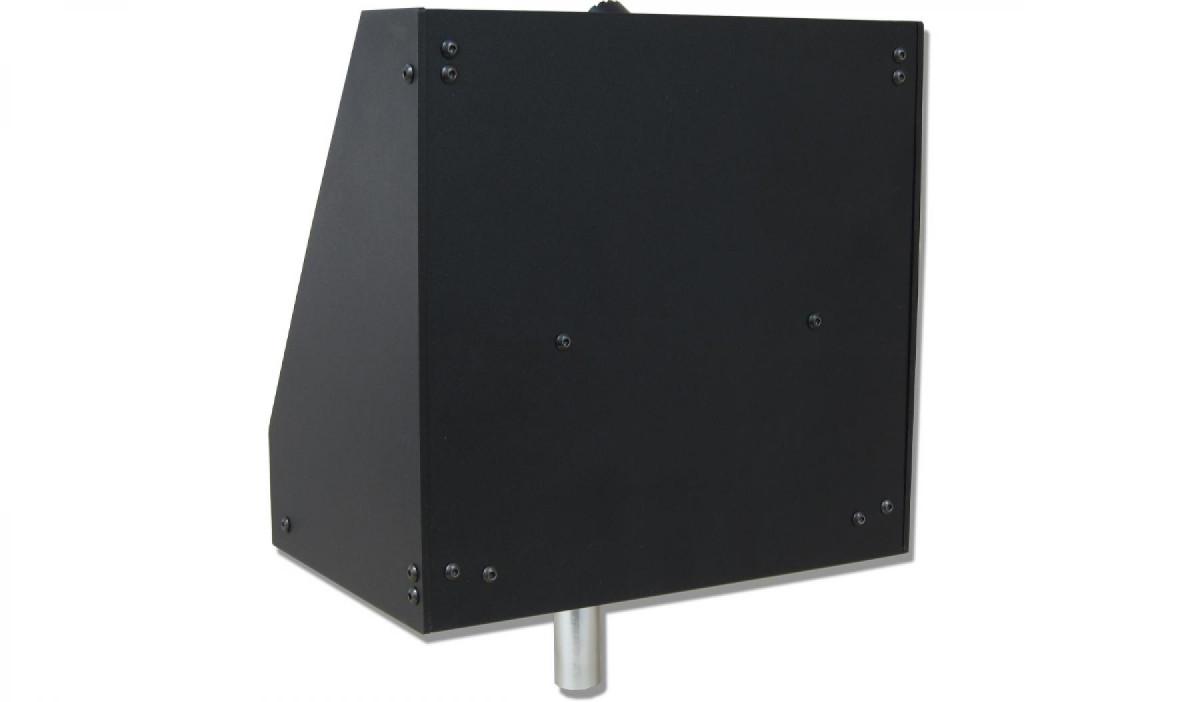

The shape and feature set of the Symphony came from the customer's many years of experience from within the orchestral music industry. The simple controls for the musicians, the microphone amplifier setup hidden away from the musicians, the ability to mount the Symphony on a microphone stand and a clean blank audience facing side of the box were all key required features.
Being a high calibre audio environment naturally the microphone amplifiers and monitoring circuits had to be the best available, which was made possible because of our many years of experience in broadcast audio.
Pro Sound news ran an article in June 2017 highlighting the history & requirements for the Symphony.
The Symphony is designed to be mounted on a microphone stand and placed between 2 musicians.

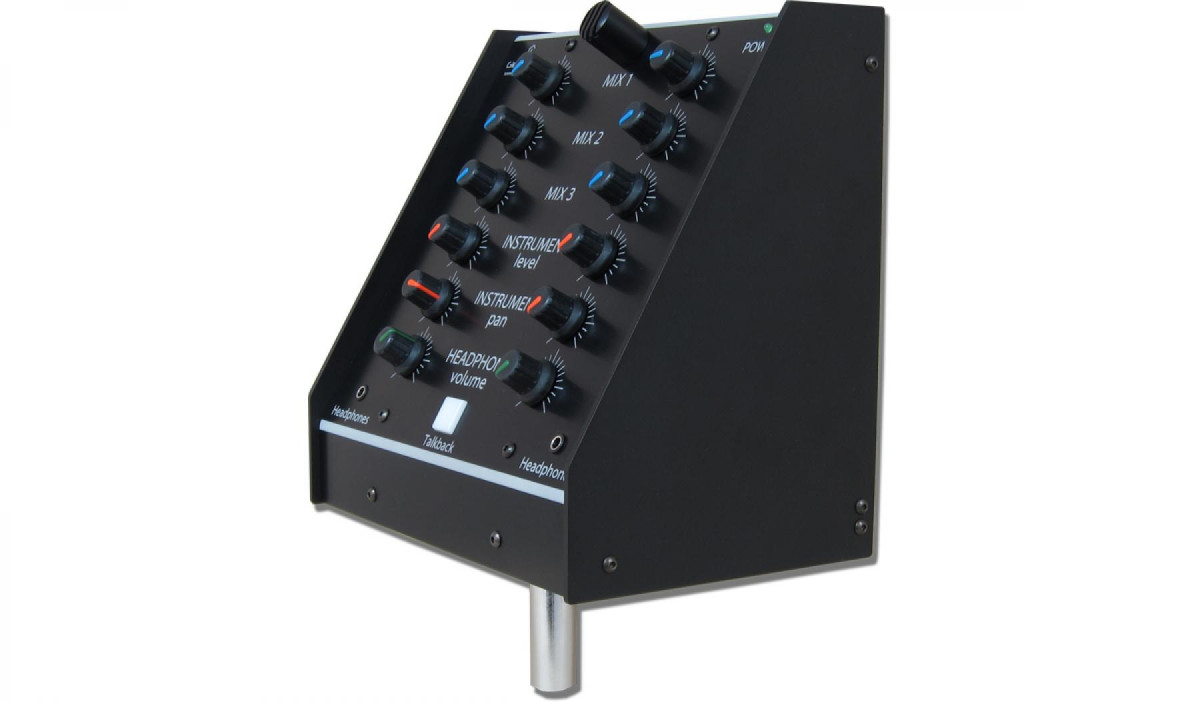

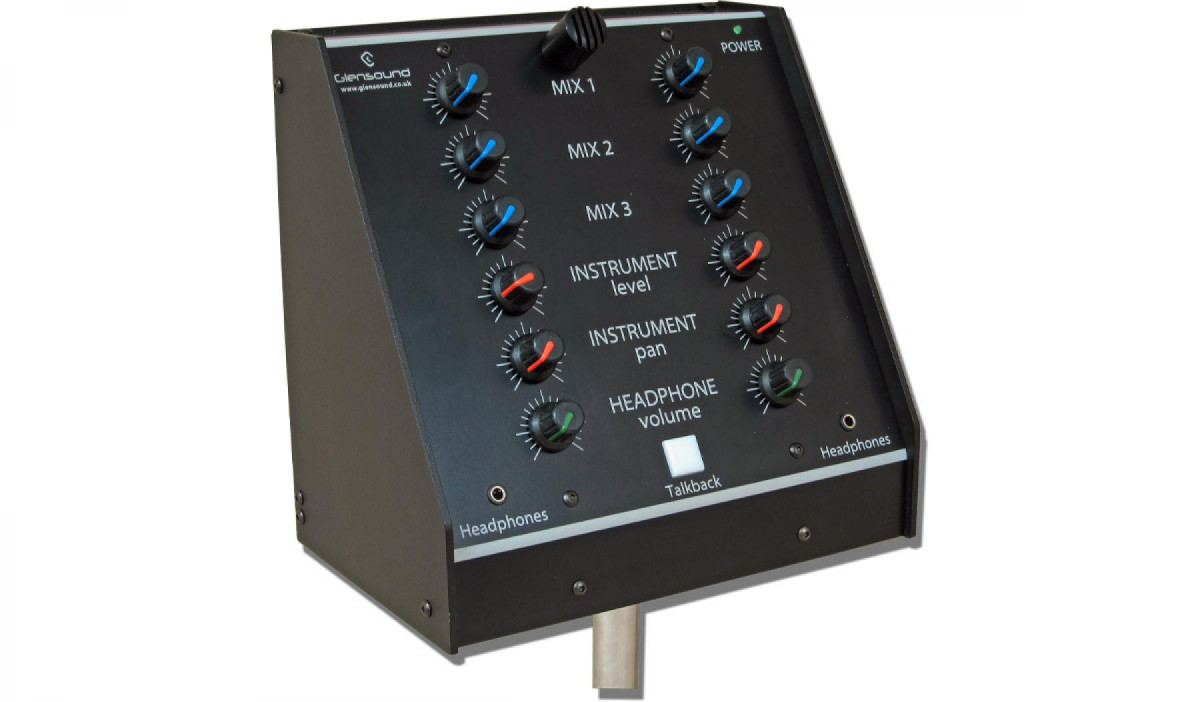

Each musician has a set of monitoring controls on an ergonomically shaped sloping front panel, with a headphone monitoring output jack conveniently placed at the bottom of the controls. The monitoring controls allow each musician to adjust the volume of 3 incoming stereo audio mixes from the Dante network, allowing them to monitor their preferred mix at a level that they are happy with. Each musician is also provided with an instrument headphone volume control, so they can adjust the level of their own instrument in their own ears. A panning control is also provided for the instrument in case they only wish to monitor their own instrument in one ear or ofF centre. Finally an overall volume control is provided for each musician to allow one single control to adjust the overall volume of the whole mix.
On the front panel mounted centrally between the 2 sets of monitoring controls and at the top of the panel is a talkback microphone, at the bottom of the panel and within easy reach of each musician is a push to talk (PTT) switch that turns the talkback microphone on. This talkback circuit is very useful for communications between the musicians and sound control room.

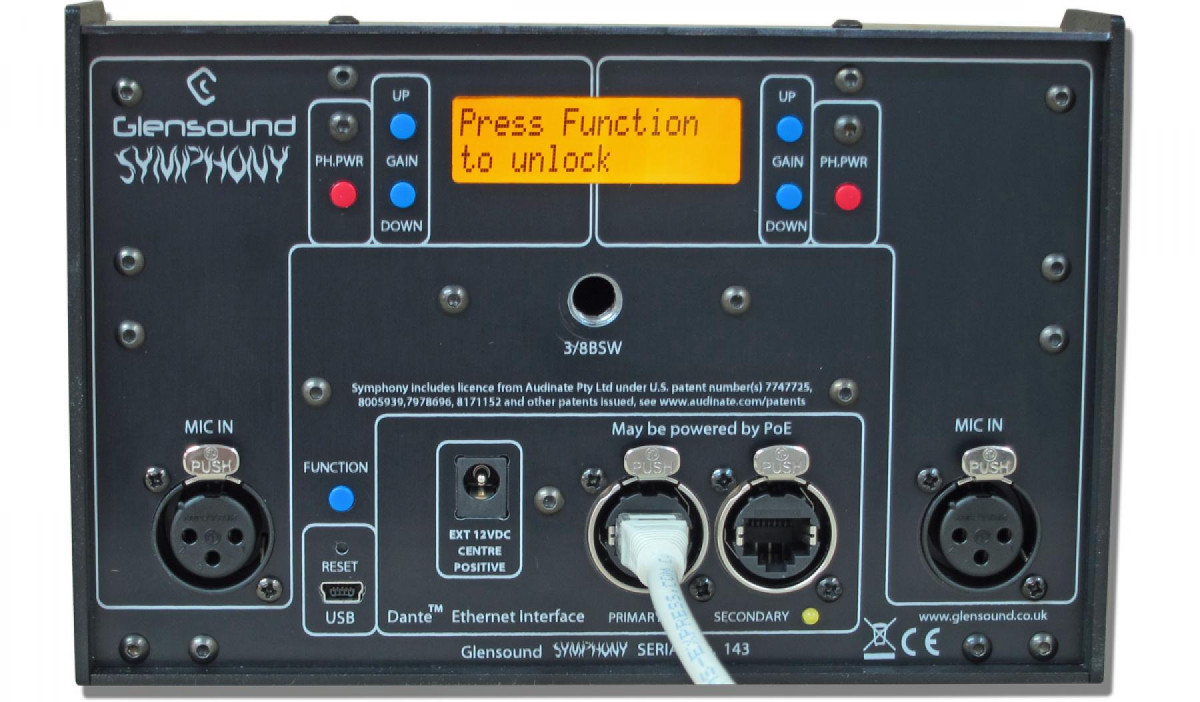

The bottom panel contains the 2 microphone inputs, 1 on each side of the unit allowing the microphone cable to enter the box in a tidy and organised way. The panel also contains simple engineering setup controls to adjust the microphone input gain, turn phantom power on/ off and also turn the internal compressor limiter circuit on/off. Connections to the Dante/ AES67 network are also located on the bottom panel, so like the microphone cables the network cables can easily be routed safely down the microphone stand.
There are 2 Dante network interfaces allowing a fully redundant network to be set up with primary and secondary Dante networks. Both of these interfaces are on Neutrik Ethercon connectors and both accept Power Over Ethernet (PoE).
No of Inputs: 2
Input Type: Neutrik 3 pin XLR
Input Impedance: Mic: 2k4
Equivalent Input Noise: 127dBu (22Hz-22KHz) RMS A weighted Terminated with 300 Ohms)
Frequency response: -2dBu @25Hz flat @50Hz till 22kHz (+/- 0.25dBu).
Distortion at +8dBu: 100Hz = 0.023%
10kHz = 0.014%
Line Up Gains: Dynamic Mic: 58dB
Mic + Phantom Power: 35dB
Gain Range: Mic: -30 to +15dB
Max Input Before Clipping (@line up with compressor turned on):
Dynamic Mic: +10dBU,
Headphone Impedance: 16-1000 Ohm (auto output level to match impedance)
Headphone Noise: -76.6dB @ line up (residual noise)
Headphone Frequency Response: >-0.1dB 22Hz to 22kHz
Headphone THD + Noise (Ref +8dB): 0.008% @ 1kHz
Connection: 3.5mm stereo jack plugs
Headphone Volume Pot Range: +10dB to Off
Maximum Headphone Output: +16.8dB into 600 Ohms
DANTE/AES67 NETWORK INTERFACE
Physical: 2 x Neutrik Ethercons Cat6 RJ45s
Type: Fully redundant Primary & Secondary circuits
Sample Frequency: 48k
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67
PoE: Can be powered by PoE on either Copper network interface
Consumption: 12 Watts
Front Panel Power On LED: Blue
External DC input: 2.5mm Barrel, Centre +Ve, 9- 15Volts, 1 Amp
Size: 185 x 122 x 182mm (WxDxH)
Mechanics: All aluminium construction, anodised and laser etched, powder coated sides
Shipping Carton: Rugged Export Quality cardboard carton 610 x 420 x 170mm (WxDxH)
Handbook: Available via download
RJ45 Network Cable: 1 off 2 Metre
Latest Version of the Brooklyn Module Firmware (Supports DDM):
Latest Version Of The Brooklyn Module Firmware is v126.96.36.199
The download location of the files for Brooklyn Module v188.8.131.52 is:
Please note these addresses are locations of the files and not web pages, if you put the above address in your browser it should automatically download the file.You may see ‘page not found’ but all that you actually need is for the the file to be downloaded.
